NOTE:
The Module will normally come already installed in the cart when shipped. However if
the Module is removed for any reason, the steps below are provided to guide in
performing the docking process.
DOCKING MODULE INTO ZS3 ULTRASOUND SYSTEM
1. Place the Module in the docking area on the cart.
2. Slide the module to the back, ensuring the docking connector is properly aligned.
3. Latch in the side locking mechanisms to secure the Module in place.
4. Reinstall the front cosmetic cover. NOTE: the system can’t be powered on
without the module and module cover in place.

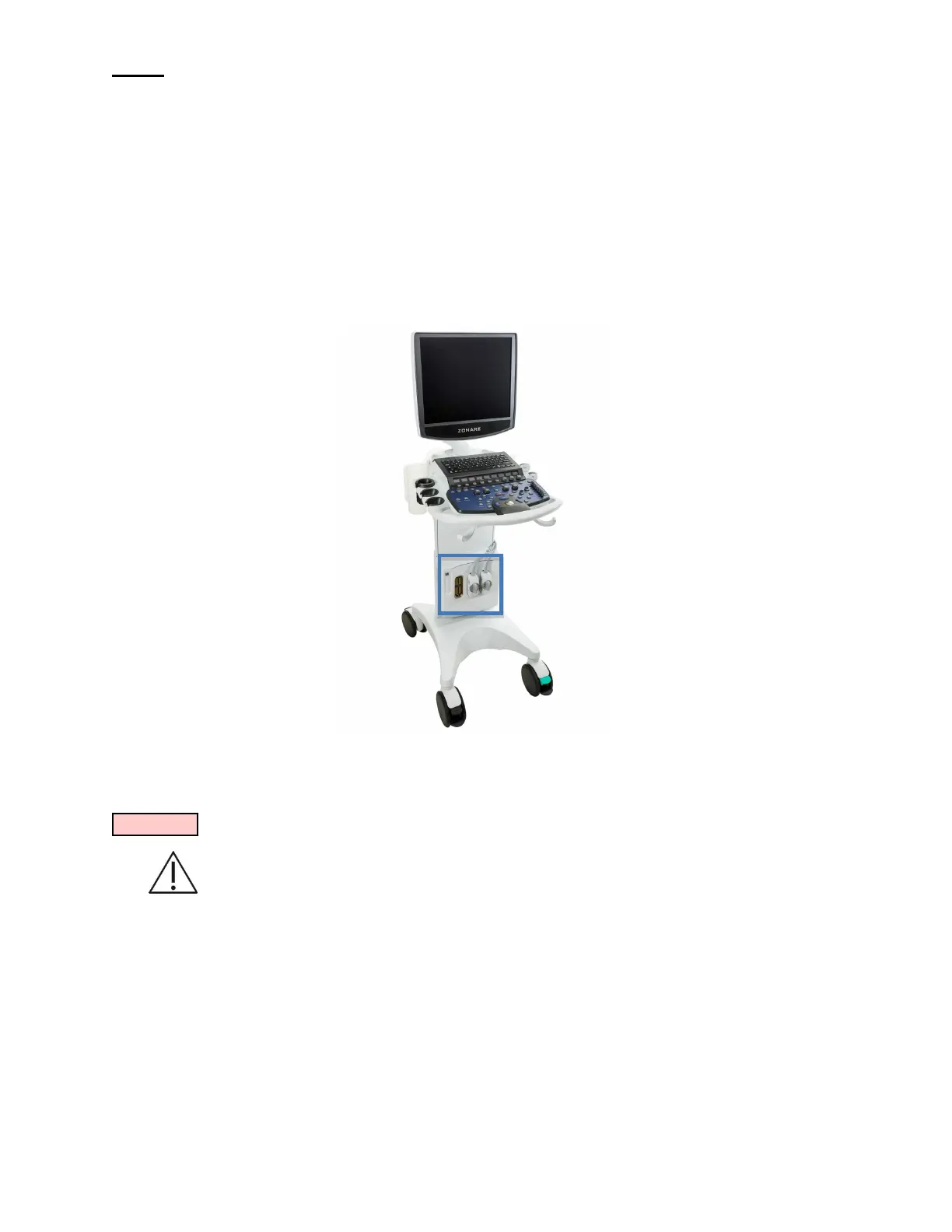

Figure 5.10-ZS3: Module Docking in Cart
WARNING
To maintain the integrity of the electronic equipment within the ZS3
ultrasound system, it is critically important that a specific sequence be
followed at all times, for turning ON or OFF system power. The sequences
listed below should always be followed.
ZS3 System Verification
1. If the Z-PAK battery pack option is installed, the battery pack circuit breaker
located at the back of the battery pack should already be in the closed position. If
it is not, gently push the plunger in to close the circuit before applying AC to the
To Next Page
