cart.

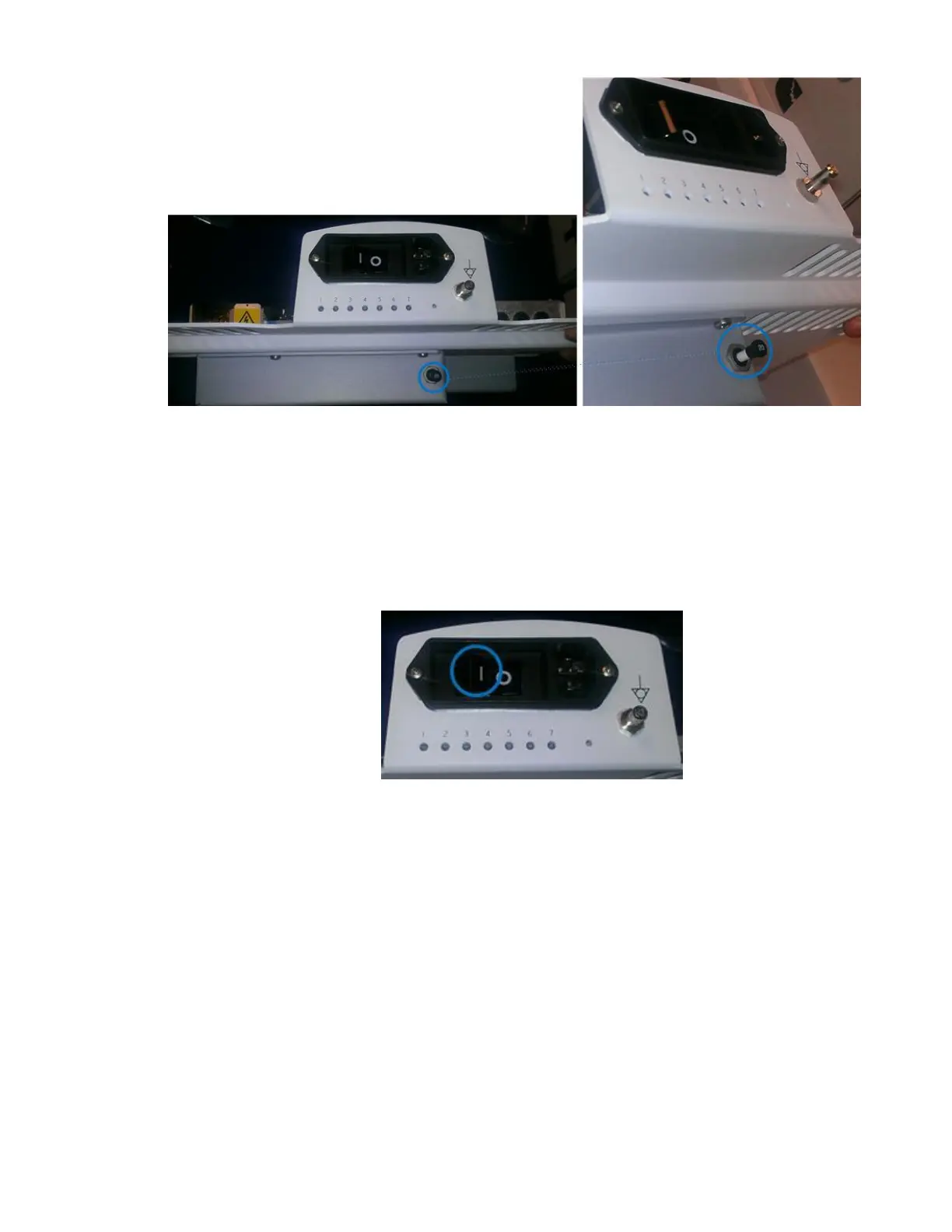

Figure 5.11-ZS3
LED#3 will flash indicating the Cart Power microcontroller is operating.
2. Verify the socket of the AC power cord is fully inserted into the inlet in the back of
the cart.
3. Connect the plug of the AC power cord into a Hospital Grade receptacle.
4. Make sure the AC Main Circuit Breaker on the ZS3 System is in the “1” (ON,
pushed in on the LEFT) position (see illustration below).
Figure 5.12-ZS3
LED Status
1. LED #1 should illuminate indicating AC power is present.
2. LED #2 will flash if the cart battery is installed and charging.
3. LED #5 will illuminate indicating the main 24VDC supply is On
NOTE: The ZS3 ultrasound system has the ability to be powered by AC or
battery (IF the Z-PAK battery pack “Option” is ordered). When fully
charged the battery should allow for normal system operation up to 1.5
hours.
