5. Locate the grey power button at the top/right on the module. Press and release

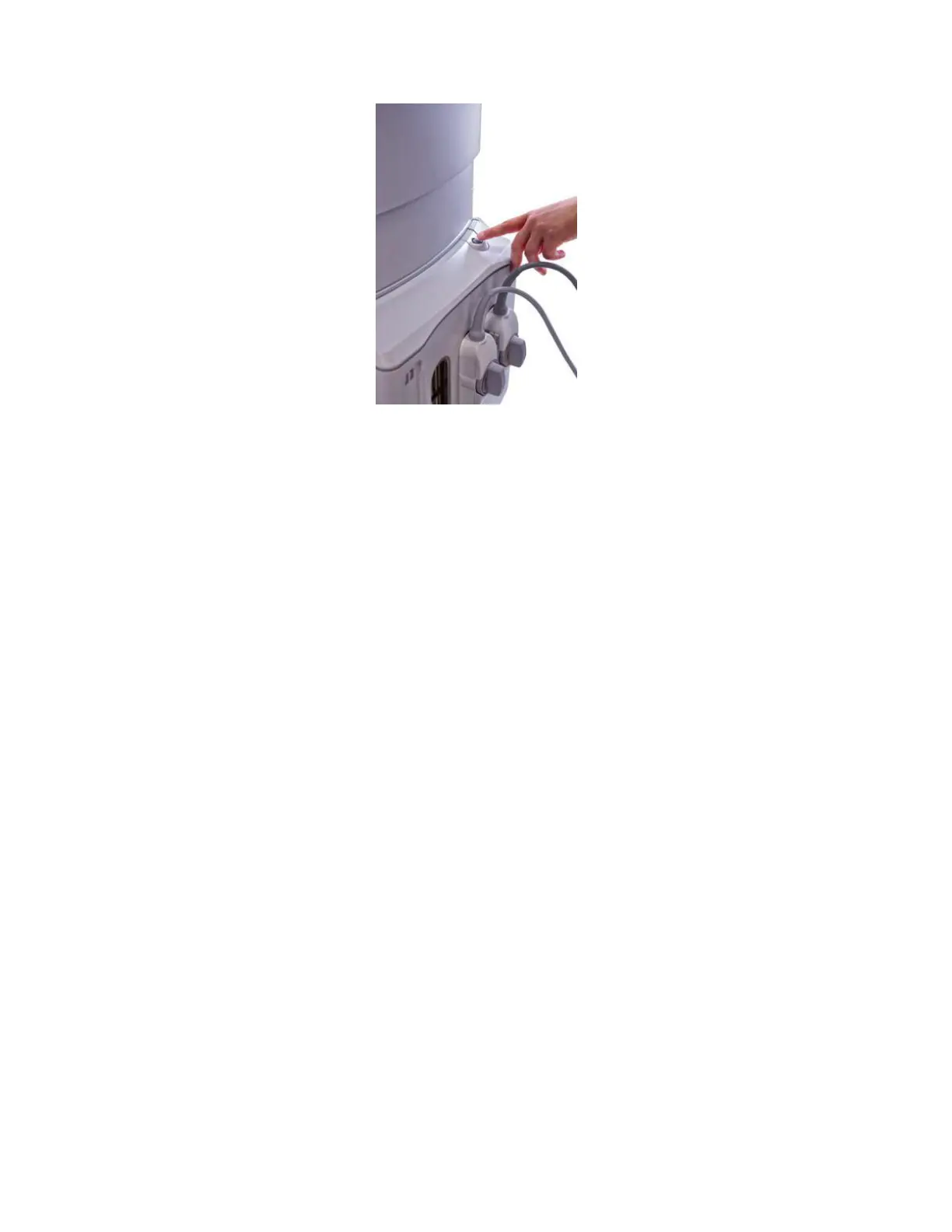

the On/Off button to power on the ZS3 ultrasound system (as shown below).
Figure 5.13-ZS3
On/Off Button Status
The Green backlight for the button will begin to flash as the system boots-
up.
Once the system is booted, the Green Backlight will be steady On.
Abnormal conditions will be indicated with an Amber colored backlight.
6. Verify that the System is functioning correctly by performing a basic test. This
test is comprised of the following:
Attach a transducer (if not already connected)
Verify LCD display is functioning correctly by watching the boot and verifying
that normal imaging is displayed after fully booted.
Verify Audio from the Display assembly – Enter PW, turn up the PW Gain and
increase volume
Verify that the User Interface keys are functioning correctly
Test USB ports on front of system
Test and Verify Network Connectivity (if applicable)
Test and Verify USB Peripheral Connectivity and Functionality (if applicable)
7. Verification is complete – return system to normal operation.
