ZS3 Service Manual Page 235 of 295
Cart Battery – Removal/Replacement
Required Parts
P/N: 85031-00 Assy, Battery Pack, Gen II Cart
Required Tools/Equipment
#2 Phillips Screwdriver
4mm Hex Key
Overview of Procedure
1. Removal Battery Pack
2. Re-installation of Battery Pack
3. Verification of system operation
Battery Pack Removal:
1. Place AC circuit breaker, located at the rear of the system, in the “OFF”
position.

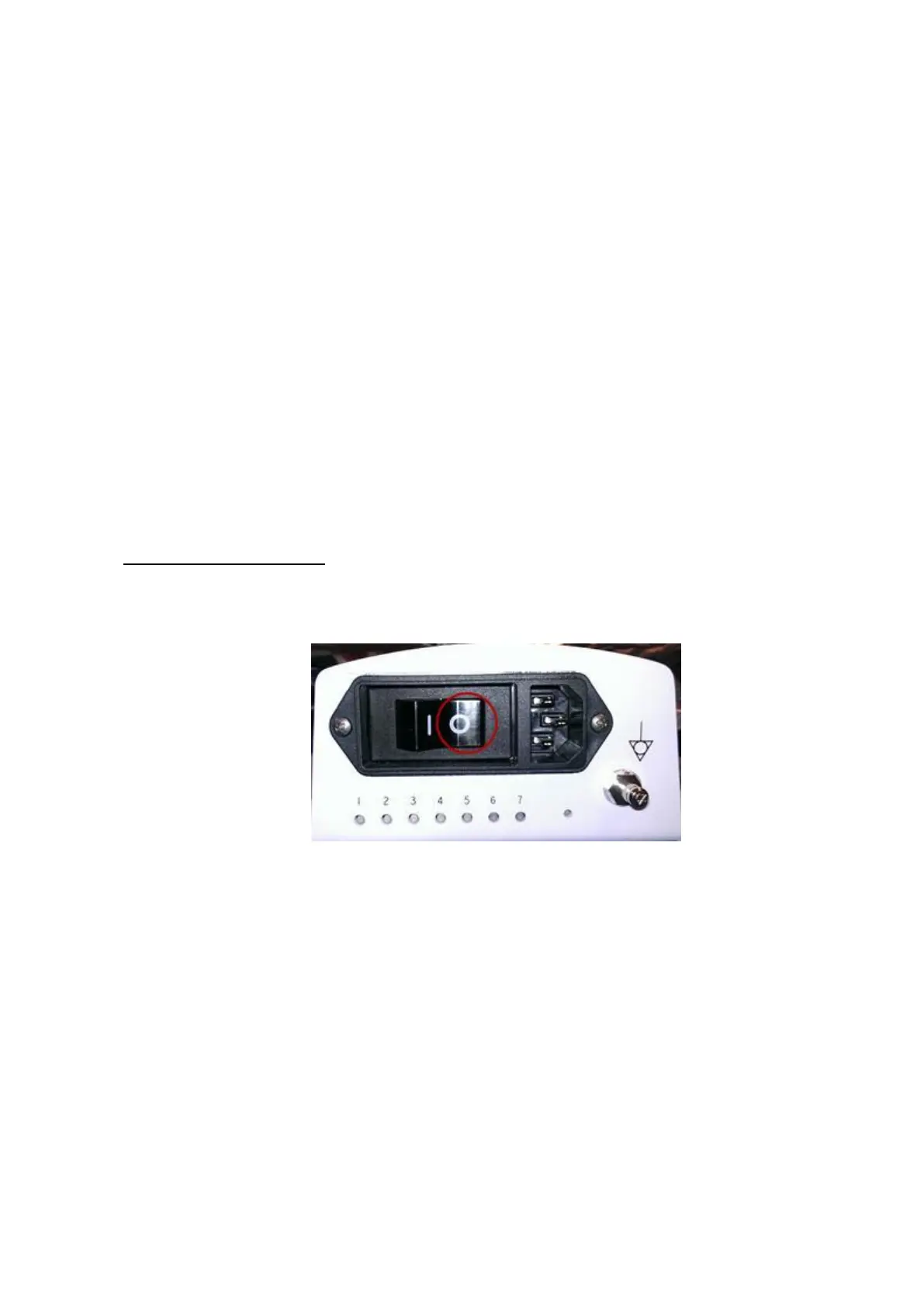

Figure 19.22-ZS3
2. Disconnect the main AC power cord from the rear of the system.
3. Put the User Interface in the highest position.
4. Set the front caster brakes to prevent system from rolling.
5. The Battery Pack is located under the system. Ensure that the display is in
horizontal position. For the easiest access, tilt the entire system forward
until is in horizontal position, resting on the front-side handles. Rest the
front-side handles on foam or cardboard if available.
6. Remove the four (4) Phillips-head screws that are retaining the Battery Pack
to the bottom of the system.
