ZS3 Service Manual Page 135 of 295
14 Peripherals & Accessories
Black & White Printer

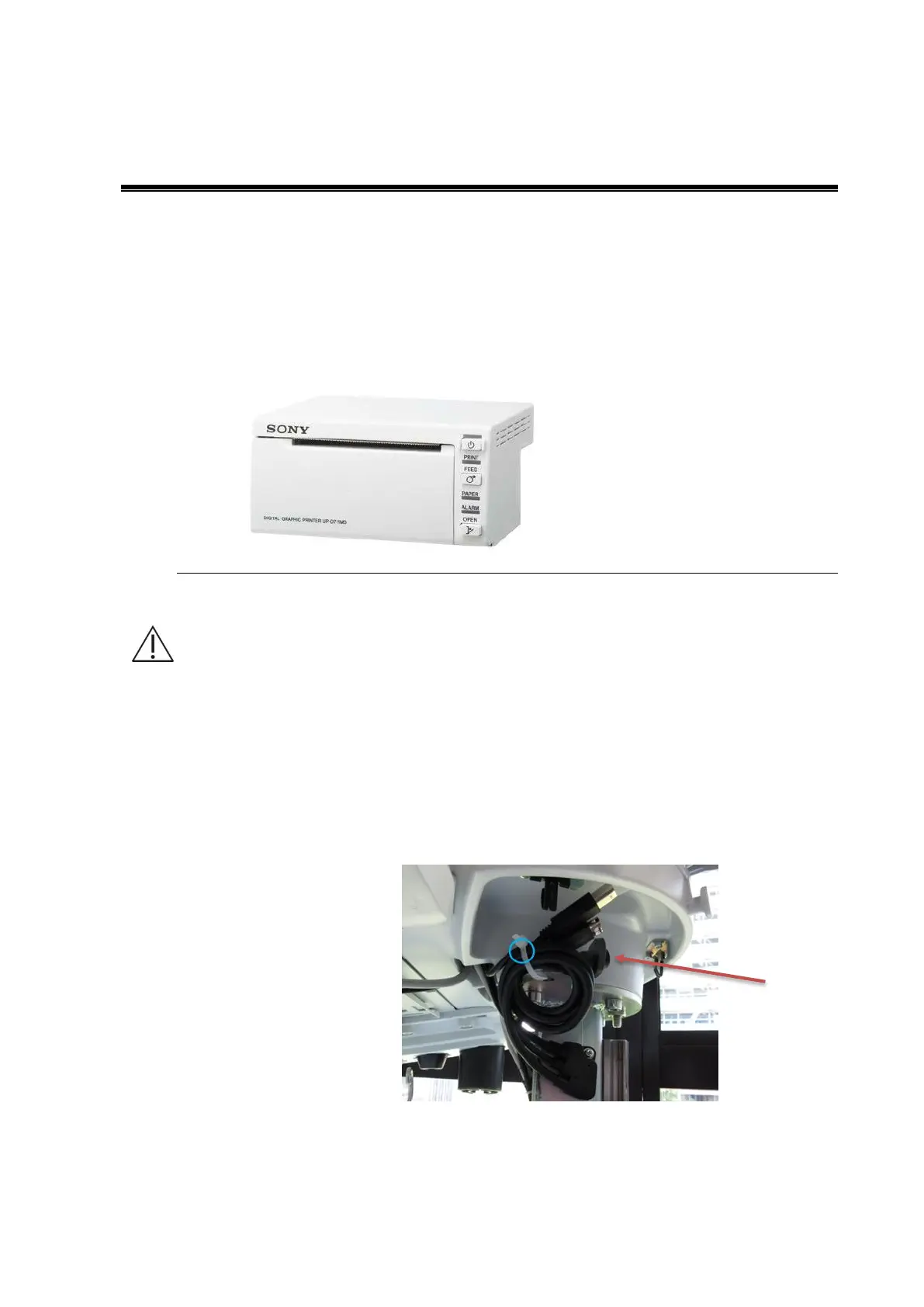

The procedure provides instructions to install and setup the SONY UP-D711MD, Sony
UP-D897, and Sony UP-D898MD_X898MD Black and White printer on the ZS3
system
Figure 14.1-ZS3
Prior to beginning the initial mounting/installation, ensure the system is
powered-down (Backlight for On/Off button will be dark.).
UNPACKING AND MOUNTING INSTRUCTIONS
1. Remove the printer and all installation hardware from their packaging.
2. Drop telescoping cover to find preinstalled printer power and USB cables. Cut
cable-tie to release their free ends and route them forward, and use the cable
ties to fix the ultrasound gel warmer to the original place. Replace telescoping
cover.
Figure 14.2-ZS3
Cable of the
ultrasound gel
To Next Page
