Mechanical Inspection
Ensure wheels and brakes function properly
Raise and lower the Cart height adjuster (pull release lever located on the
right of the system), to verify smooth operation and positive locking.
Ensure the LCD display monitor rotates and adjusts properly
Ensure the ZS3 module is securely attached in the Cart.
Immediately report any mechanical discrepancies to Mindray/Zonare.

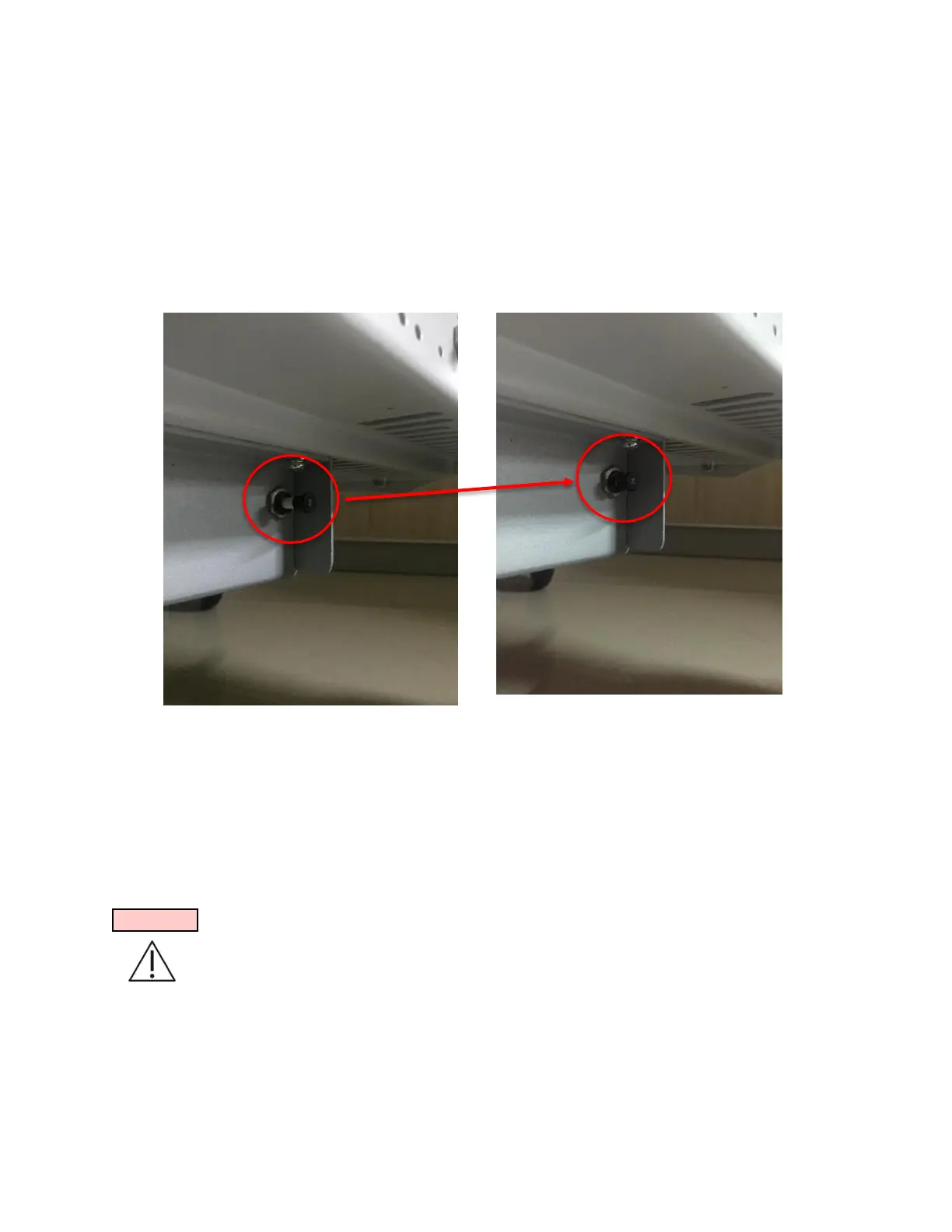

The system is shipped with the ZPAK circuit breaker in the “Off” position. If it
is not in the “Off” position, push the plunger in before connecting to AC.
Figure 5.9-ZS3
System Installation
1. Check to ensure all peripherals, software level, and serial numbers correspond
with sales order. Make note of any missing items or discrepancies, and
immediately report to Mindray/Zonare.
WARNING
To prevent possible damage to the electronics of the system from
condensation, the following warning must be observed:
If the system has been subjected to an environment during
shipping/transport that differs greatly in temperature and/or humidity, from
the environment where it has been moved for installation/intended
To Next Page
