Mindray Zonare ZS3 Service Manual

ZS3 Service Manual
Page 48 of 295

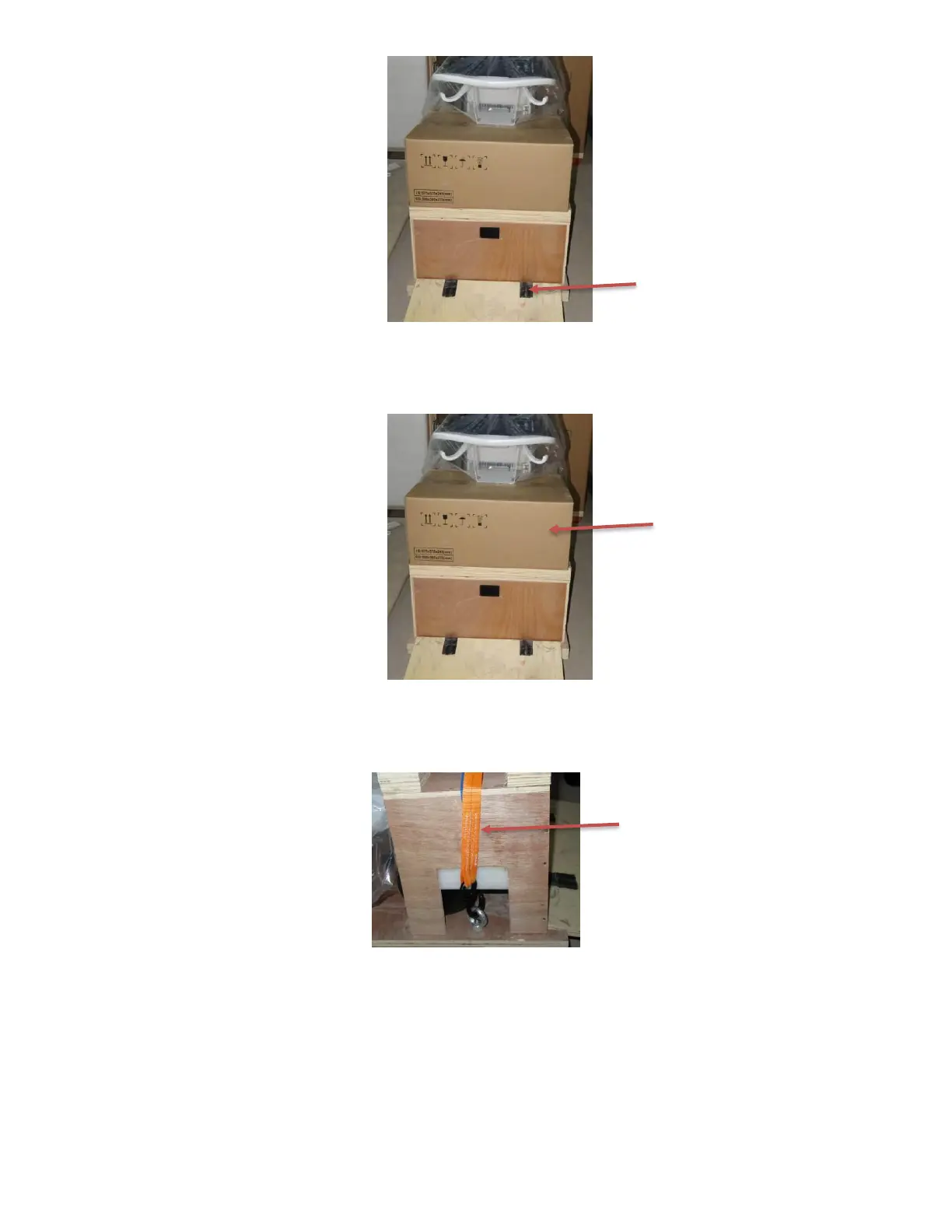

Figure 5.6-ZS3
11. Remove the accessory box, containing front cover and left/right storage box,
upon the front support board.
Figure 5.7-ZS3
12. Remove the puller strap around the front support board according to the puller
strap indicator label, and remove the front support board.
Figure 5.8-ZS3
13. Inspect the entire ZS3 system for damage, paying close attention to the LCD
display on the Cart.
14. Move the ZS3 system to the installation area.
Accessory
box
Velcro
Puller strap
