Mindray Zonare ZS3 Service Manual

ZS3 Service Manual Page 229 of 295
Display Arm w/Cables – Removal/Replacement
Required Parts
 88016-00 Display Arm w/Cable
 Small tie-wraps (2)
Overview of Procedure
 19” Display - Removal/Replacement
 Removal of the Display ARM
 Installation of Display ARM
 Verification of LCD Display, Speakers, and Microphone
Required Tools/Equipment
 Long handled flat-blade screwdriver (3mm width blade, 12” shaft, thin blade)
 #2 Phillips Screwdriver – Stubby
 #1 Phillips Screwdriver
 9/32” Nut Driver or wrench
 7/64” Allen Wrench
 Wire Cutters
Procedure
Opening Chassis Cosmetics:
1. Ensure the system is powered “OFF”.

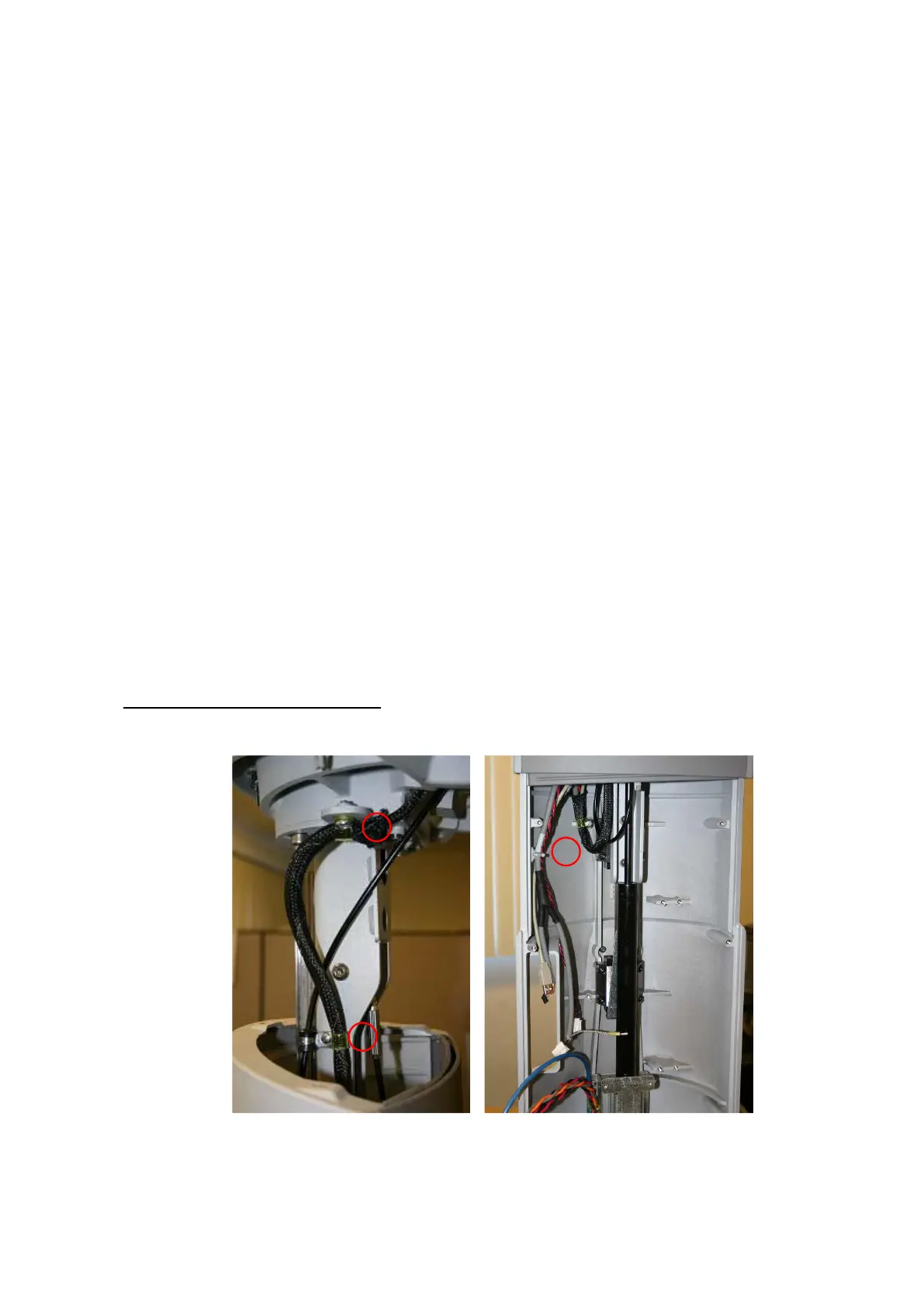

Figure 19.14-ZS3
