Mindray Zonare ZS3 Service Manual

ZS3 Service Manual Page 161 of 295

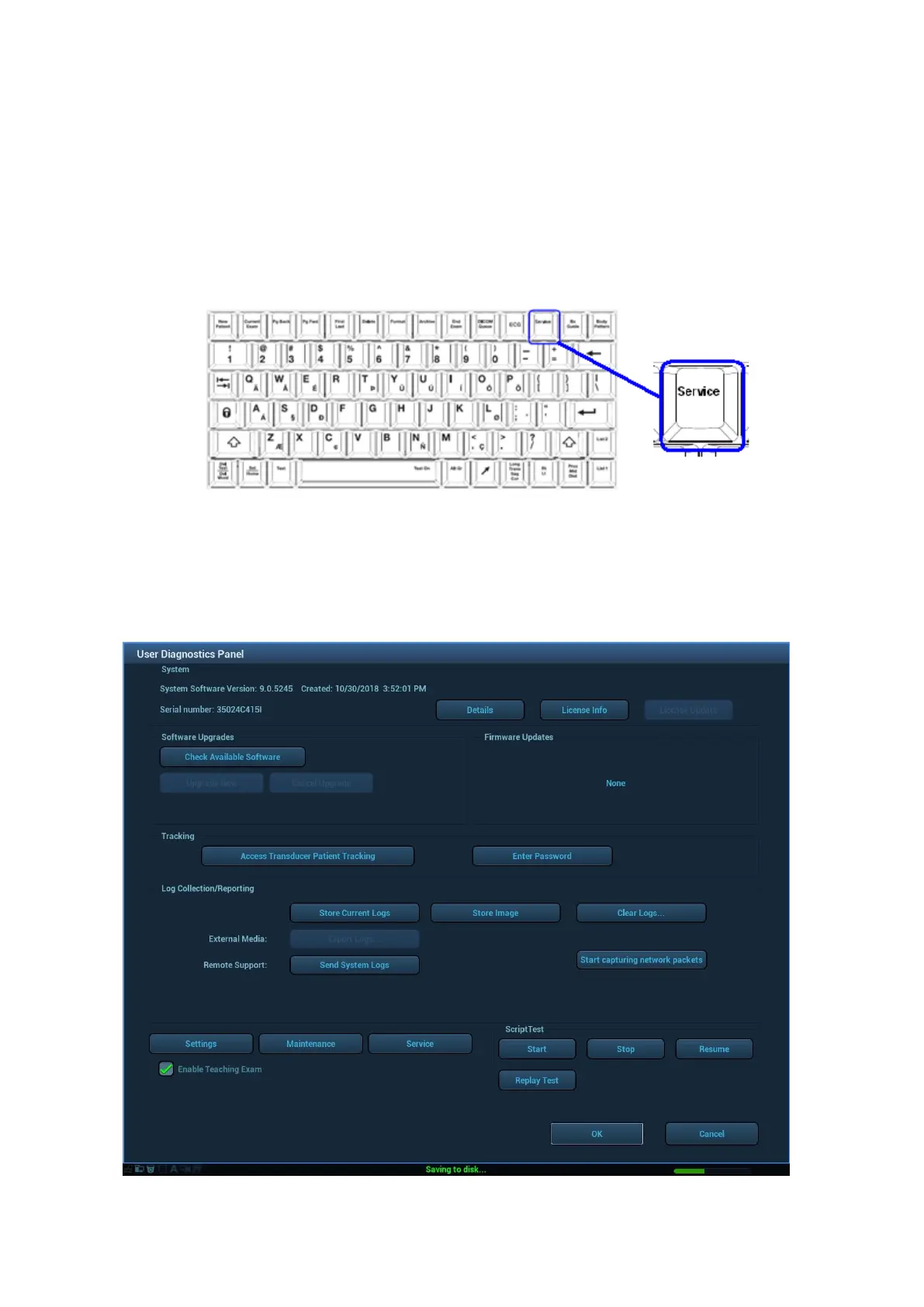

Diagnostic Panel Operations
The User Diagnostics Panel allows service personnel access to important system
information and the ability to perform service support processes.
 To access the User Diagnostic Panel
1. While viewing an imaging display, press the Service key on the QWERTY keyboard:
 A single short press activates the User Diagnostics Panel.
 An extended press (> 3 sec.) will initiate an immediate manual capture of the
system error logs, store the current logs; the system beeps as logs are stored..
2. Press Service again to return to imaging.
