ZS3 Service Manual Page 270 of 295

Module & Cart Electronics

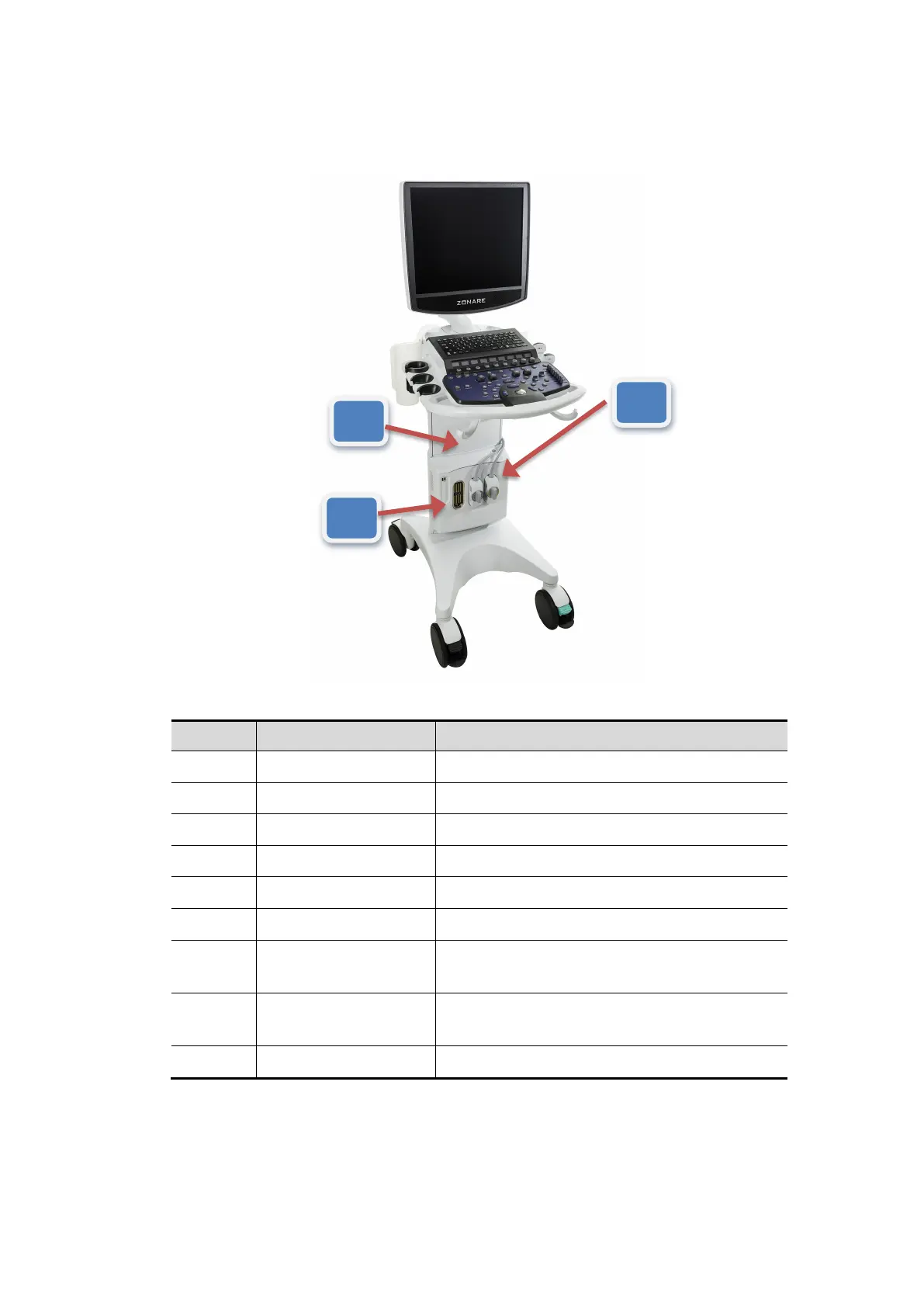

Figure 20.4-ZS3

Number

Part number

Description

38.

115-058353-00

ZS3 Module Kit(ARFI,Without ECG/9.x)

39.

115-058354-00

ZS3 Module Kit(ARFI,Aux-ECG/9.x)

40.

115-029534-00

Assy, Dock Board, ZS3

41.

115-029537-00

Assy, On/Off Board, ZS3

42.

115-029544-00

ON/OFF Button Board (FRU)

43.

34307-00

Assy, Adaptor SATA, ZS3

44.

115-045637-00

Module Cover Assembly (FRU, Without

ECG)

45.

115-045638-00

Module Cover Assembly (FRU, With

ECG)

46.

115-025083-00

Cover, Column, ZS3
