ZS3 Service Manual Page 236 of 295

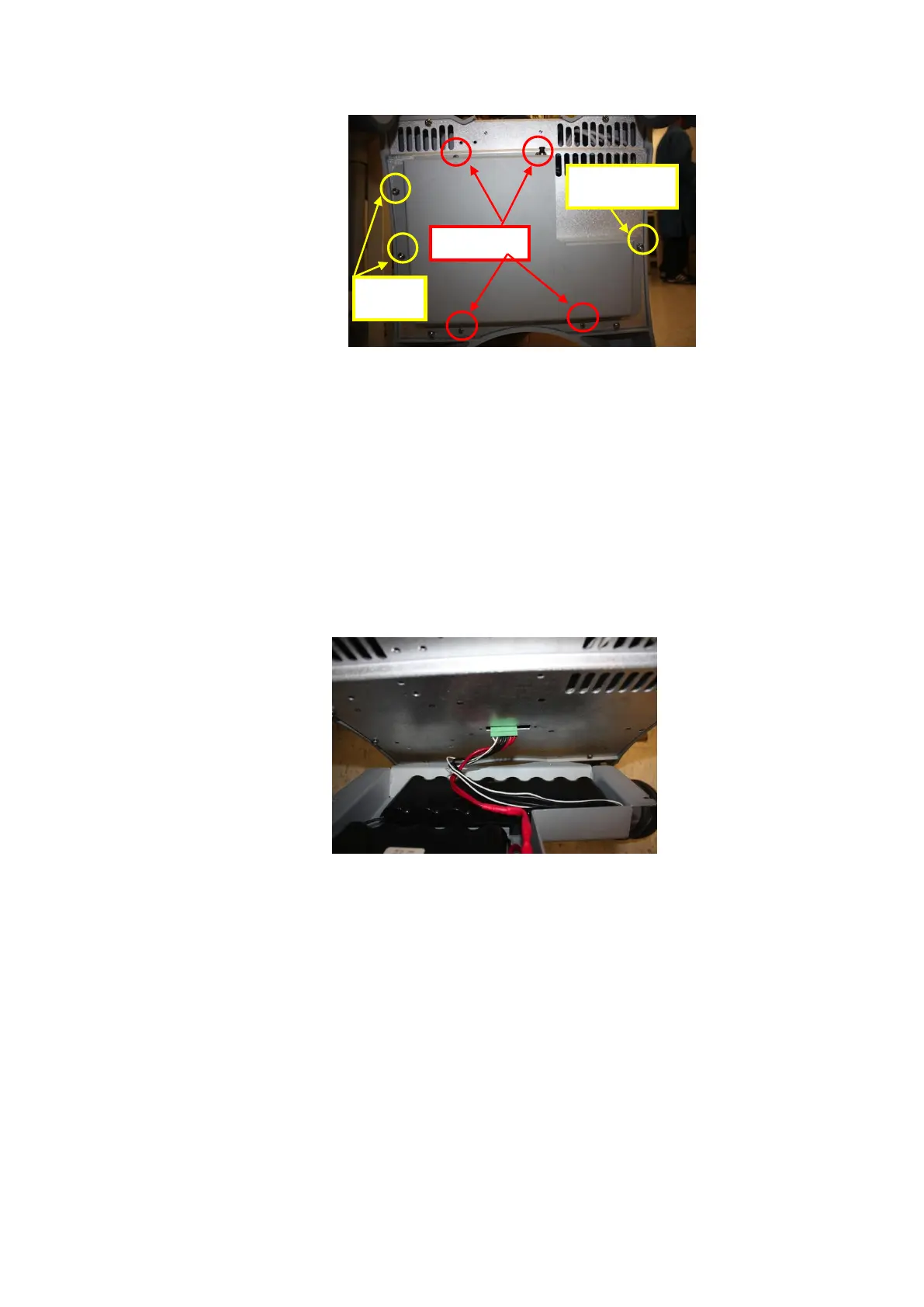

Figure 19.22-ZS3
7. Remove the larger screw, located on the right side of the mounting of the
Battery Pack to the bottom of the system (leaving the last two (2) screws, on
the left side of the battery pack, still in place).
8. Slightly loosen (but DO NOT REMOVE) the remaining two (2) large screws
(on the left side of the battery pack), while supporting the weight of the
battery pack with your hand.
9. While still supporting the weight of the battery pack, slide it to the right to
enable the slotted holes in the cover to come free from the last two
mounting screws,
Figure 19.23-ZS3
10. Lower the battery pack slightly to enable access to the connector at the end
of the battery pack power cable, and unplug the connector from the power
supply on the system.
11. Remove the battery pack.
