Mindray Zonare ZS3 Service Manual

ZS3 Service Manual Page 225 of 295
Overview of Procedure
 Removal of Display Assy
 Installation of Display Assy
 Verification of LCD Display, Speakers, and Microphone
Required Tools/Equipment
 9/32” Nut Driver or wrench
 #1 Phillips Screwdriver
Removal Procedure
1. Ensure the system is powered “OFF”.
2. Place AC circuit breaker, located at the rear of the system, in the “0” (OFF)
position.

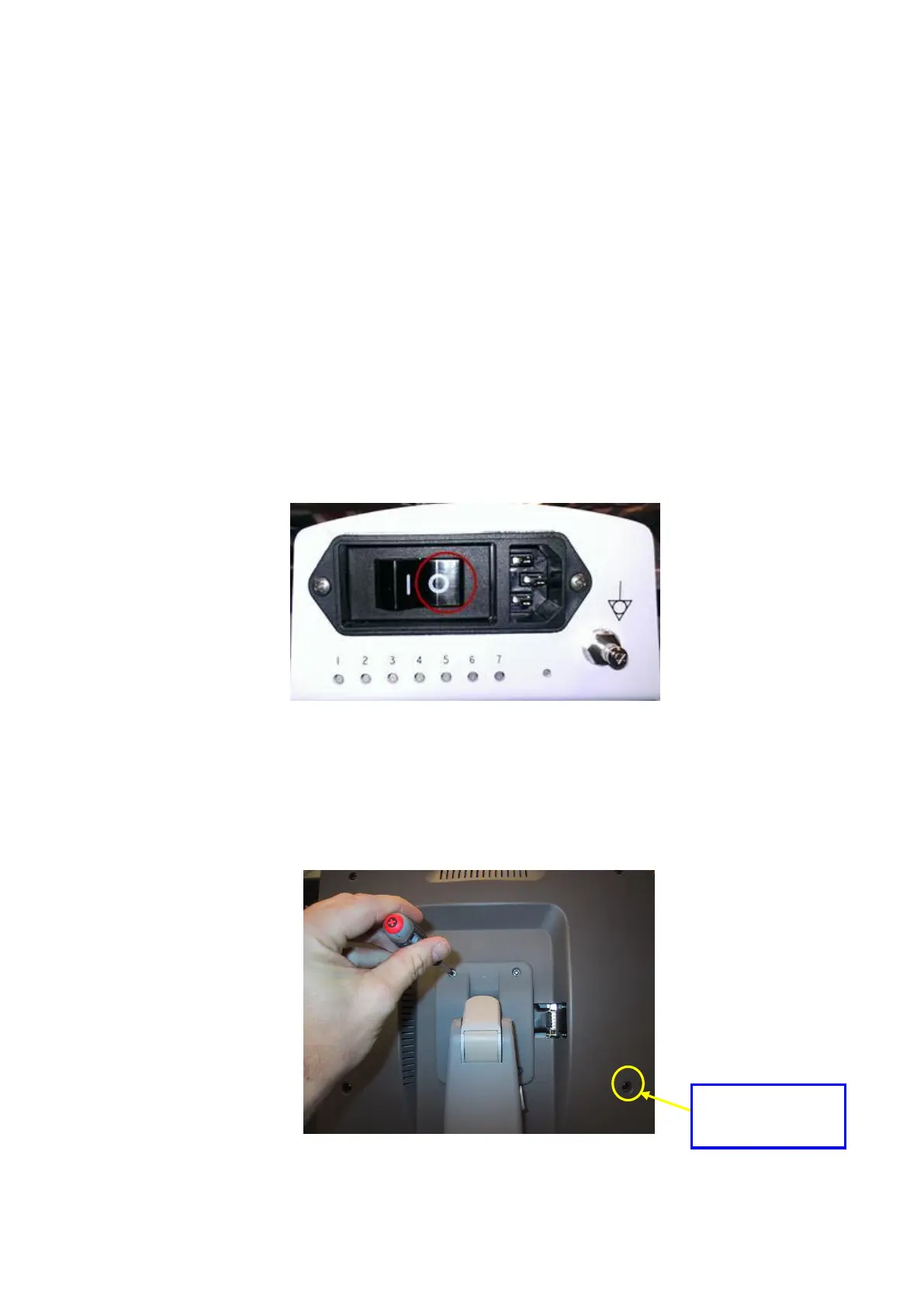

Figure 19.9-ZS3: System Circuit Breaker
3. Disconnect the main AC power cord from the rear of the system, or unplug from
the wall source.
4. Remove the four (4) Phillips-head screws that are retaining the plastic display
hinge back cover, and remove back cover and center insert sleeve.
Figure 19.10-ZS3: Display Cover
Cable retention
screw
