Mindray Zonare ZS3 Service Manual

ZS3 Service Manual
Page 127 of 295

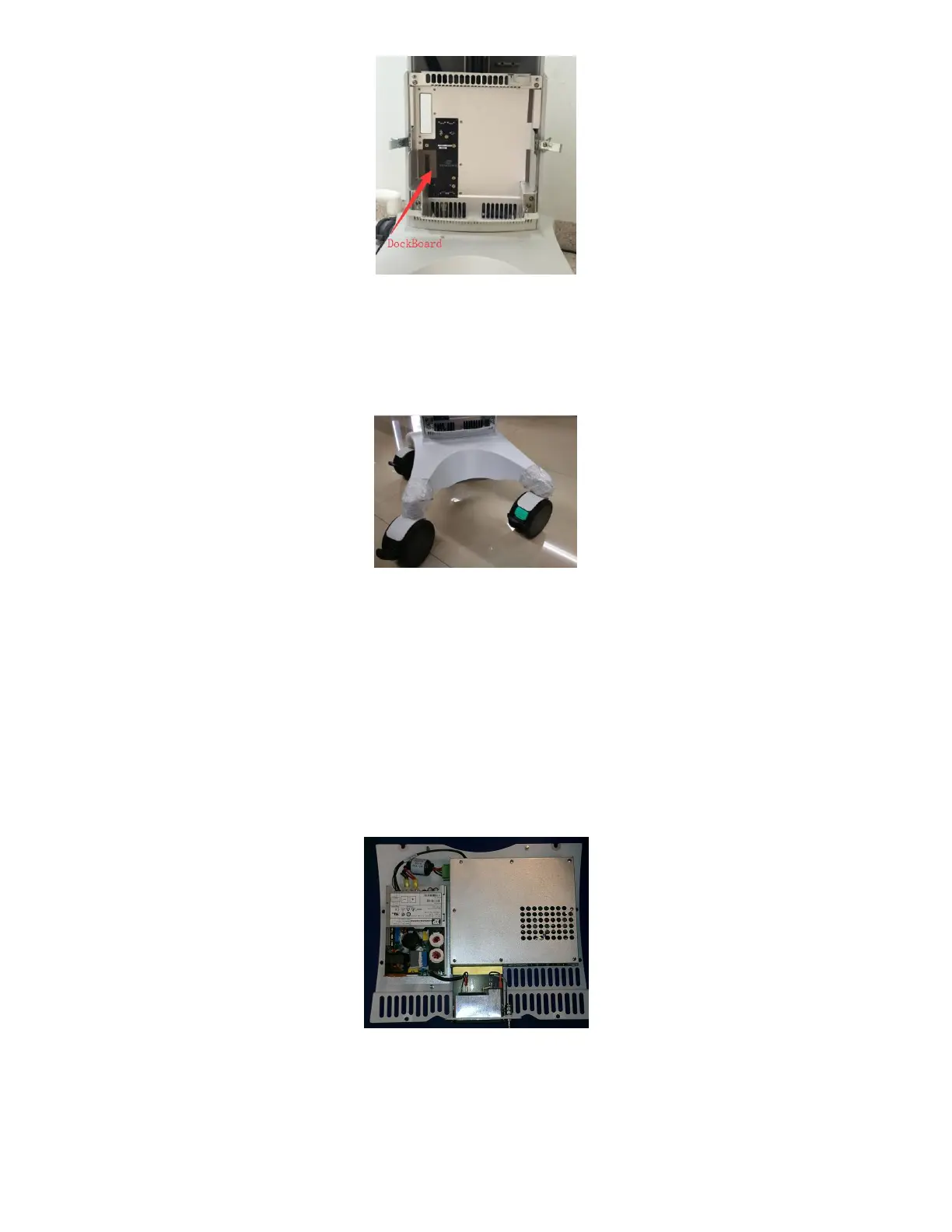

Figure 12.2-ZS3
CART BASE WITH CASTERS, P/N: 115-045914-00
 115-031746-00 150mm total locking castor
 115-031572-00 150mm direction locking castor
Figure 12.3-ZS3
POWER MODULE ASSY, ZS3 P/N: 115-052756-00
 VCart (power for module), +12V
 VDock (Monitor, UI, Printer), +12V
 Z-PAK battery charging circuitry
 Z-PAK battery fuel gauge
 PIC Power Supply Controller logic
 External system status LEDs (7)
Figure 12.4-ZS3
