ZS3 Service Manual Page 148 of 295
Tools: screw driver

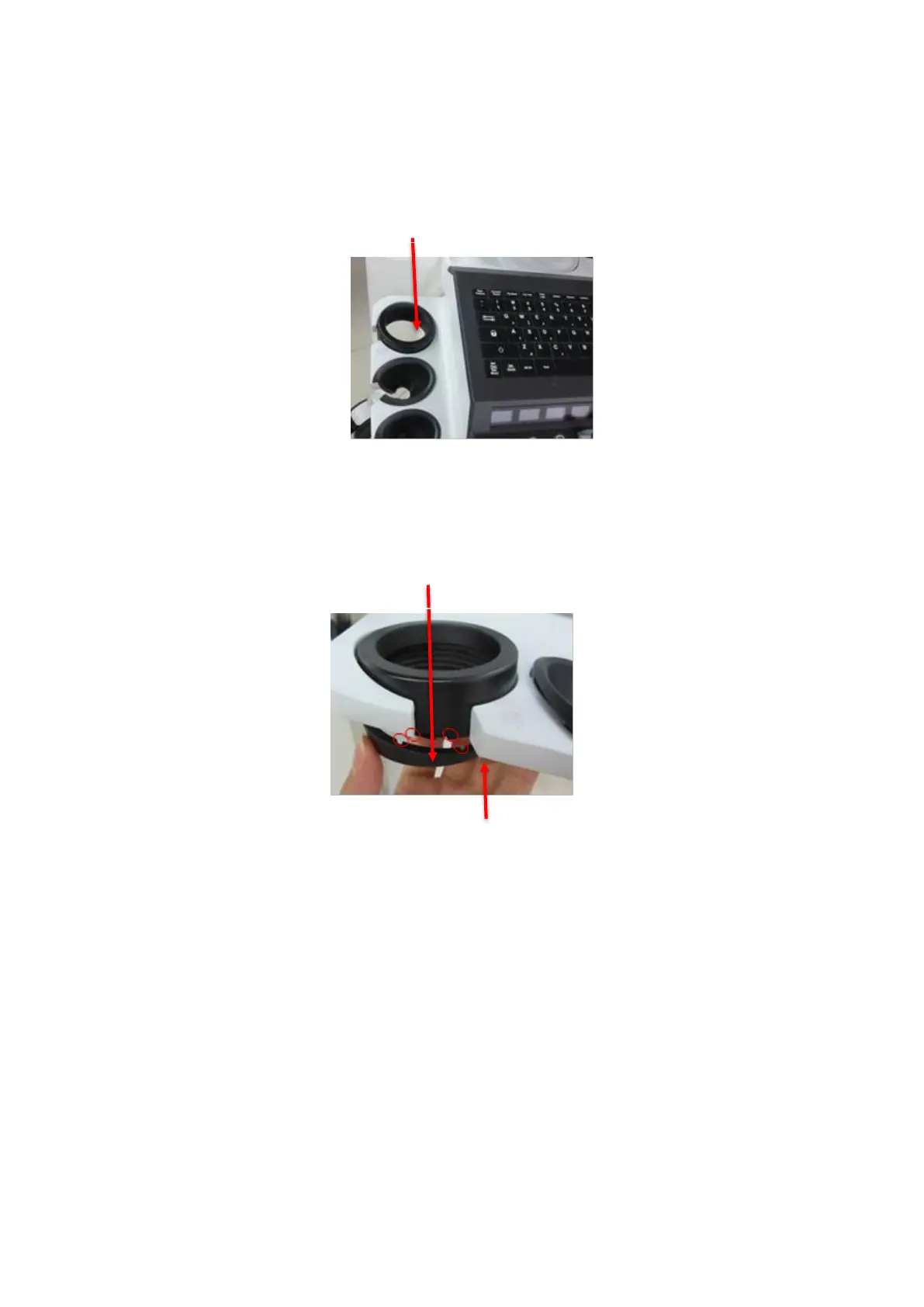

1. Buckle the upper bracket of Gel warmer into the left side of the user interface
base.
Figure 14.19-ZS3
2. Aligning with the rib of the upper bracket, assemble the bracket cushion onto the
upper bracket.
Figure 14.20-ZS3
3. Screw the lower bracket into the upper bracket till the marks aligned. (Fig.5C, 5D)
Upper bracket of Gel
warmer
Bracket
cushion
Align with the rib
