Figure 18.4-ZS3

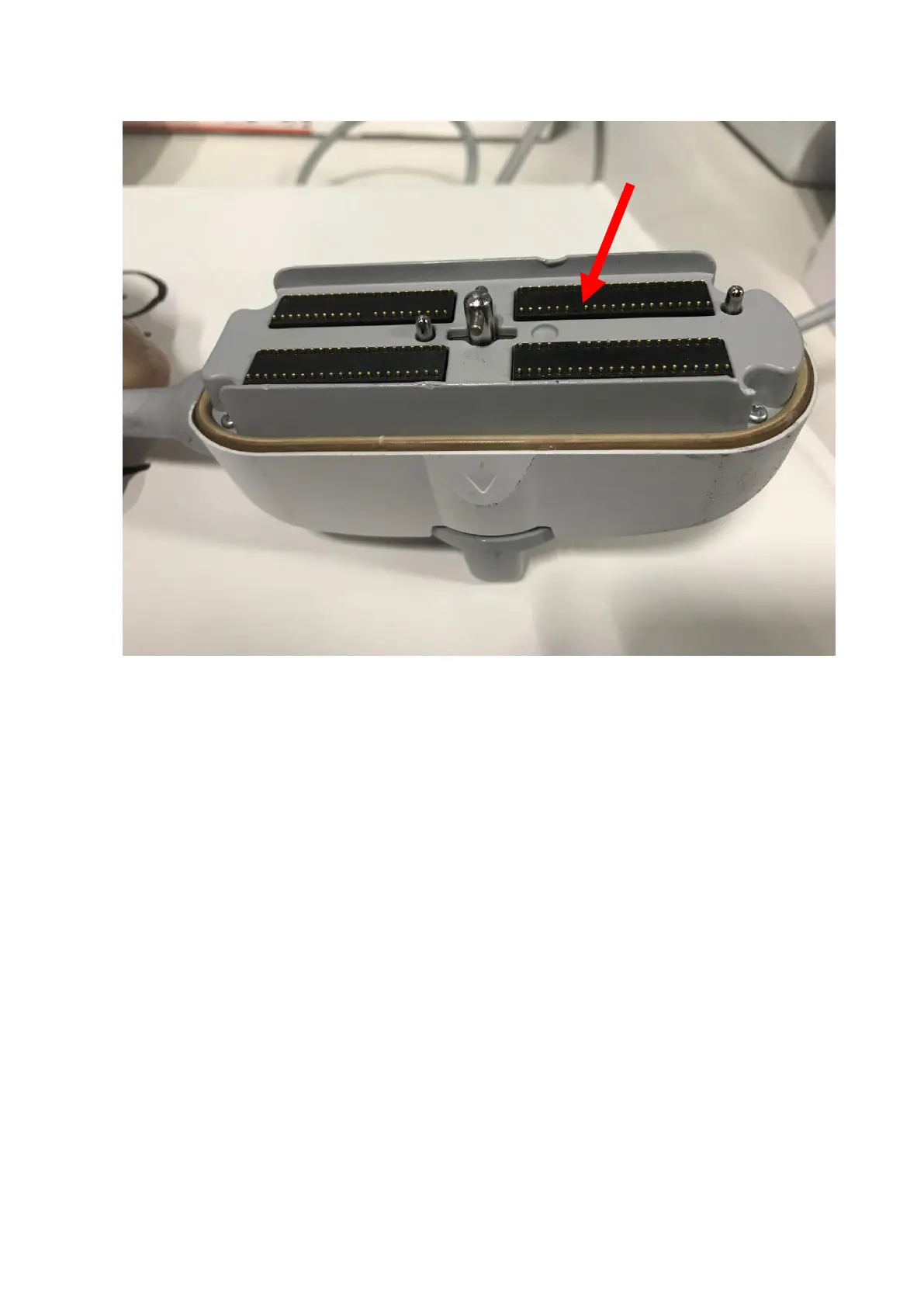

Figure 1: Transducer Connector Pin Damage – (Example)
Inspection of Transducers
1. Routinely inspect transducers for the following problems.
 Signs of wear or damage to the housing, cable, etc.
 Cracks in case or transducer face.
 Cuts or gouges on any part of the transducer, including transducer face,
case, cable, and connector.
 Buckling or bulging of the lens material on the transducer face.
 Damage to the transducer connector, including bent, broken, deformed,
or missing pins.
2. Immediately replace a transducer that exhibits any of the above damage
symptoms.
