ZS3 Service Manual Page 251 of 295

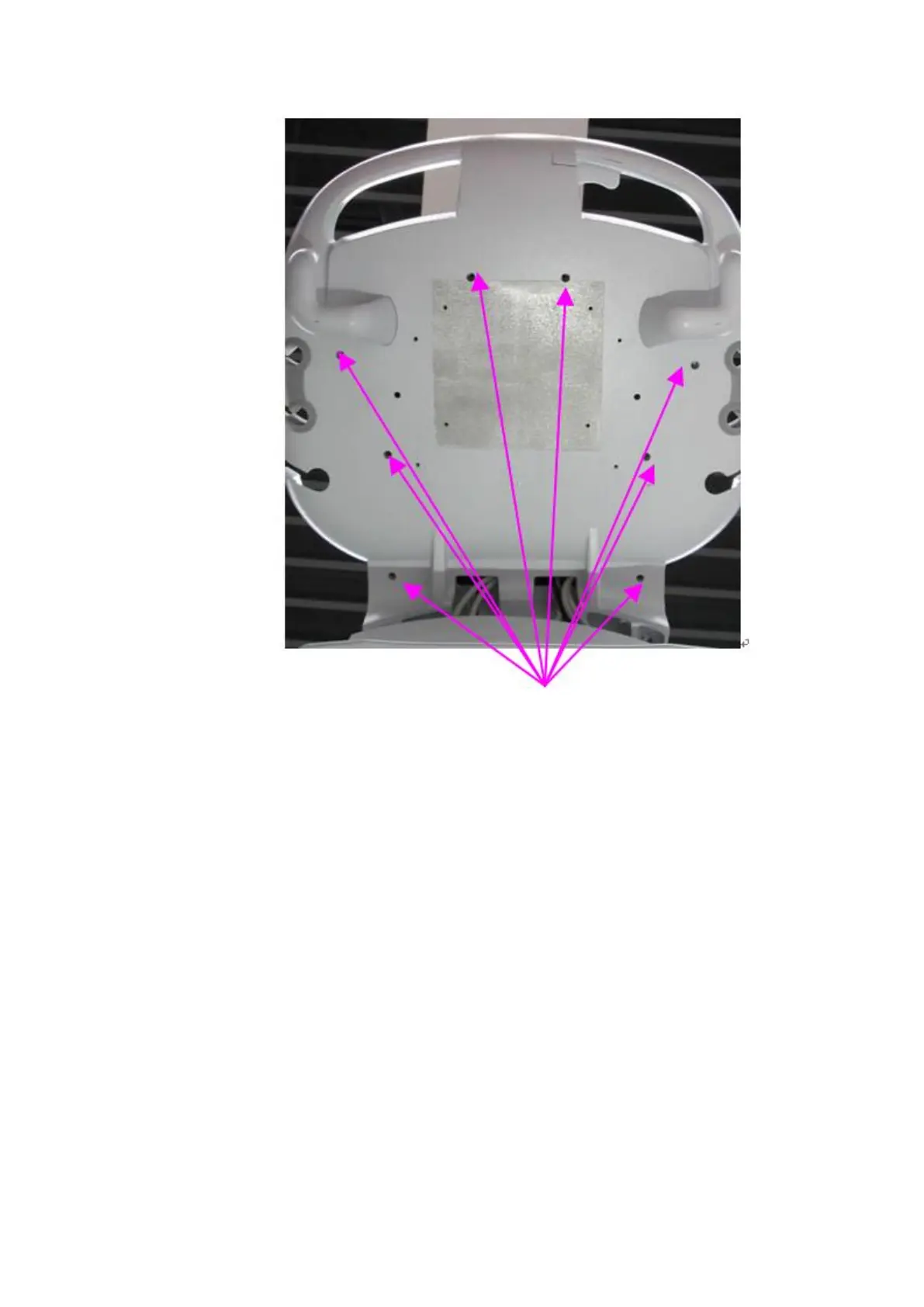

Figure 19.42-ZS3

M3X14 cross panhead screws（8)

5. While lifting the front of the User Interface up and exposing the underside of the

UI, disconnect the USB and power cable from the UI assy.
