ELECTRICAL SAFETY INSPECTION
7- Mains on Applied Part Leakage
The Mains on Applied Part test applies a test voltage, which is 110% of the
mains voltage, through a limiting resistance, to selected applied part
terminals. Current measurements are then taken between the selected
applied part and earth. Measurements are taken with the test voltage (110%
of mains) to applied parts in the normal and reverse polarity conditions as
indicated on the display.
The following outlet conditions apply when performing the Mains on Applied
Part test.
Normal Polarity;
Reversed Polarity
To perform a calibration from the Mains on Applied Part test, press CAL (SOFT
KEY 2).

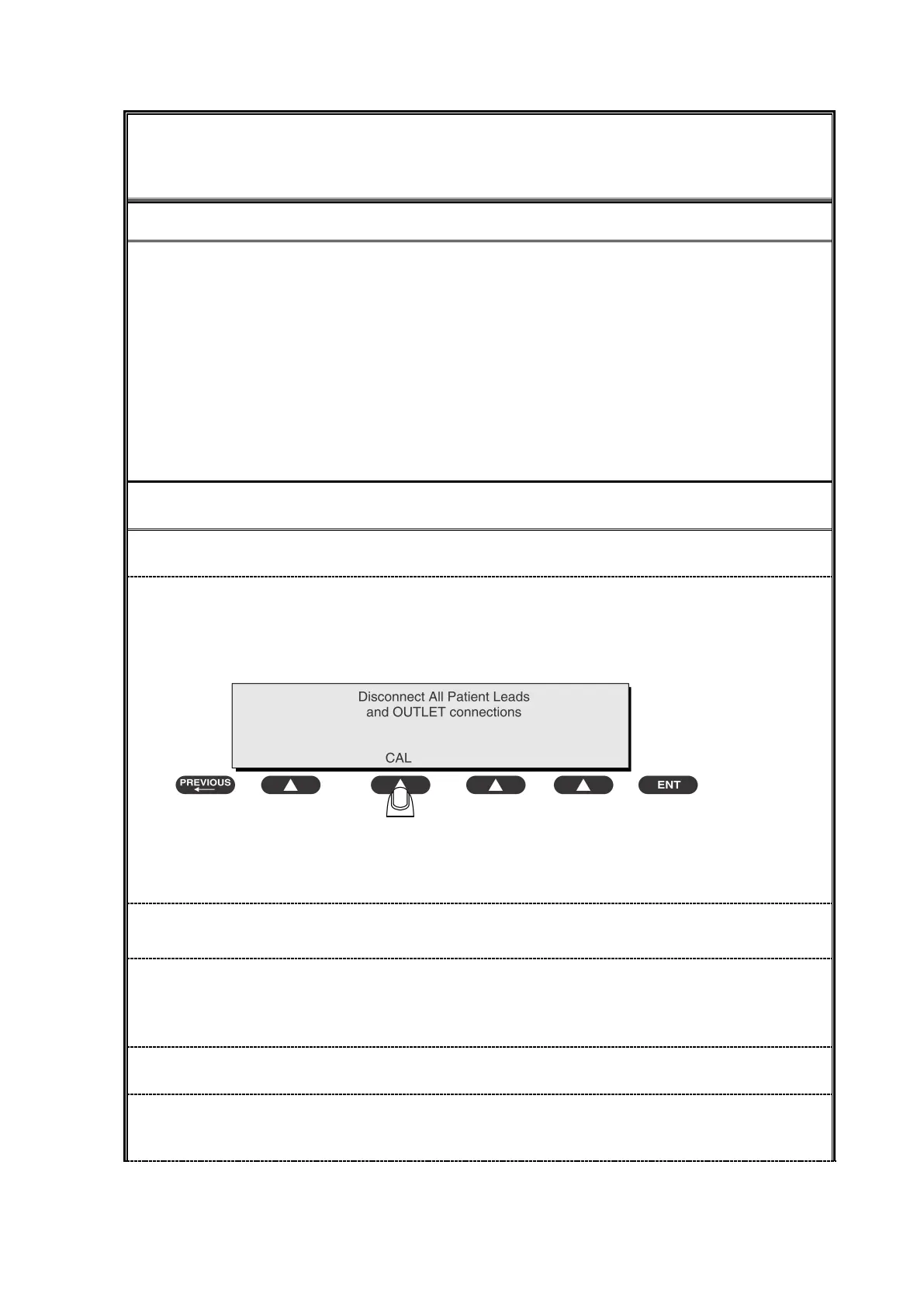

1) Disconnect ALL patient leads, test leads, and DUT outlet connections.
2) Press CAL to begin calibration, as shown:
If the calibration fails, the previously stored readings will be used until a passing
calibration has occurred. Also, the esc/stop key has no effect during calibration.
3) When the calibration is finished, the Mains on Applied Part test will reappear.
1) A 2-beep-per-second signal indicates high voltage present at the applied part
terminals while a calibration is being performed.
2) High voltage is present at applied part terminals while measurements are being
taken.
1) From the MAIN MENU, or with the outlet unpowered, plug the DUT into the 601
2) Attach the applied parts to the 601PRO applied part terminals.
3) Attach the red terminal lead to a conductive part on the DUT enclosure.
