138
Adding Master Telephones
Only one Master Telephone can be added to either a RAX or the main display per node.
Invoke the Add Display Adder function. This can be done...
• By pressing the right mouse button, with focus on the tree item representing
either an annunciator or another display adder belonging to an annunciator.
• By using the Insert menu and choosing Add Display Adder, with focus on the
tree item representing either an annunciator or another display adder belonging
to an annunciator.

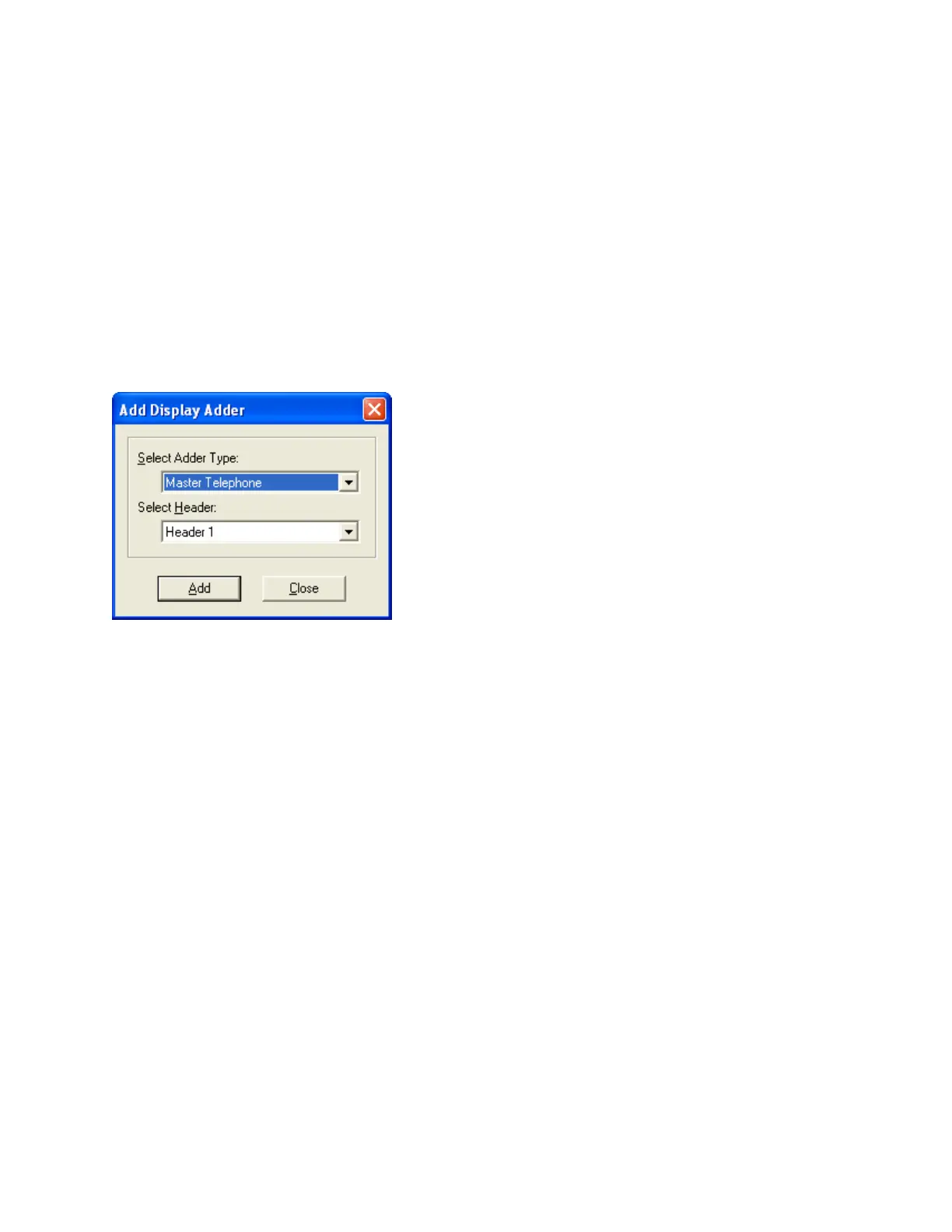

The following dialog appears:
Master Telephone only appears in the Adder Type Combo Box if the annunciator does not
already have one. It consumes one frame. It is initially set up to have all of the required
standard LEDs and switches and the display items should not be edited.
Adding Telephone/Page Selectors for Telephones
Any number of Telephone/Page Selector adders can be added to each RAX LCD
Annunciator or to the Base Panel's Main Display, up to the maximum frame count for an
Annunciator. An Annunciator can accommodate 14 frames: A Telephone/Page Selector
occupies 2 frames.
Invoke the Add Display Adder function. This can be done...
• By pressing the right mouse button, with focus on the tree item representing
either an annunciator or another display adder belonging to an annunciator.
• By using the Insert menu and choosing Add Display Adder, with focus on the
tree item representing either an annunciator or another display adder belonging
to an annunciator.
