26
Note: If you selected Sounder Base in the Type menu, then you can only add Sounder Base
(AP) devices. If you selected Relay Base in the Type menu, then you can only add Relay Base
(AP) devices. If you selected Output Module in the Type menu, then you can only add
Control (AP), Six Relay Control (AP), and Relay (AP) devices.
4. Click Add.
5. Click Close.
Correlate Output Devices to an Input Zone
To configure output devices so that they activate simultaneously when they are triggered by
an input, you must also correlate the output devices to an input zone.
Note: The list of outputs in the output group must match the list of correlated to the
input zone. If the input zone contains more outputs than there are in the output group,
then the outputs that are not in the output group will not activate simultaneously when they
are triggered by the input. However, if the output group contains more outputs than there
are in the input zone, no outputs will activate simultaneously.
1. Select the input zone that you want to add the output devices to.
2. Click Insert in the menu bar, then click Add Correlations.

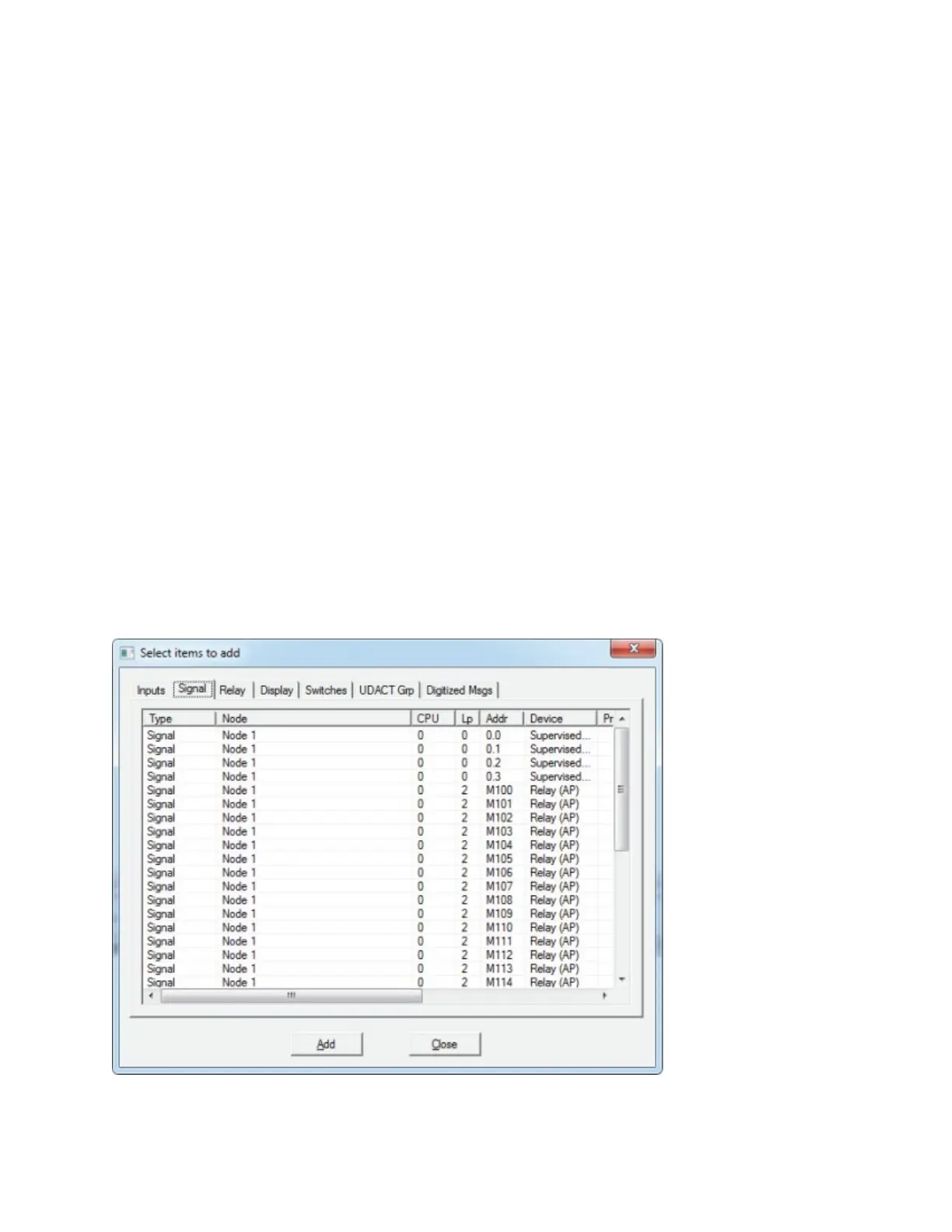

The Select items to add window will appear.
