CHAPTER 3 CPU MODULE FUNCTIONS
3

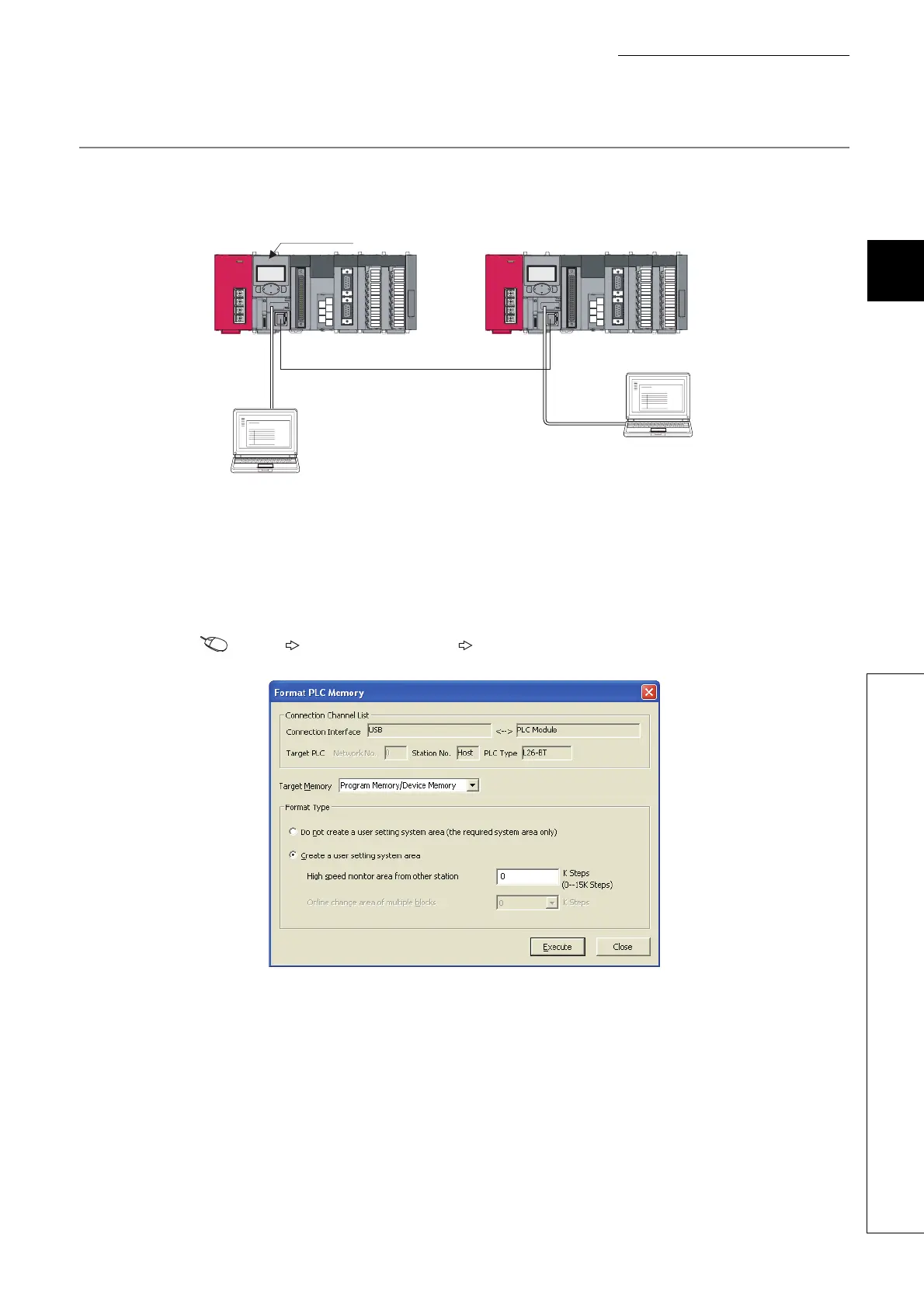

3.22 Debug from Multiple Programming Tools 3.22.1 Simultaneous monitoring from multiple programming tools
3.22.1 Simultaneous monitoring from multiple programming tools
Creating a user setting system area allows high-speed monitoring from multiple programming tools (Setting a
monitoring file for the host station is not required).
However, since the system area is stored in the program memory, the storage area is reduced by the system area size.
(1) Creating a user setting system file
1. Open the "Format PLC Memory" dialog box.
[Online] [PLC Memory Operation] [Format PLC Memory]
2. Select "Program memory/Device memory" in "Target Memory".
3. Select "Create a user setting system area" in the "Format Type" area.
The number of programming tools that can simultaneously monitor a CPU module is the number of user
setting system areas +1.
4. Set the number of steps for the system area (in increments of: 1K step).
Up to 15K steps can be set for the system area. 1K step is available for a monitoring file from another
station.
Programming tool
Programming tool
Monitoring target
