CHAPTER 4 DISPLAY UNIT FUNCTIONS
4
4.2 CPU Monitor/Test 4.2.6 Error display/clear
4.2.6 Error display/clear
The current and past errors and their information can be checked with the display unit. Also, the current error can be
cleared.
The error display/clear includes the following functions.
• Current error monitor
• Error log display
• Error clear
(1) Screen transition

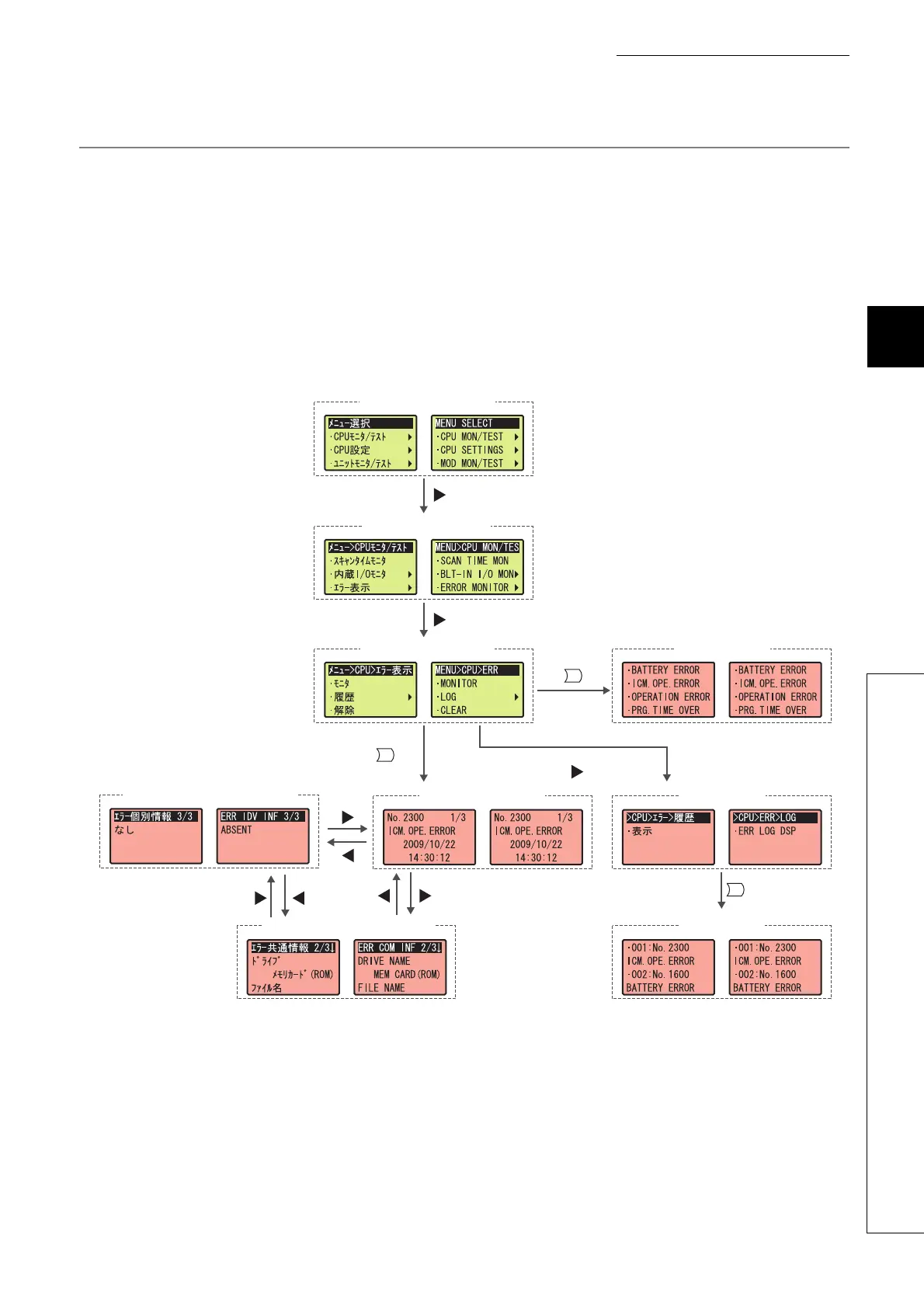

The following shows screen transition of error display/clear.
OK
OK
OK
"Function selection" screen
"Error common information" screen
"Error individual information" screen"
"Error information" screen
"Error display/clear" screen
Selecting "MONITOR"
Selecting
"CLEAR"
Selecting "LOG"
"Error log" screen
"Error clear" screen
"Error list" screen
"CPU monitor/test" screen
