CHAPTER 4 DISPLAY UNIT FUNCTIONS
4
4.4 Module Monitor/Test 4.4.1 Buffer memory monitor/test
4.4 Module Monitor/Test
The buffer memory values of intelligent function modules (including the LCPU with the built-in CC-Link function) can be
checked and changed with the display unit.
4.4.1 Buffer memory monitor/test
Buffer memory values can be monitored and tested.

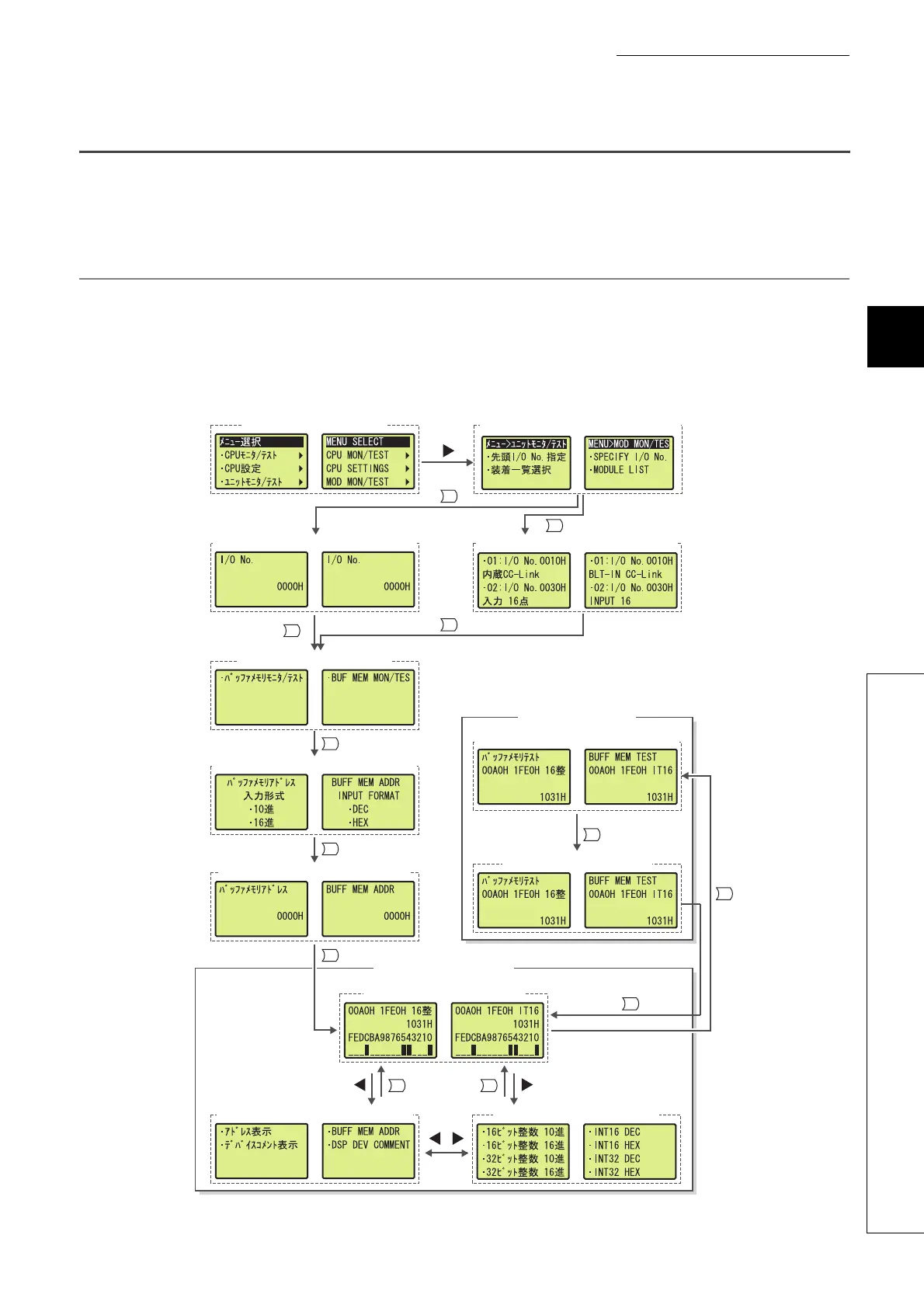

(1) Screen transition
The following shows screen transition of buffer memory monitor/test.
OK
OK
OK
OK
OK
OK
OK
OK
OK
OK
OK
OK
,
"Function selection" screen
"Module monitor/test" screen
"Buffer memory address setting" screen
"Module monitor/test_module specification" screen
"Module monitor/test_module selection" screen
"Buffer memory address input format selection" screen
"Buffer memory monitor" screen
"Display format selection" screen
"Device comment display selection" screen
Buffer memory test
"Buffer memory test value check" screen
"Buffer memory test" screen
Buffer memory monitor
"Module monitor/test_start I/O No. specification" screen
