CHAPTER 4 DISPLAY UNIT FUNCTIONS
4
4.5 Module Settings 4.5.1 Initial setting change
4.5 Module Settings
Values set to intelligent function modules can be checked and changed with the display unit.
4.5.1 Initial setting change
The initial setting value of an intelligent function module can be changed.
The changed value is reflected to the CPU module after any of the following operations are performed.
• Powering off and then on the CPU module
• Resetting the CPU module
• Setting the CPU module from STOP to RUN
*1
*1 Perform this operation twice. (STOP→RUN→STOP→RUN)
(1) Screen transition

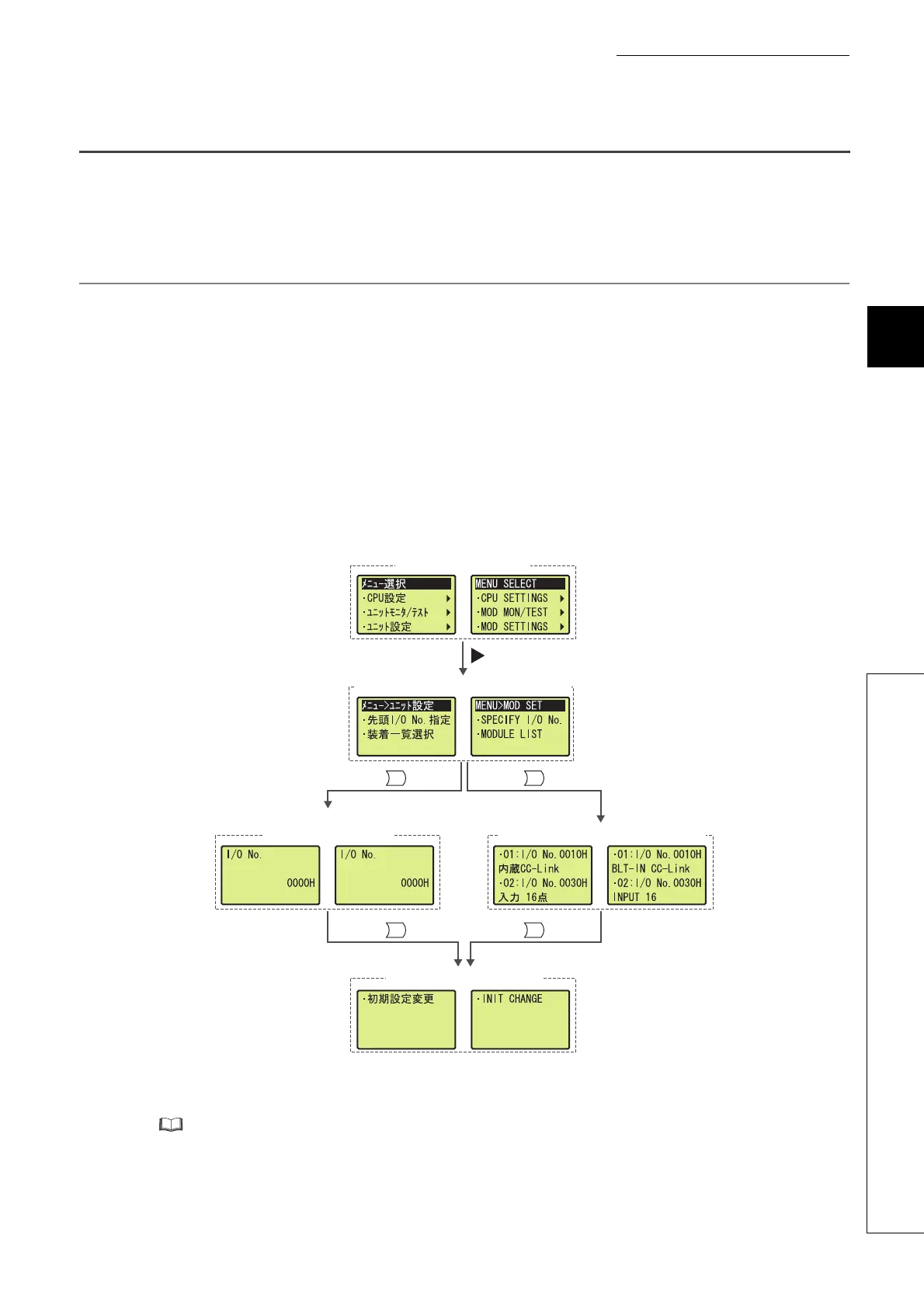

The following shows screen transition of initial setting change.
Levels lower than the "initial setting change" screen depend on intelligent function module used.
Manual for the intelligent function module used
OK OK
OK OK
"Function selection" screen
"Initial setting change" screen
"Module settiong_module specification" screen
"Module setting_module selection" screen
"Module setting_start I/O
No. specification" screen
