CHAPTER 5 DEVICES
5
5.4 Module Access Devices 5.4.1 Intelligent function module device
5.4 Module Access Devices
5.4.1 Intelligent function module device
The intelligent function module device allows direct access from the CPU module to the buffer memories of the
connected intelligent function modules.
(1) Specification method
Specify the I/O number and buffer memory address of the intelligent function module.

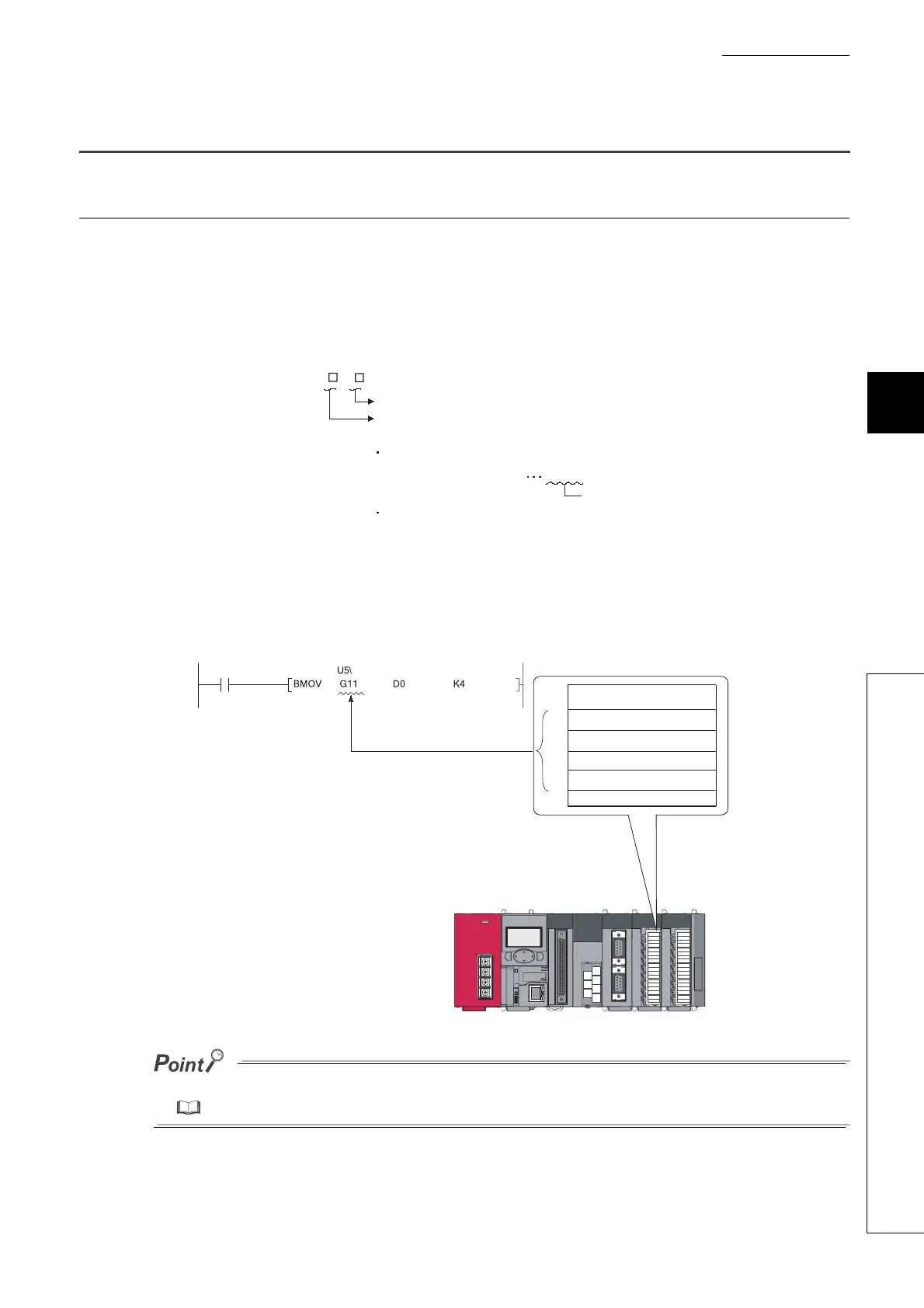

(2) Application example
When the L60AD4 high-speed analog-digital converter module is connected in the position of the start I/O number
X/Y050, specify the device as shown below to store digital output values of CH.1 to CH.4 into D0 to D3
accordingly.
If the intelligent function module device is used, device comments can be attached to the buffer memory.
Operating manual for the programming tool used
Specification method:
Buffer memory address (setting range: 0 to 65535 in decimal)
X/Y1F0 X/Y1F0
Start I/O number of intelligent function module
Specification: 1F
Setting: First 2 digits of start I/O number expressed with 3 digits
Setting range: 00
H to FFH
U \G
L60AD4
12
13
11
14
CH1 Digital output value
CH2 Digital output value
CH3 Digital output value
CH4 Digital output value
