CHAPTER 4 DISPLAY UNIT FUNCTIONS
4
4.2 CPU Monitor/Test 4.2.5 Built-in I/O function monitor
4.2.5 Built-in I/O function monitor
I/O status and setting values of the built-in I/O function can be checked with the display unit. Also, errors detected
during execution of the built-in I/O function can be cleared.
The built-in I/O monitor includes the following functions.
• Built-in positioning function monitor
• Built-in high-speed counter function monitor
• Built-in I/O function error clear
(1) Screen transition

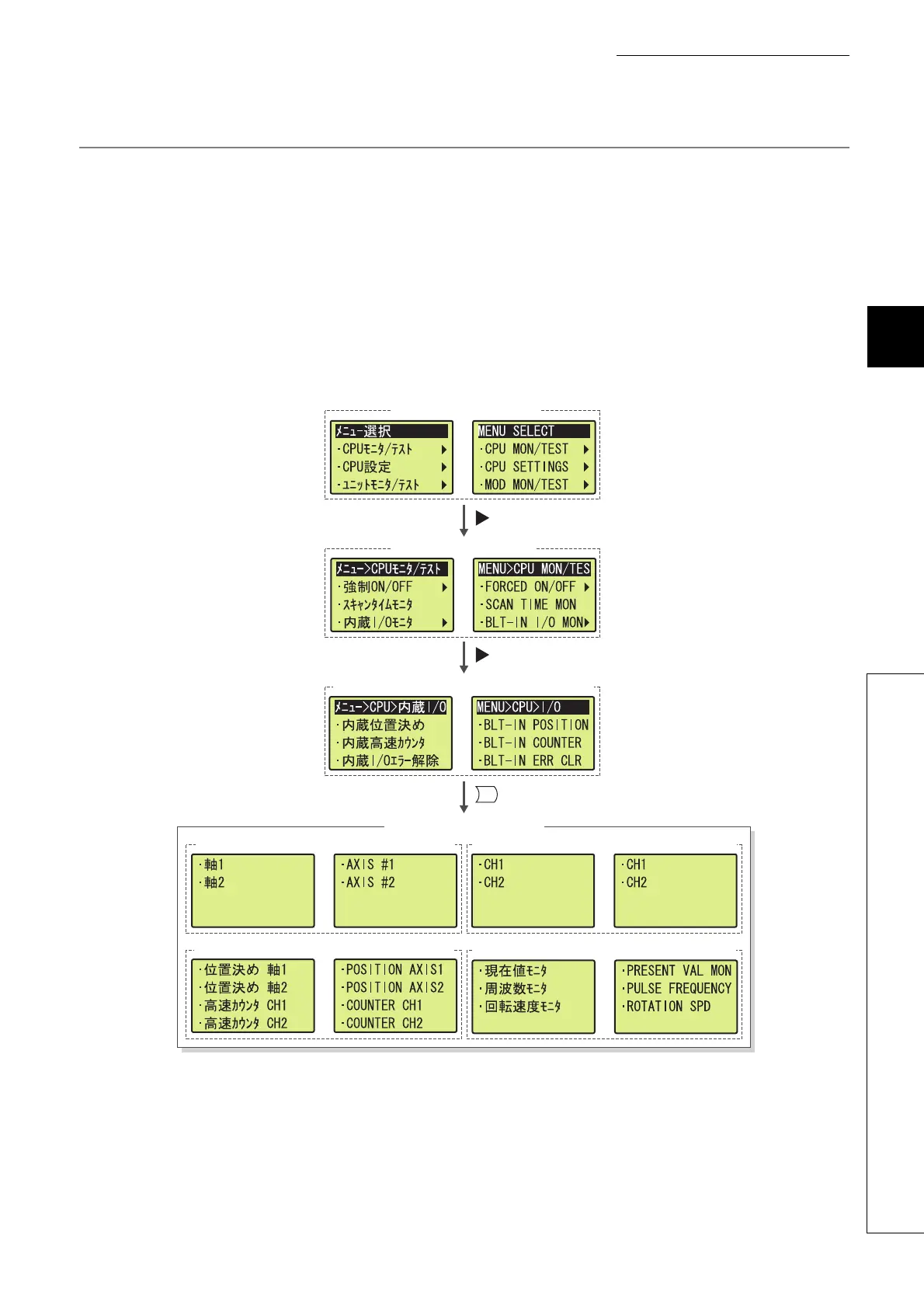

The following shows screen transition of built-in I/O function monitor.
OK
"Function selection" screen
"CPU monitor/test" screen
"Built-in I/O function monitor/error clear" screen
Built-in I/O function monitor
"Positioning function - monitor axis selection" screen
"High-speed counter function - monitor target selection" screen "Built-in I/O function error clear - axis/CH selection" screen
"High-speed counter function - monitor CH selection" screen
