216

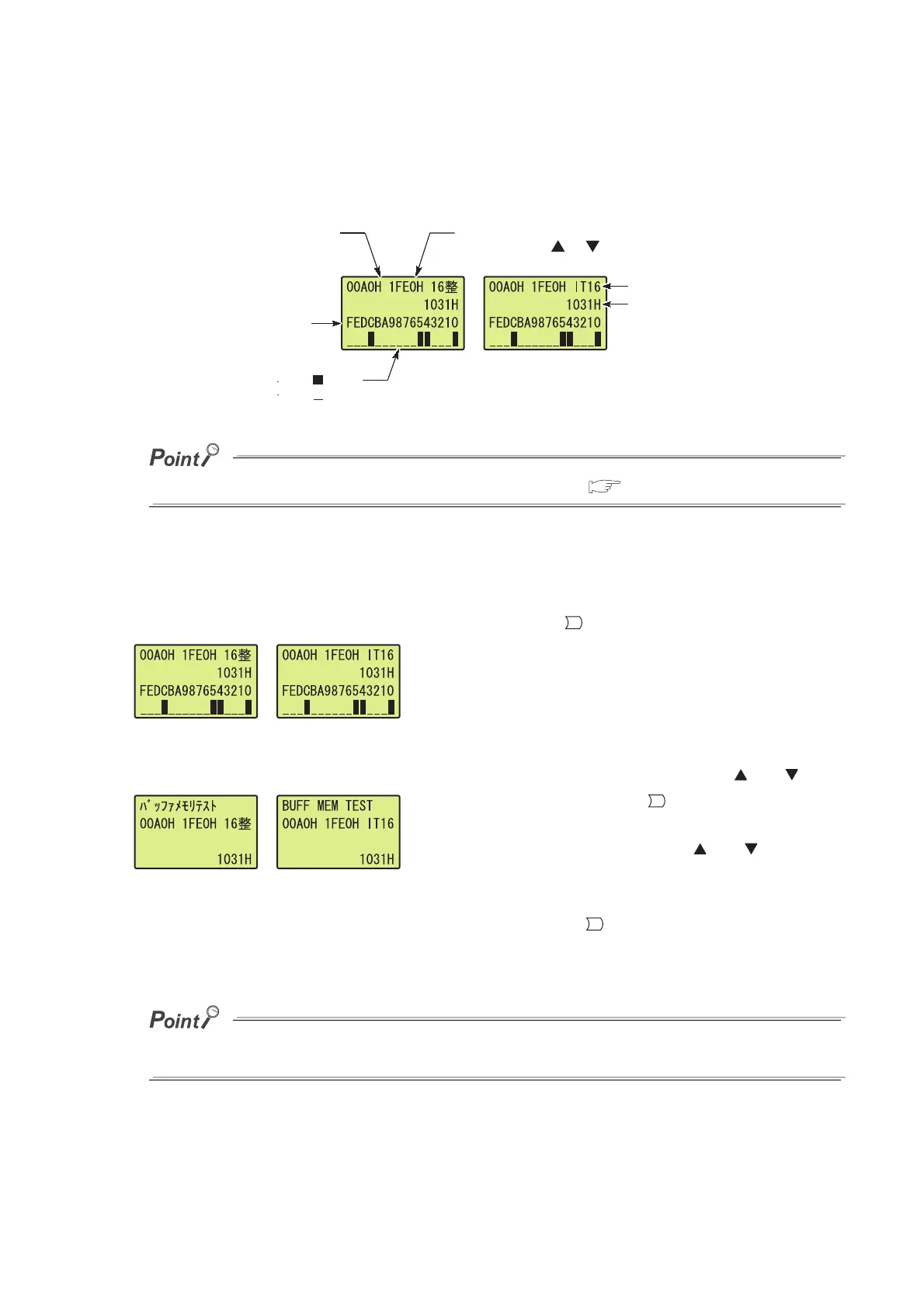

(6) Buffer memory monitor
The start I/O No., buffer memory address, display format, buffer memory value, and bit status of the buffer
memory value of the specified module can be monitored.
The description of displayed items is the same as that of the device monitor.( Page 192, Section 4.2.1 (5))
(7) Buffer memory test
A buffer memory value can be changed.
Since the value displayed in the "buffer memory test value check" screen is used for testing, if the relevant buffer memory is
being used in a program, the displayed value may differ from the one set in the "buffer memory test" screen.
"Buffer memory monitor" screen
1. Press the button.
↓
"Buffer memory test value check" screen
2. Select the target address using the and
buttons and press the button. The cursor
moves to the buffer memory value. Increase or
decrease the value using the and buttons.
3. Pressing the button will update the value set in
buffer memory test.
A buffer memory address to be monitored can be changed
by 1 word with the and buttons.
Start I/O number of a module to be monitored
Display format
Buffer memory value
Bit position counted from the
specified buffer memory address
On/off status of bits
ON :
OFF:
OK
OK
OK
