CHAPTER 4 DISPLAY UNIT FUNCTIONS
4
4.4 Module Monitor/Test 4.4.1 Buffer memory monitor/test
(4) Specifying display format
Perform the following operation.
(5) Specifying a device comment
To display a device with device comment, perform the following operation.
*1 *2
*1 Device comments are displayed only in the following screens.
• "Buffer memory monitor" screen
• "Buffer memory test value check" screen
• "Buffer memory test" screen
*2 To display a device comment, preset "Comment File Used in a Command" in the PLC File tab of the PLC Parameter
dialog box.

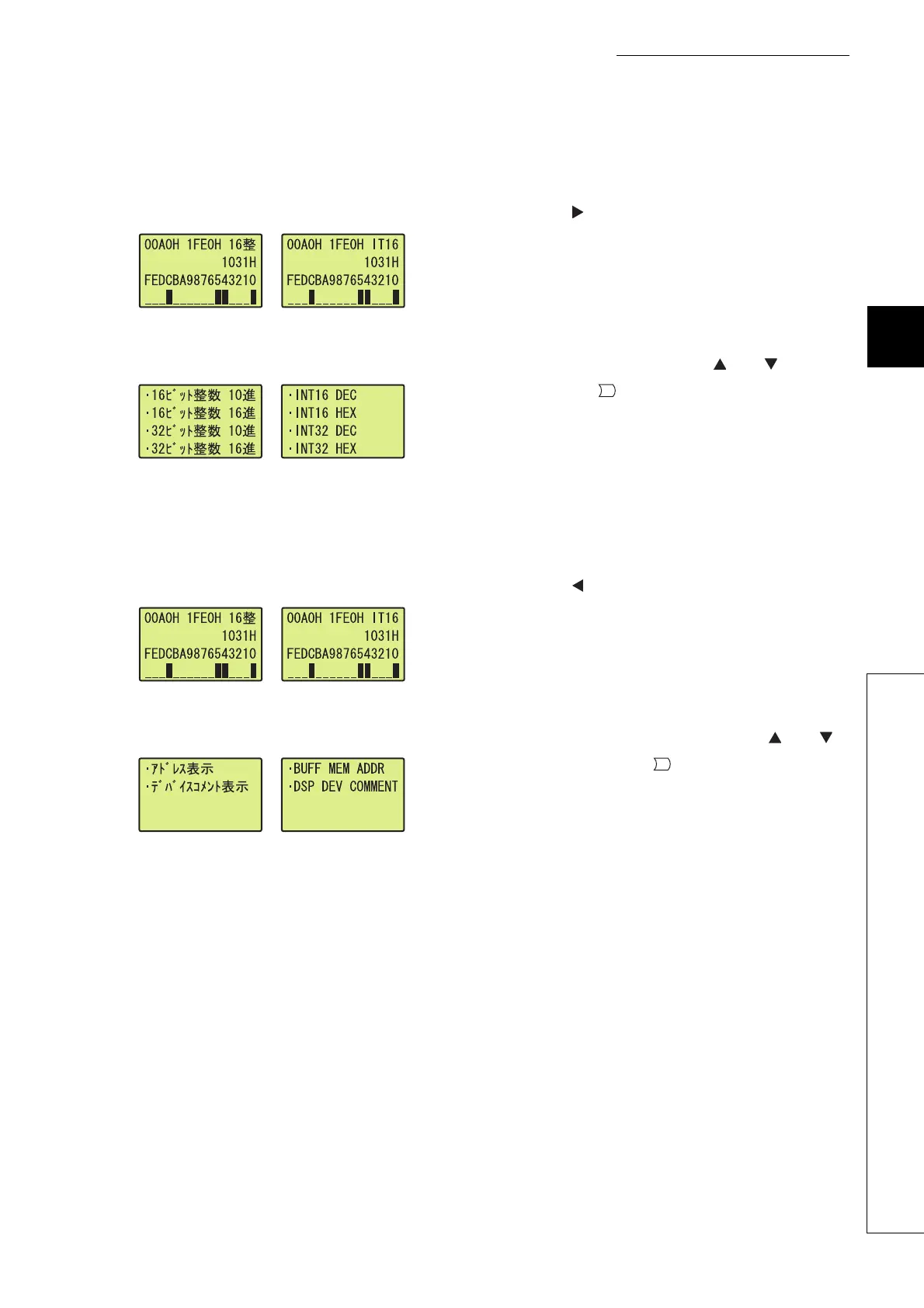

"Buffer memory monitor" screen
1. Press the button.
↓
"Display format selection" screen
2. Select display format using the and buttons
and press the button.
"Buffer memory monitor" screen
1. Press the button.
↓
"Device comment display selection" screen
2. Select "DSP DEV COMMENT" using the and
buttons and press the button.
OK
OK
