CHAPTER 4 DISPLAY UNIT FUNCTIONS
4
4.2 CPU Monitor/Test 4.2.2 Device clear
(3) Operating procedure
Perform device clear by the following operation.

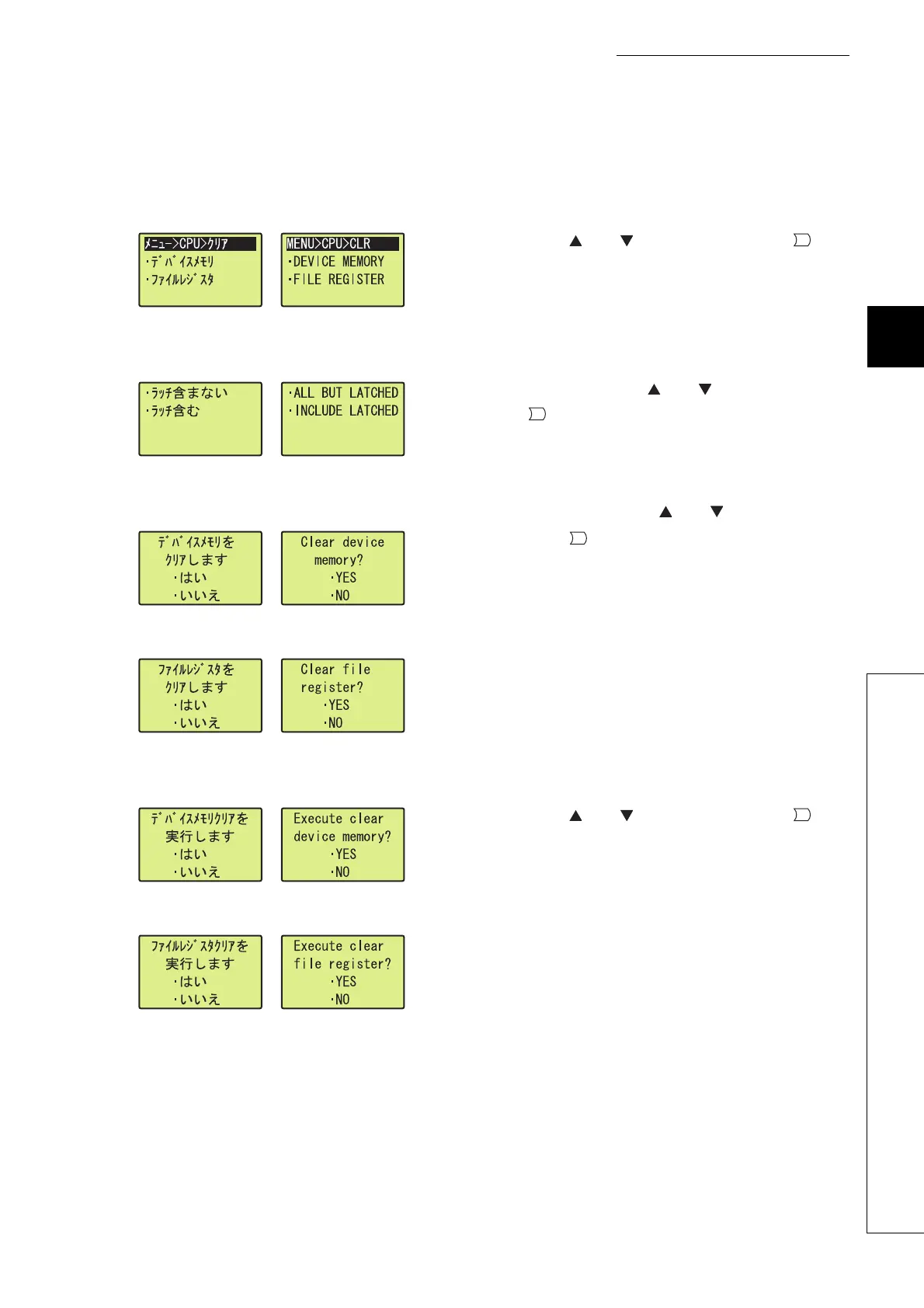

"Device clear" screen
1. Select "DEVICE MEMORY" or "FILE REGISTER"
using the and buttons and press the
button.
↓
"Latched device memory clear selection" screen
2. Select whether to clear the values of devices within
latch range using the and buttons and press
the button.(can be set for device memory clear
only)
↓
"Device memory clear" screen
"File register clear" screen
3. Select "YES" using the and buttons and
press the button.
↓
"Device memory clear confirmation" screen
"File register clear confirmation" screen
4. In the confirmation screen, select "YES" again
using the and buttons and press the
button.
↓
To the next page
OK
OK
OK
OK
