(2) Response delay

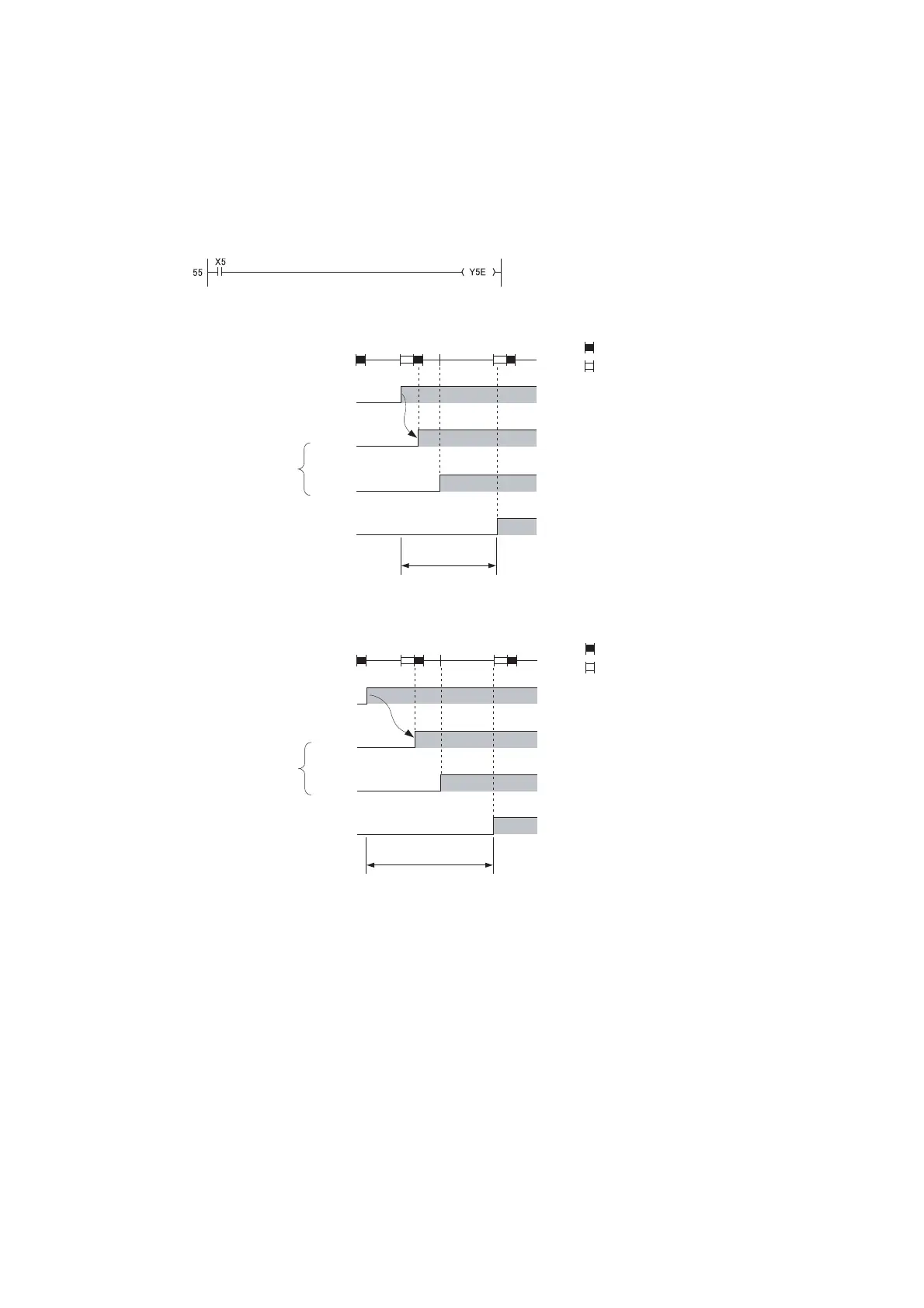

An output response which corresponds to the status change in the input module delays for two scans (maximum)
depending on the on timing of an external contact. The following shows response delay examples.
[Example]
• Y5E turns on at the earliest timing
• Y5E turns on at the slowest timing
A program that turns on the output Y5E
when the input X5 is turned on.
Delay time
(minimum 1 scan)
OFF
ON
0 END END00
: Input refresh
56
External contact
OFF
ON
X5
OFF
ON
Y5E
OFF
ON
External load
CPU module
devices
: Output refresh
Delay time
(maximum 1 scan)
OFF
ON
0 END END00
: Input refresh
56
External contact
OFF
ON
X5
OFF
ON
Y5E
OFF
ON
External load
CPU module
devices
: Output refresh
