MLC LC100 - Page 109

109
LC100 Instruction manual
NO

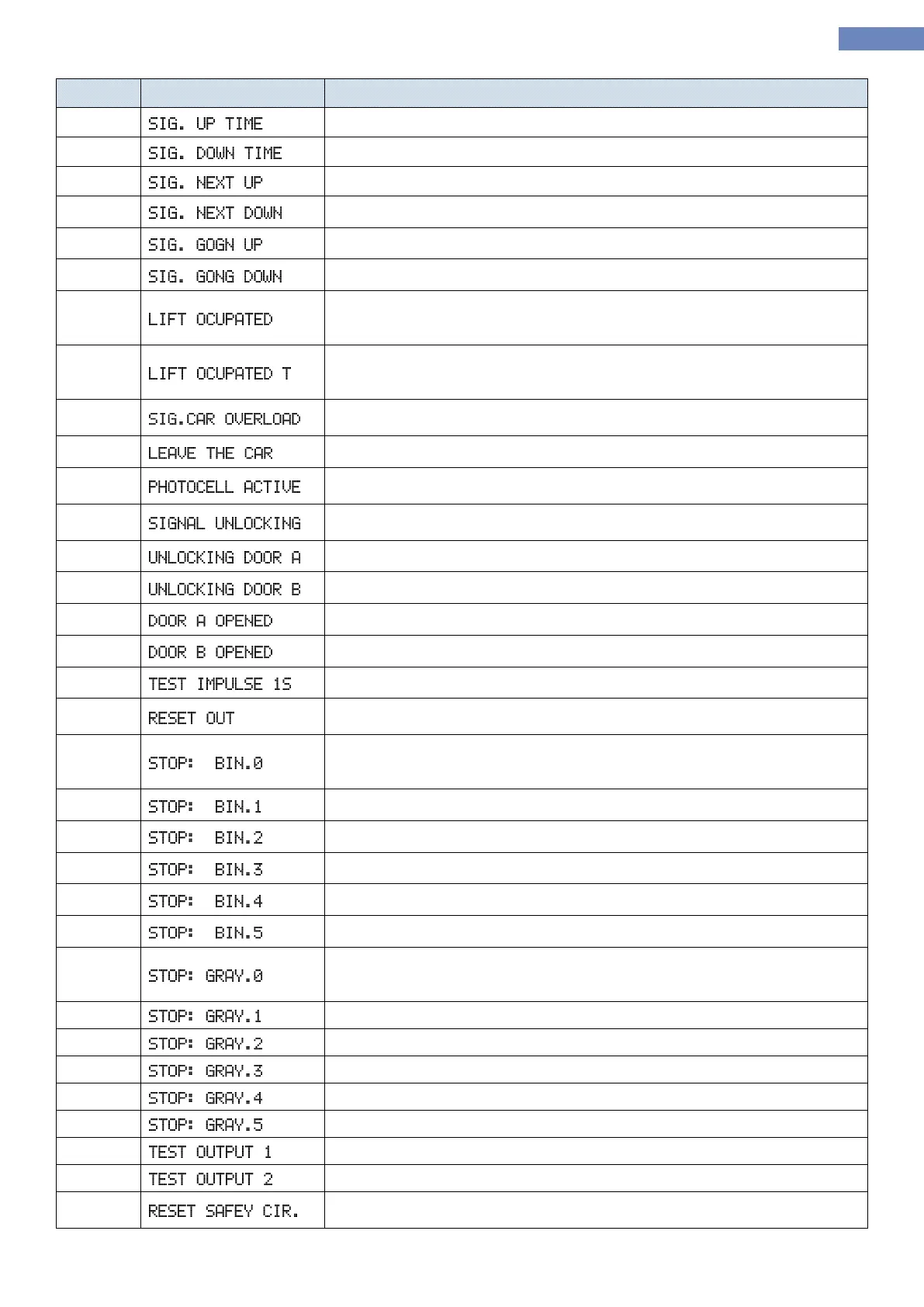

DYSPLAY ON LC100-D
DESCRIPTION
FO-062
Flashing reserved direction up signalization.
FO-063
Flashing reserved direction down signalization.
FO-064
Next drive up signalization.
FO-065
Next drive down signalization.
FO-068
Gong for next travel up.
FO-067
Gong for next travel down.
FO-068
Lift in use signalization. Function is used for single travel elevators, parameter
B-01=0. Function is activated when call is made, and is deactivated when
drive has ended and the time B-02 has expired.
FO-069
Flashing lift in use signalization. Function is used for single travel elevators,
parameter B-01=0. Function is activated when call is made, and is deactivated
when drive has ended and the time B-02 has expired.
FO-070
Car overload signalization. Function is active when input 100% load is active,
FI-242.
FO-071
Leave the car signalization.
FO-072
Photocell active signalization. Function is active when photocell side A, or side
B is active, inputs FI-263 or FI-273
FO-073
Signalization for unlocked landing door. Function is used when having
semiautomatic landing doors.
FO-074
Output function for door A unlocking device.
FO-075
Output function for door B unlocking device.
FO-076
Output function, active when door A is opened.
FO-077
Output function, active when door B is opened.
FO-078
Output function pulsating 1s „on“ 1s „off“
FO-079
Output function for reset, active when reset button on LC100-D keypad is
pressed.
FO-080
Cabin position output – binary code bit 0. It is used for car position
signalization the way that binary outputs are active for the active floor
according to the ADRESS TABLE.
FO-081
Cabin position output – binary code bit 1.
FO-082
Cabin position output – binary code bit 2.
FO-083
Cabin position output – binary code bit 3.
FO-084
Cabin position output – binary code bit 4.
FO-085
Cabin position output – binary code bit 5.
FO-086
Cabin position output – gray code bit 0. It is used for car position signalization
the way that binary outputs are active for the active floor aording to the GRAY
CODE TABLE
FO-087
Cabin position output – gray code bit 1.
FO-088
Cabin position output – gray code bit 2.
FO-089
Cabin position output – gray code bit 3.
FO-090
Cabin position output – gray code bit 4.
FO-091
Cabin position output – gray code bit 5.
FO-092
Output function which is activated when input function FI-301 are activated.
FO-093
Output function which is activated when input function FI-302 are activated.
FO-094
Output function for reset safety chain. Activate only if is EN81(A3) error
present.
