LC100 Instruction manual

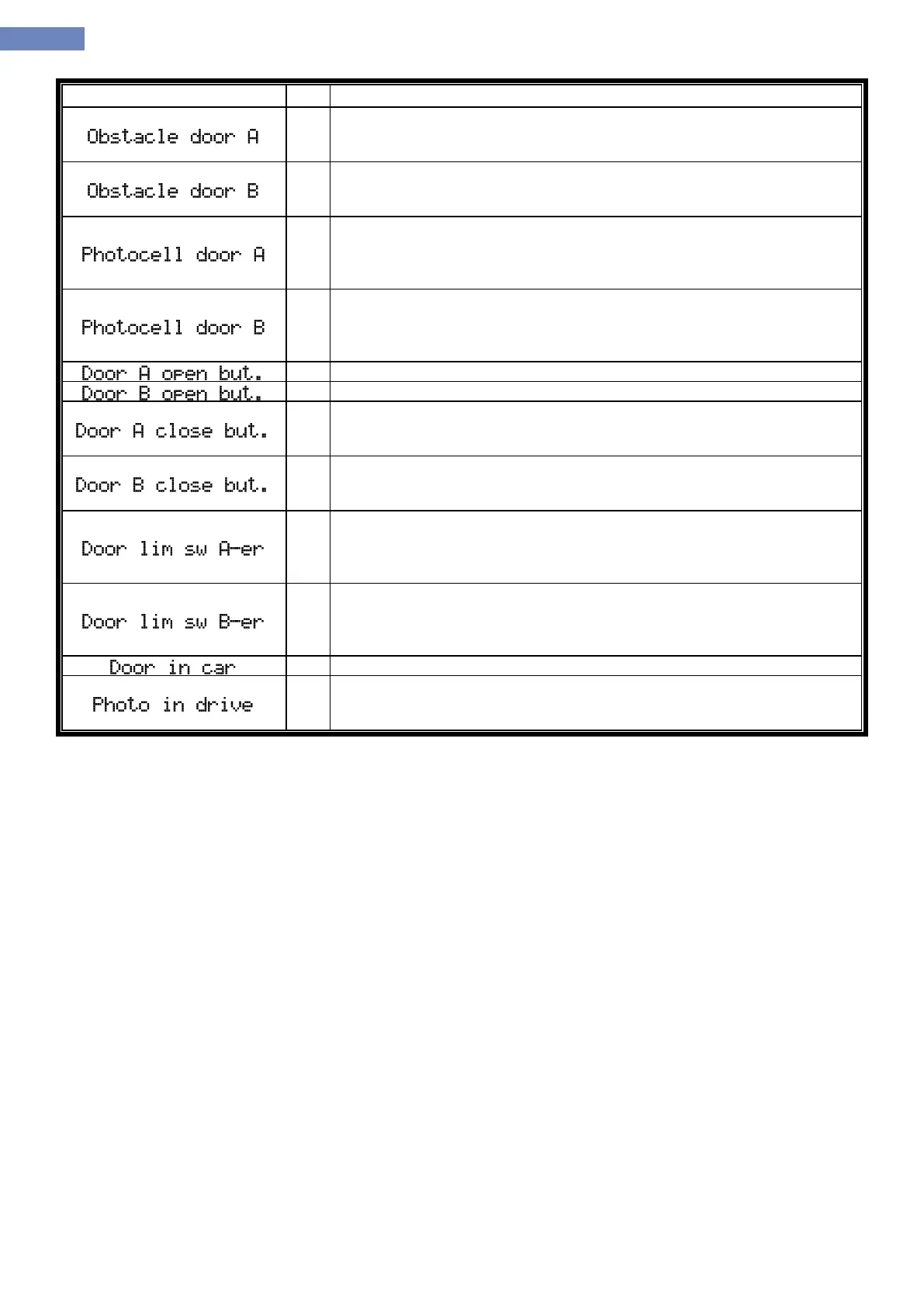

Screen messages
ID
Description
78
Indicates an obstacle signal too long (>30s) while closing door A FI-262. The
message is information about input state, elevator is holding the door open
until signal deactivation. Function is off during inspection travel.
79
Indicates an obstacle signal too long (>30s) while closing door B FI-272. The
message is information about input state, elevator is holding the door open
until signal deactivation . Function is off during inspection travel.
80
Indicates a photocell signal active on side A, FI-263. If there is fireman
program active photocell input is ineffective. The message is information
about input state FI-263, elevator is holding the door open until signal
deactivation .
81
Indicates a photocell signal active on side B, FI-273. If there is fireman
program active photocell input is ineffective. The messege is information
about input state FI-273, elevator is holding the door open until signal
deactivation.
82
Indicates a open door A button signal active FI-264.
83
Indicates a open door B button signal active FI-274.
84
Indicates a close door A button signal active FI-265 for longer than 30
seconds. The message is information for user, control sets standard exit time
at stop D-30=0.0 seconds.
85
Indicates a close door B button signal active FI-275 for longer than 30
seconds. The message is information for user, control sets standard exit time
at stop D-30=0.0 seconds.
86
The message is information that the door A is both on end-switch open and
end-switch close (active inputs FI-260 and FI-261). Door A stops and the
elevator is blocked until logic input state is established (door can be on one
end-switch only). Function is off during inspection travel.
87
The message is information that the door B is both on end-switch open and
end-switch close (active inputs FI-270 and FI-271). Door B stops and the
elevator is blocked until logic input state is established (door can be on one
end-switch only). Function is off during inspection travel.
89
Indicates that the input for door in the car is active. Function FI-246.
90
Indicates that the photocell signal FI-263 or FI-273 interrupted during travel
if there is no automatic car door. Cabin call can start elevator. After activating
alarm elevator can't be started over landing calls before reseting.
