T200 User's Manual SECTION 3: WIRING AND INSTALLATION
PAGE 3-72

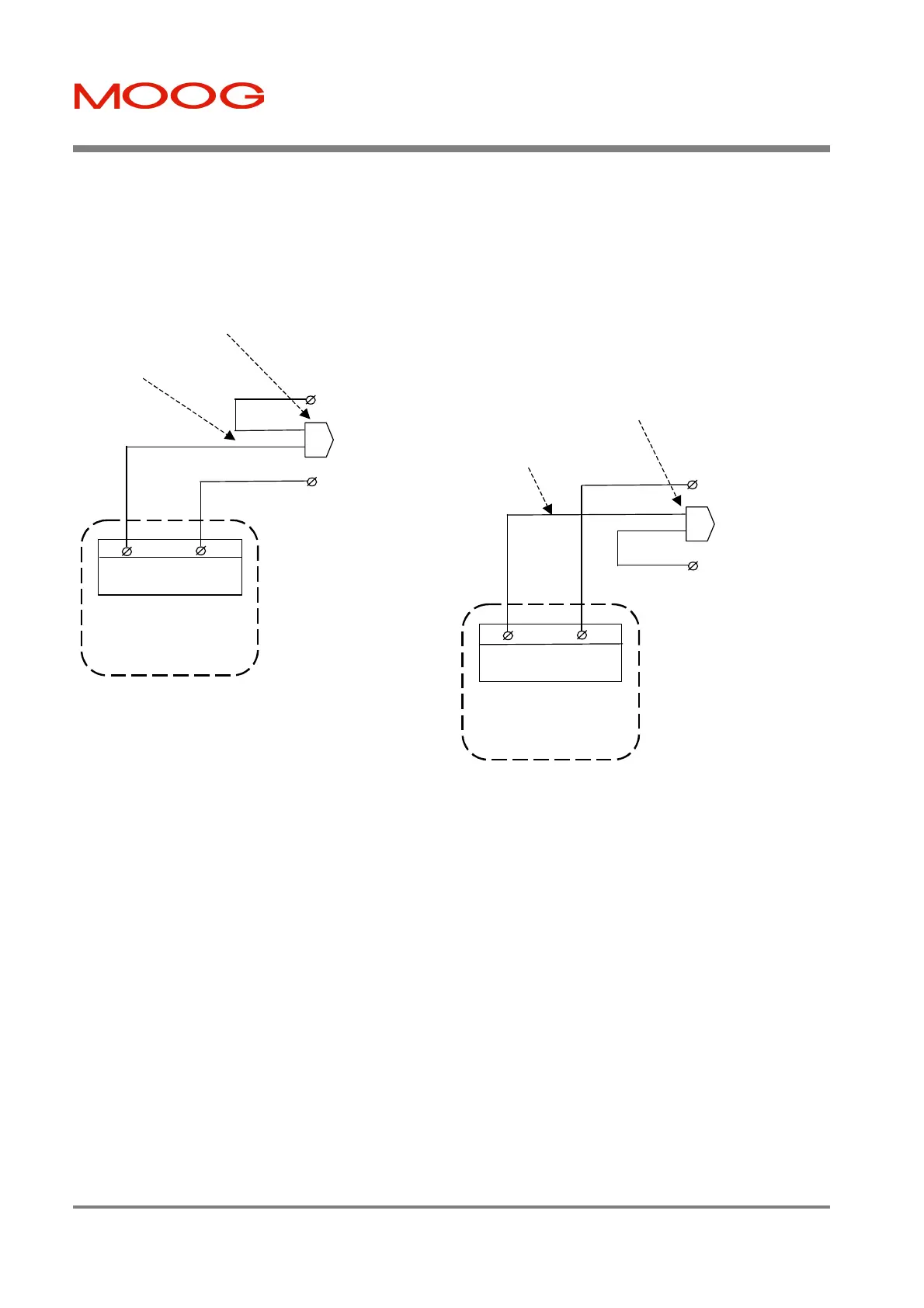

§ Figure 3.42 shows options for connection in pull-up or pull-down mode. Note that all outputs must be used in the
same mode for each T200.
OR
18
Digital Output O_COMMON
Connector J1
T200-XX0
26AWG (0.15mm
2
) Wiring
User-PSU
24V+
User Input
24V-
User's
pulled-down
input
18
Digital
Output O_COMMON
Connector J1
T200-XX0
26AWG (0.15mm
2
) Wiring
User-PSU
24V+
User Input
24V-
User's pulled-up input
Figure 3.42:- T200 Pull-Up or Pull-Down Options for Digital Outputs on J1
