Moog T200 - Analog Torque Limiting in Velocity Mode; Velocity Mode Functional Block Diagram

T200 User's Manual SECTION 6: T200 FUNCTIONAL OVERVIEW
PAGE 6-38
6.7.2.6 Analog Torque Limiting in Velocity Mode
The Analog Torque Limit functions in exactly the same way in velocity mode, as it does in torque mode. See Section
6.7.1.6 Analog Torque Limiting in Torque Mode.
6.7.2.7 Velocity Mode Functional Block Diagram

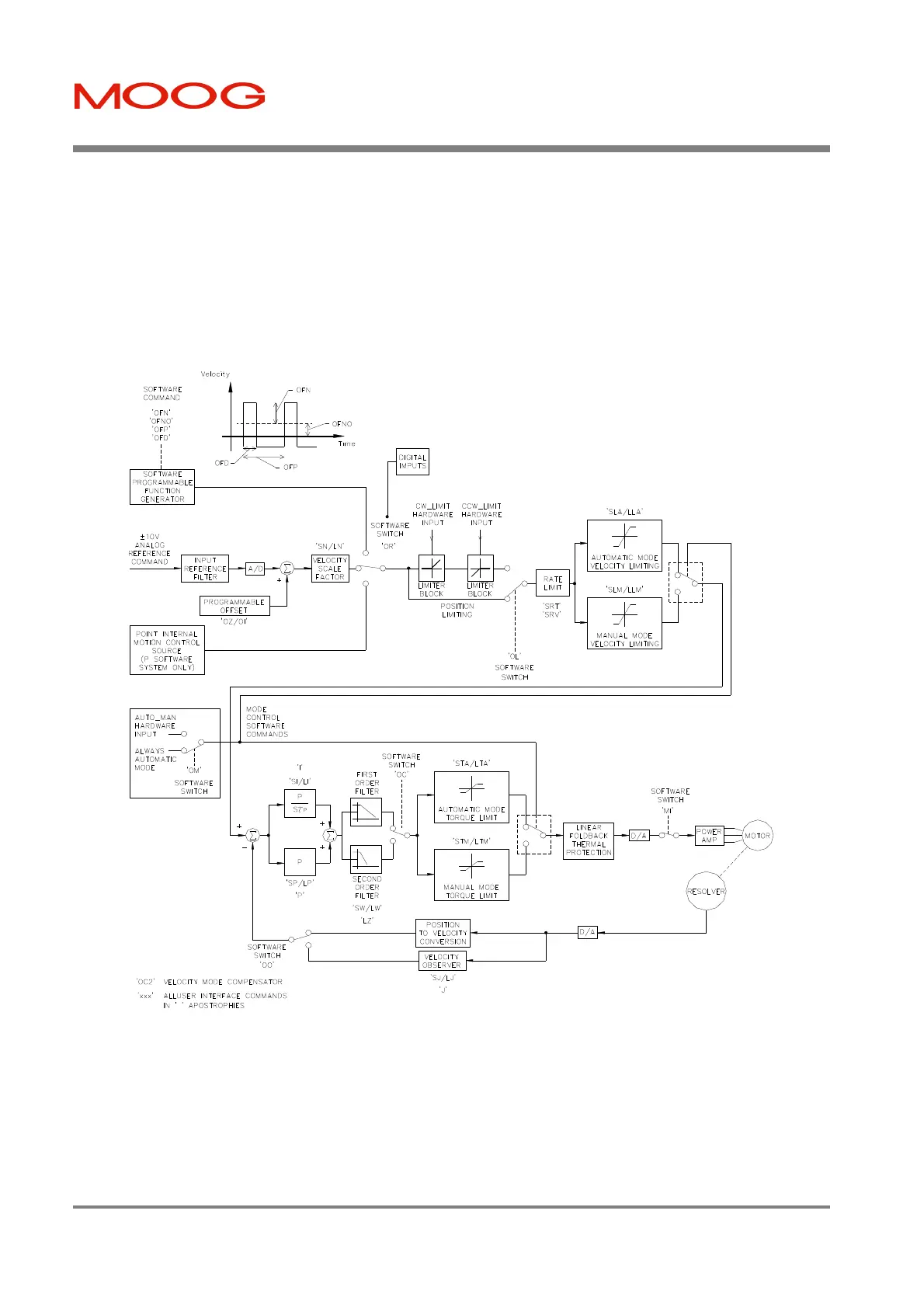

Figure 6.19:- Velocity Mode Block Diagram
