T200 User's Manual SECTION 4: MOTOR GUIDE
PAGE 4-20

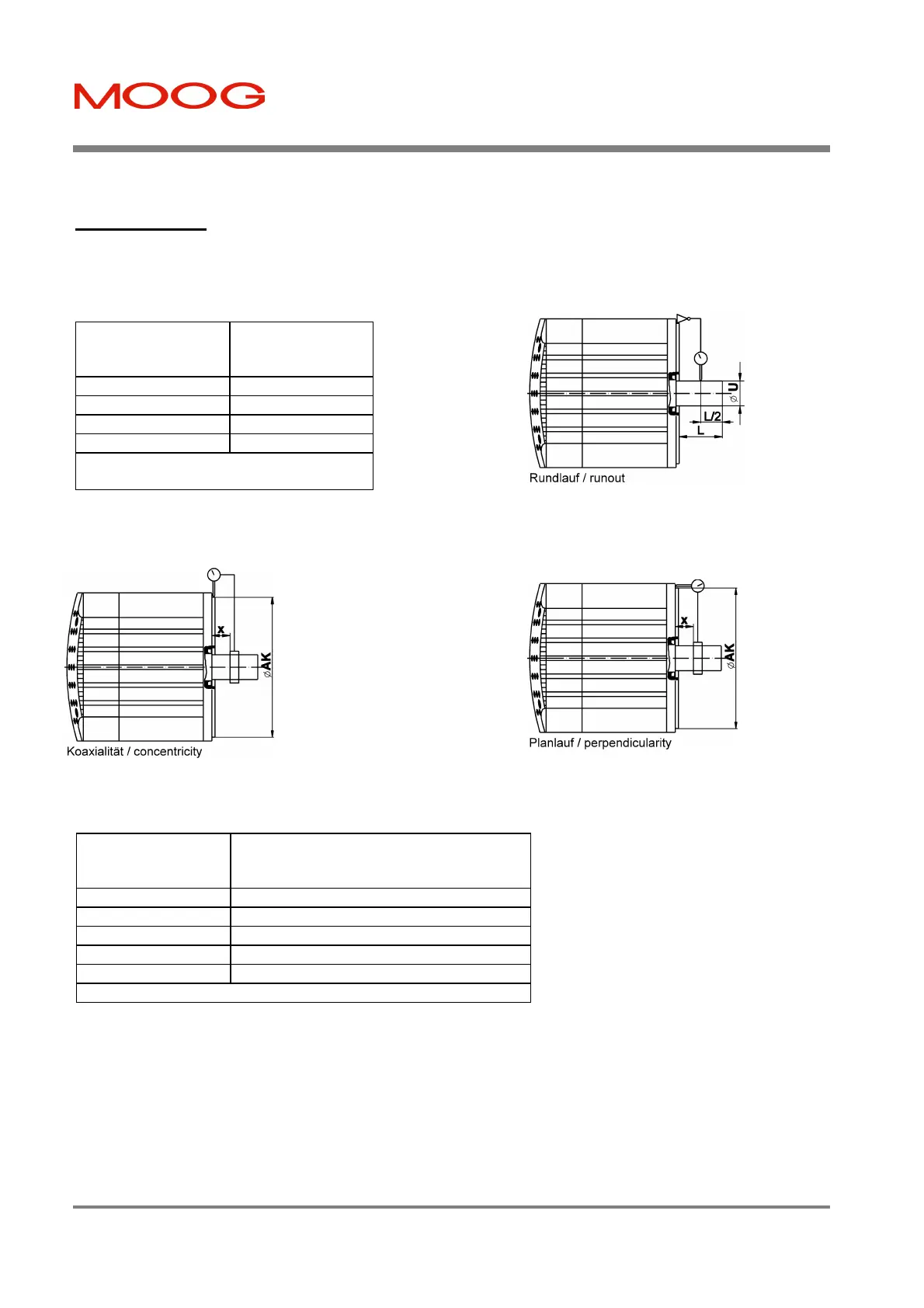

4.6.5 Runout
The reduced runout provided by MOOG motors allows the attachment of various gear heads. The precision
manufacturing of the motor avoids loads caused by misalignments between motor and gear heads.
Table 4.7 Shaft Runout
Table 4.8 Flange Concentricity/Perpendicularity
Diameter of the Shaft
Extension
øU [mm]
Maximum Runout
Tolerance Class R
[mm]
to 10 0.015
over 10 to 18 0.018
over 18 to 30 0.021
over 30 to 50 0.025
L=AH
see Table 4.6
Pilot Diameter of
Mounting Flange
øAK [mm]
Maximum Concentricity and
Perpendicularity
Tolerance Class R [mm]
to 22 0.025
over 22 to <40 0.03
40 to 100 0.04
over 100 to 230 0.05
over 230 to 450 0.063
for øAK values)
