SECTION 3: WIRING AND INSTALLATION T200 User's Manual
PAGE 3-13
3.1.8 Mating Connectors, Cables and Wiring
Moog can provide the necessary cabling for interconnect of the motor to the T200. See Section 3.14 for details. Moog
also provides the following accessory cabling for interconnection of individual T200's:-
Function Description Length
between
Blocks
Overview Diagram Moog Part
Number
3-Axis System
T200-3/4/510
AC Mains Input
Connectors
Two AC Mains Blocks provided.
The User must provide the AC
Mains Input Block for the first
T200, as well as wire the AC
Mains input.
150mm C08455-003
4-Axis System
T200-3/4/510
AC Mains Input
Connectors
Three AC Mains Blocks provided.
The User must provide the AC
Mains Input Block for the first
T200, as well as wire the AC
Mains input.
150mm C08455-004
3-Axis System
T200-3/4/510
DC Bus Bridge
Connectors
The user may interconnect the
DC-Bus amongst 3 T200 units for
shared DC Bus power and
regeneration capability
150mm C08454-003
4-Axis System
T200-3/4/510
DC Bus Bridge
Connectors
The user may interconnect the
DC-Bus amongst 4 T200 units for
shared DC Bus power and
regeneration capability
150mm C08454-004
CAN to CAN
Connector
Connects CAN fieldbus
daisychain from T200 unit to the
next T200 unit.
180mm C08450-001
CAN
Termination
Connector
Terminates the CAN fieldbus
with a 120Ohm connector
C08449-002

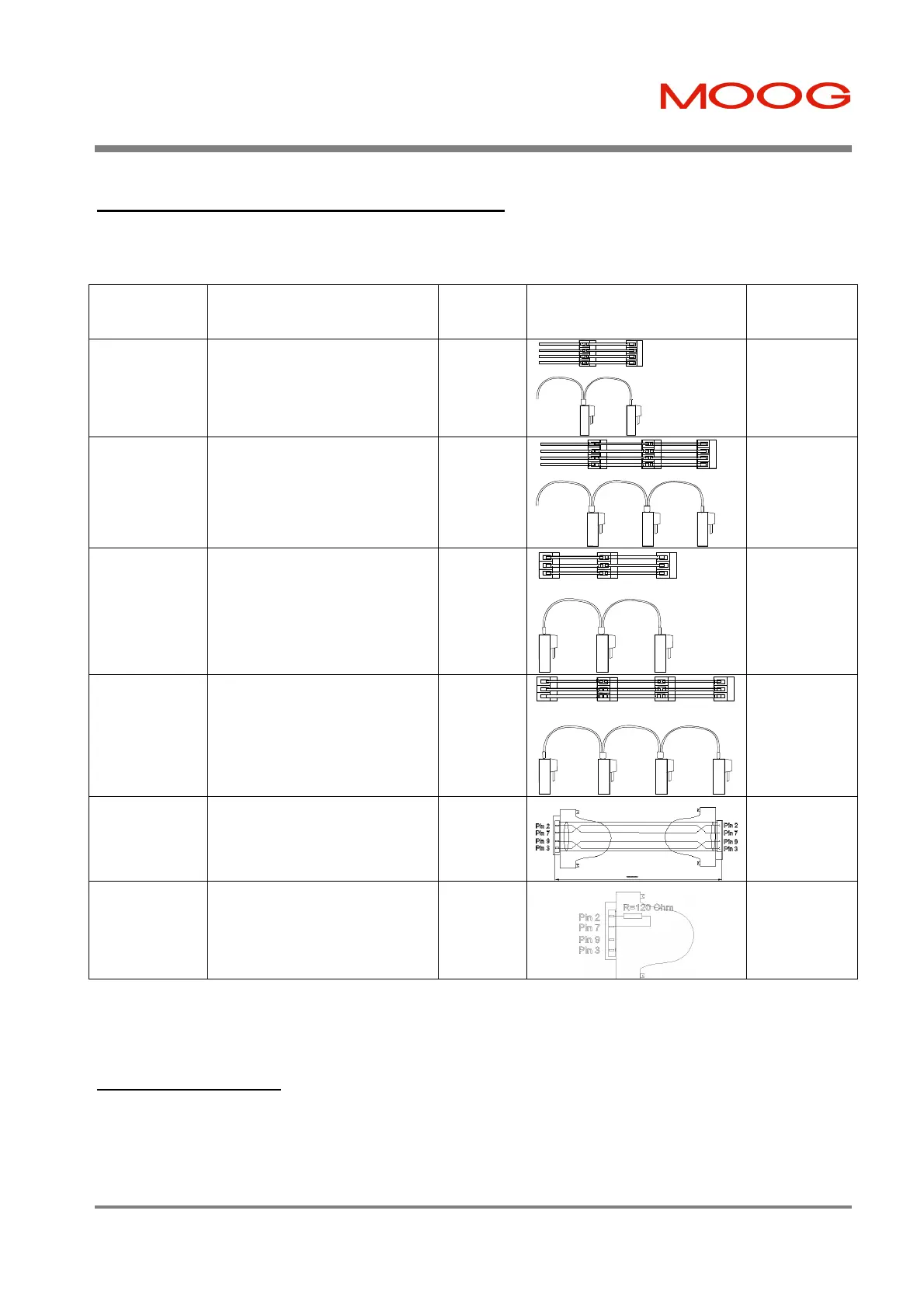

Table 3.2: T200 Accessory Cabling
All other cabling is user supplied.
3.1.9 Option Cards
The T200 incorporates an EF (extended functionality) slot for option cards, allowing for future system
expansion/enhancement. Contact Moog Sales Outlets for further information regarding option cards.
