2 - 10 MC40 Integrator Guide
Five Slot Universal Charge Only Cradle
The Five Slot Universal Charge Only Cradle:
•
Provides power for operating and charging the MC40.
•
Simultaneously charges up to five MC40s and provides mounting for a Four Slot Battery Charger.
•
Consists of a cradle base and optional cups that can be configured for various charging requirements.
•
Provides mounting for a Four Slot Battery Charger (requires separate power supply).

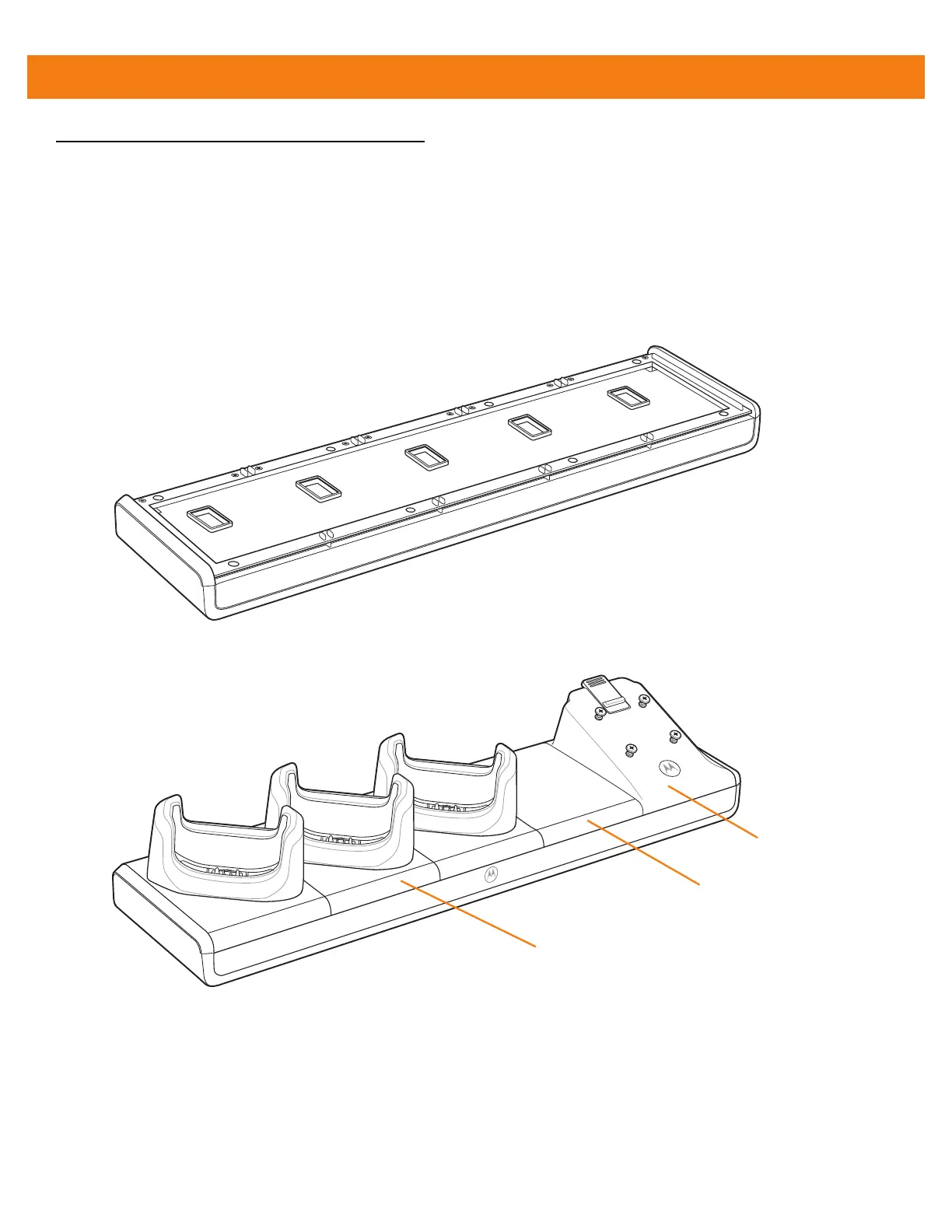

Figure 2-9
Five Slot Universal Charge Only Cradle Base
Figure 2-10
Five Slot Universal Charge Only Cradle with Cups
Cup Installation
The Five Slot Universal Charge Only Cradle ships without any cradle cups installed. To base accepts the MC40
Charging Cup, Battery Charger Cup and
Universal Blank Slot Cover.
To install the cradle cups:
1. Remove power from the cradle base before installing cups.
Charging Cup
Universal Blank Slot
Cover
Battery Charger
Cup
To Next Page
