4 - 22 MC40 Integrator Guide
•
Criteria - Criteria can be set according to Input plug-in, symbology, matching string within the data (at the
specified position) and/or data length. Received data must match the defined criteria in order for the data
to be processed.
•
Actions - A set of procedures defined to format data. There are four types of actions which are for
formatting cursor movement, data modification, data sending and delay specifications. An action can be
defined to send the first number of characters to the Output plug-in, pad the output data with spaces or
zeros, remove spaces in data, etc.
Configuring ADF Plug-in
Configuring the ADF plug-in consists of creating a rule, defining the criteria and defining the actions.
1. Touch > DataWedge.
2. Touch a DataWedge profile.
3. In Keystroke output, touch Advanced data formatting.

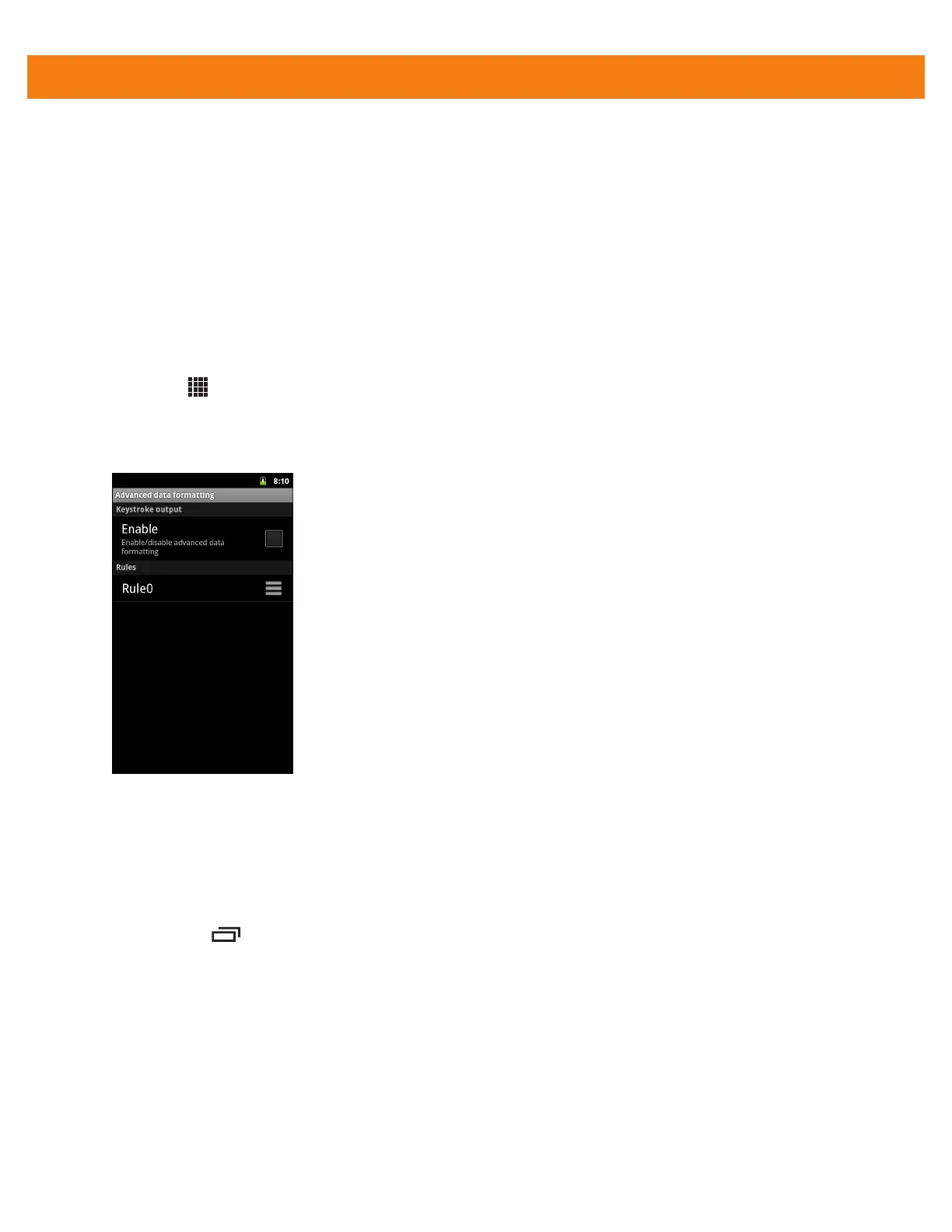

Figure 4-12
Advanced Data Formatting Screen
4. Touch the Enable checkbox to enable ADF.
Creating a Rule
By default, Rule0, is the only rule in the Rules list. To add a new rule:
1. Touch the > New rule.
2. Touch the Enter rule name text box. In the text box, enter a name for the new rule and then touch Done.
3. Touch OK.
To define the rule:
1. Touch the newly created rule in the Rules List.
