Motorola MC40 User Manual

DataWedge Configuration 4 - 23

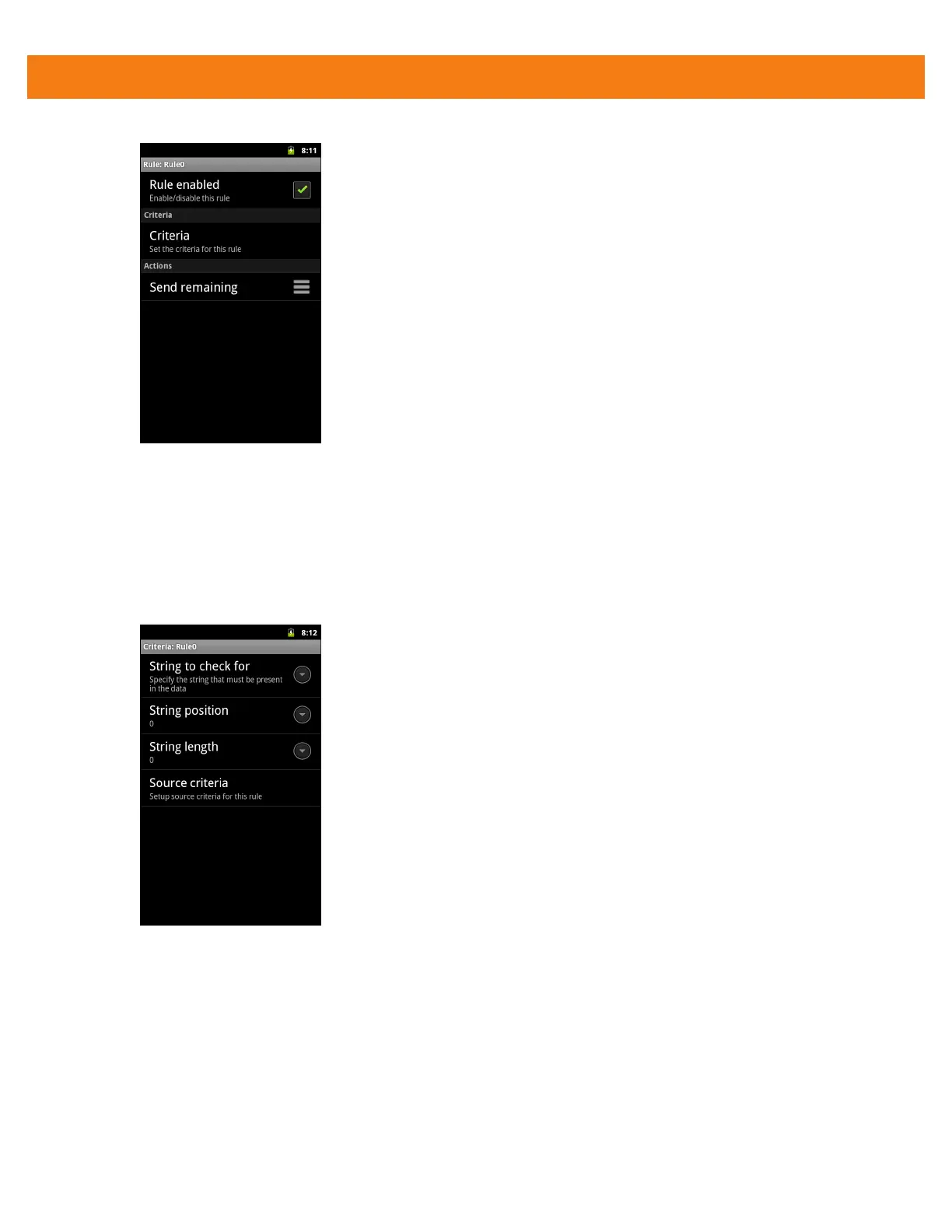

Figure 4-13 Rule Screen
2. Touch the Rule enabled checkbox to enable the current rule.
Defining Criteria
To define a criteria:
1. Touch Criteria. The Criteria screen appears.
Figure 4-14 Criteria Screen
2. Touch String to check for option to specify the string that must be present in the data.
3. In the Enter the string to check for dialog box, enter the string and then touch Done.
4. Touch OK.
5. Touch String position option to specify the position of the string specified in the String to check for
option. The ADF rule is only applied if the specific string in String to check for is found at the specified
String position location.
6. Touch the + or - to change the value.

Motorola MC40 Specifications

General

Brand	Motorola
Model	MC40
Category	Handhelds
Language	English
