4 - 4 MC65 User Guide
4. In the ESSID text box enter the ESSID.

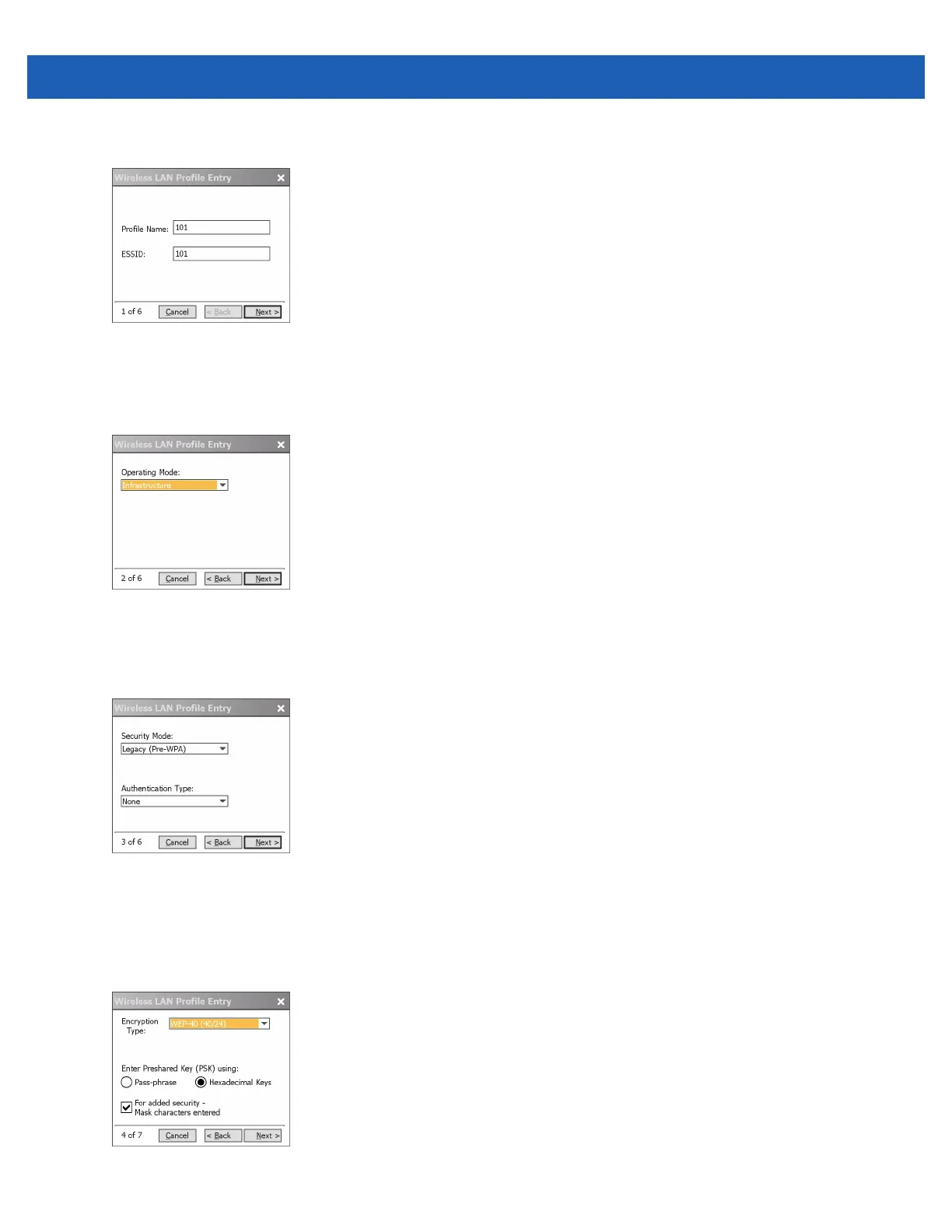

Figure 4-2 Profile ID Dialog Box
5. Tap Next. The Operating Mode dialog box displays.
6. In the Operating Mode drop-down list, select Infrastructure or Ad-hoc.
Figure 4-3 Operating Mode Dialog Box
7. Tap Next. The Security Mode dialog box displays.
8. In the Security Mode drop-down list, select Legacy (Pre-WPA).
Figure 4-4 Security/Authentication Dialog Box
9. In the Authentication drop-down list, select None.
10. Tap Next. The Encryption dialog box displays.
11. In the Encryption Type drop-down list, select WEP-40 (40/24).
Figure 4-5 Encryption Dialog Box
