a registration is denied when the system operator has
disabled the access of the radio to the system.
When a radio is denied registration, the yellow LED
double flashes to indicate a site search.
Zone and Channel Selections
This chapter explains the operations to select a zone
or channel on your radio.
The radio can be programmed with a maximum of
250 Capacity Max Zones with a maximum of 160
Channels per zone. Each Capacity Max zone
contains a maximum of 16 assignable positions.
Selecting Zones
Follow the procedure to select the required zone on
your radio.
Press the programmed Zone Toggle button.
One of the following tone sounds:
Positive Indicator Tone Radio is in Zone 2.
Negative Indicator Tone Radio is in Zone 1.
Selecting a Call Type

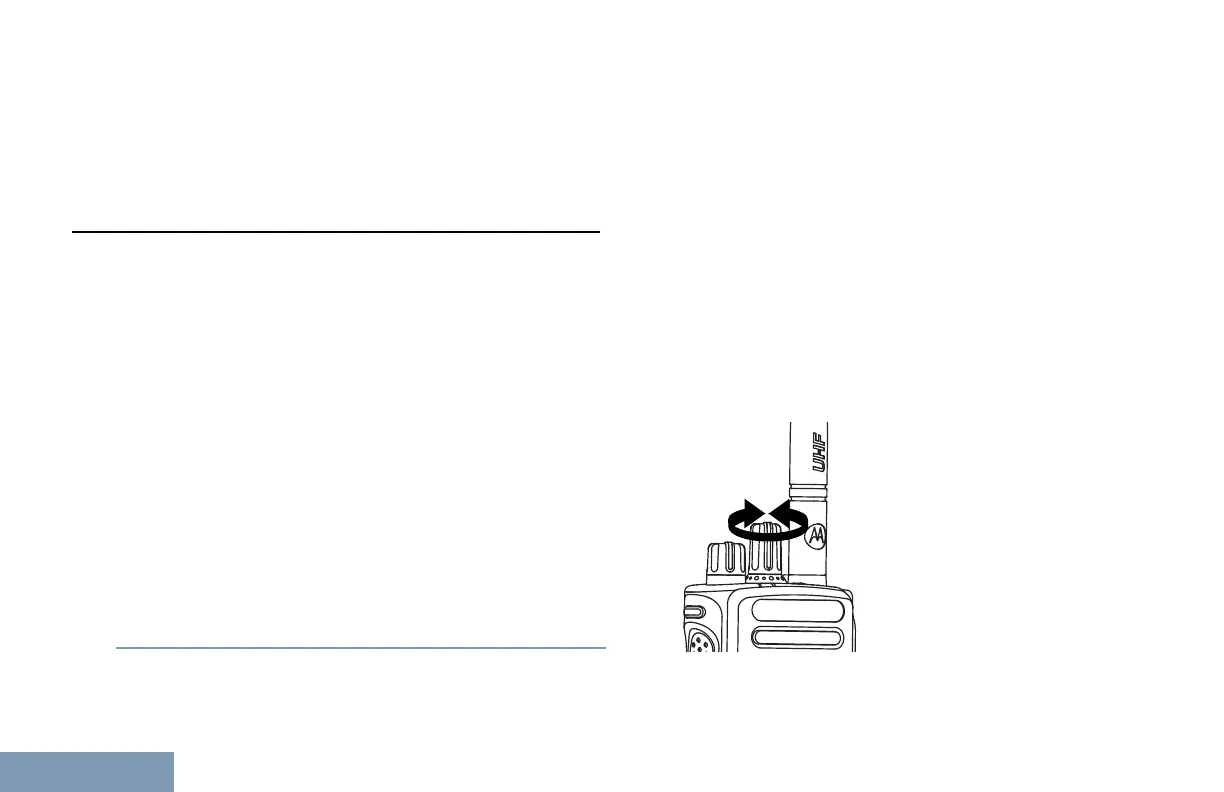

Use the Channel Selector Knob to select a call type.
This can be a Group Call, Broadcast Call, All Call, or
Private Call, depending on how your radio is
programmed. If you change the Channel Selector
Knob to a different position (that has a call type
assigned to it), this causes the radio to re-register
with the Capacity Max System. The radio registers
with the Talkgroup ID that has been programmed for
the new Channel Selector Knob position call type.
Your radio does not operate when selected to an
unprogrammed channel, use the Channel Selector
Knob to select a programmed channel instead.
