Moxa Technologies NPORT 6150 User Manual

NPort 6000 Series Software Installation/Configuration
13-12

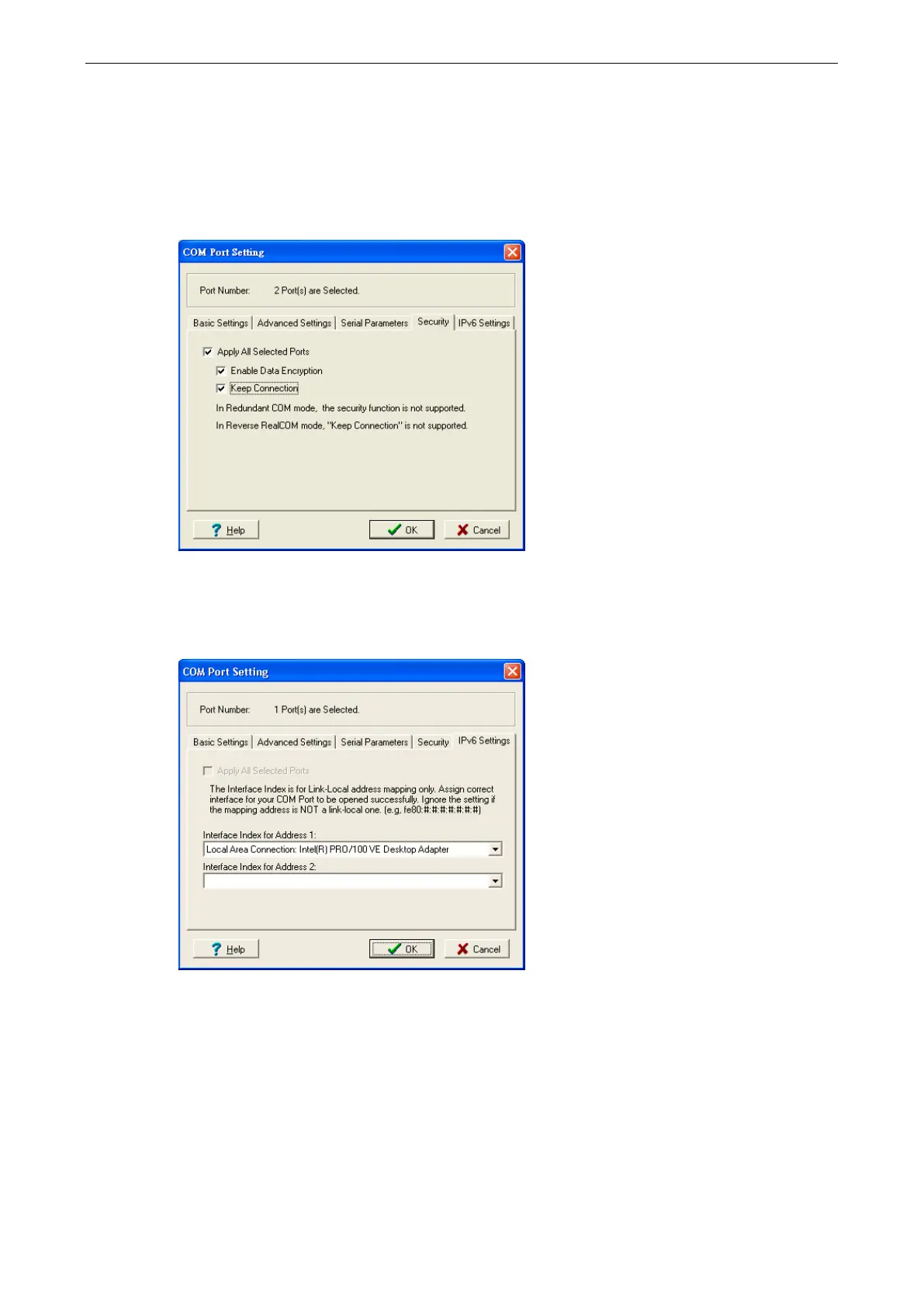

4. Click the Security tab to configure security settings. Select the Enable Data Encryption option to enable
data to be encrypted when transmitted over the COM ports. After selecting the encryption option, select the
Keep connection option to start encryption on COM ports immediately, without restarting the COM ports.
(If your application will open/close COM ports frequently and the NPort 6000 is only for one host, you can
enable this option to speed up the opening/closing time. However, this will result in your host tying up the
COM port so that other hosts cannot use it.) Select the Apply All Selected Ports option to enable the
security settings to be applied to all COM ports.
5. Click the IPv6 Setting tab to configure the interface for Link-Local address mapping. When the global IPv6
address is used, this function can be ignored. When the Link-Local IPv6 address is used, users should select
an interface for routing on interface index for address 1. The interface index for address 2 is for “redundant
COM mode,” which applies only to the CN2600 series.

Moxa Technologies NPORT 6150 Specifications

General

Display	-
Baud rate	921.6 Kbit/s
Data bits	5, 6, 7, 8
Isolation	1.5 kV
Stop bits	1, 1.5, 2
RS-232 signals	CTS, DCD, DSR, DTR, GND, RTS, Rx, Tx
RS-422 signals	GND, RxD+, RxD-, TxD+, TxD-
RS-485 signals	Data+, Data-, GND, RxD+, RxD-, TxD+, TxD-
Flow Control type	RTS/CTS, XON/XOFF
Flow control support	Yes
Serial interface type	RS-232, RS-422, RS-485
Serial ports quantity	1
Ethernet LAN data rates	10, 100 Mbit/s
Surge protection voltage	0.5 kV
Mean time between failures (MTBF)	2097705 h
Cabling technology	10/100Base-T(X)
USB 2.0 ports quantity	0
Built-in processor	No
Input voltage	12 - 48 V
Power consumption	285 mA
Power source type	DC
Storage temperature (T-T)	-40 - 75 °C
Maximum operating altitude	2000 m
Operating temperature (T-T)	0 - 55 °C
Operating relative humidity (H-H)	5 - 95 %
Supported network protocols	ICMP, IPv4/v6, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1/V2c/V3, HTTP, SMTP, ARP, PPPoE
Security algorithms	AES, DES, SSH, SSL/TLS
Product color	Black, Blue, Grey
Housing material	Metal
Sustainability certificates	RoHS

Weight and Dimensions

Weight	700 g
Dimensions (WxDxH)	67 x 100.4 x 29 mm
