MTC Air Conditioner - Insufficient Heating; Inspection Flow

To Next Page

To Previous Page

MTC-108

TROUBLE DIAGNOSIS

Revision: January 2005 2004 Quest

Insufficient Heating EJS001SR

SYMPTOM: Insufficient heating

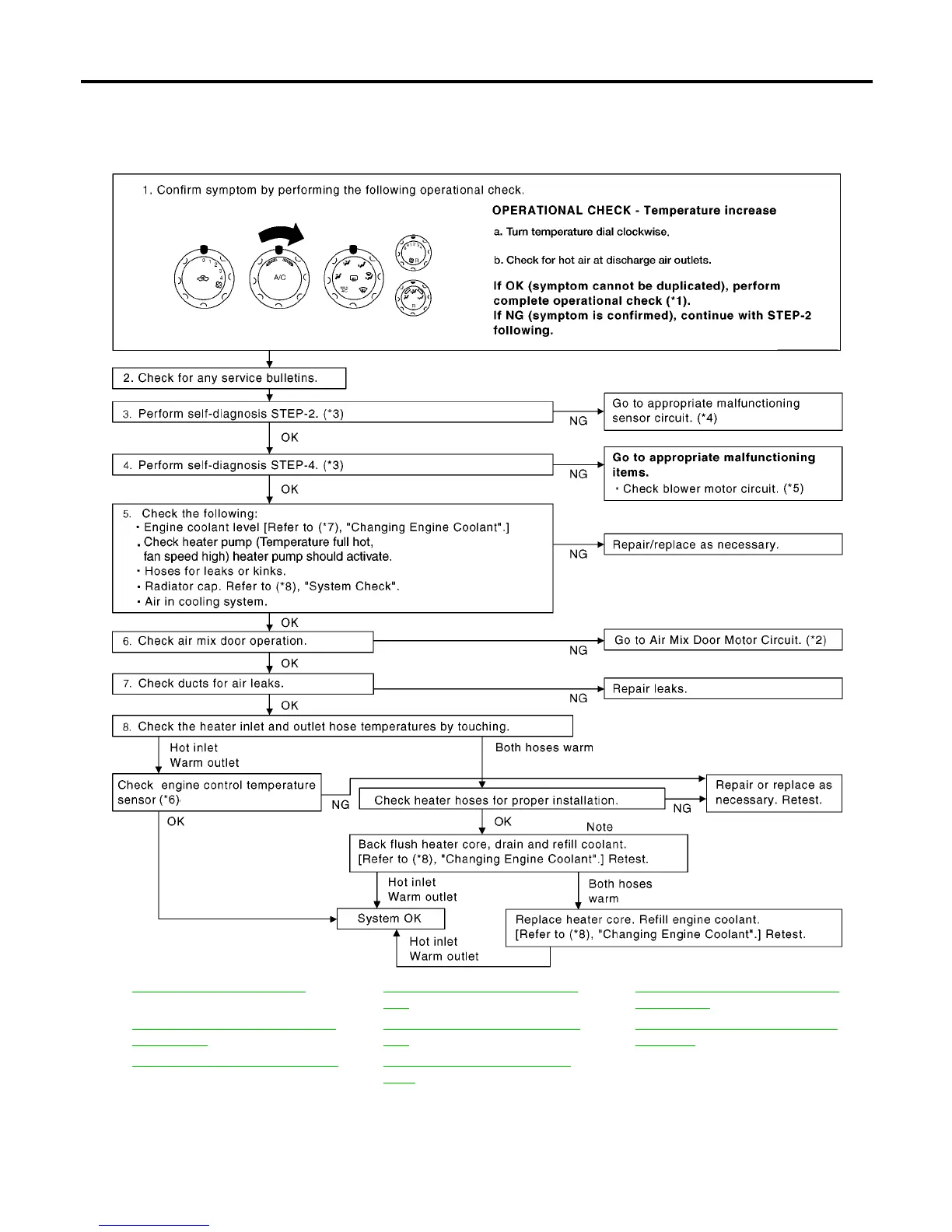

INSPECTION FLOW

*1 MTC-52, "Operational Check".*2MTC-61, "Air Mix Door Motor Cir-

cuit".

*3 MTC-50, "

A/C System Self-diagno-

sis Function".

*4 MTC-50, "

A/C System Self-diagno-

sis Function".

*5 MTC-72, "

Front Blower Motor Cir-

cuit".

*6 EC-187, "

DTC P0117, P0118 ECT

SENSOR".

*7 MA-14, "Changing Engine Coolant".*8 CO-9, "CHECKING RADIATOR

CAP".

WJIA1030E
