MTC-118

INTAKE SENSOR

Revision: January 2005 2004 Quest

INTAKE SENSOR PFP:27723

Removal and Installation EJS001T3

Intake Sensor

REMOVAL

1. Remove the instrument lower panel RH and glove box. Refer to IP-13, "Instrument Lower Panel RH and

Glove Box" .

2. Disconnect the intake sensor electrical connector.

3. Twist and pull the intake sensor to remove the intake sensor from the front heater and cooling unit assem-

bly.

INSTALLATION

Installation is in the reverse order of removal.

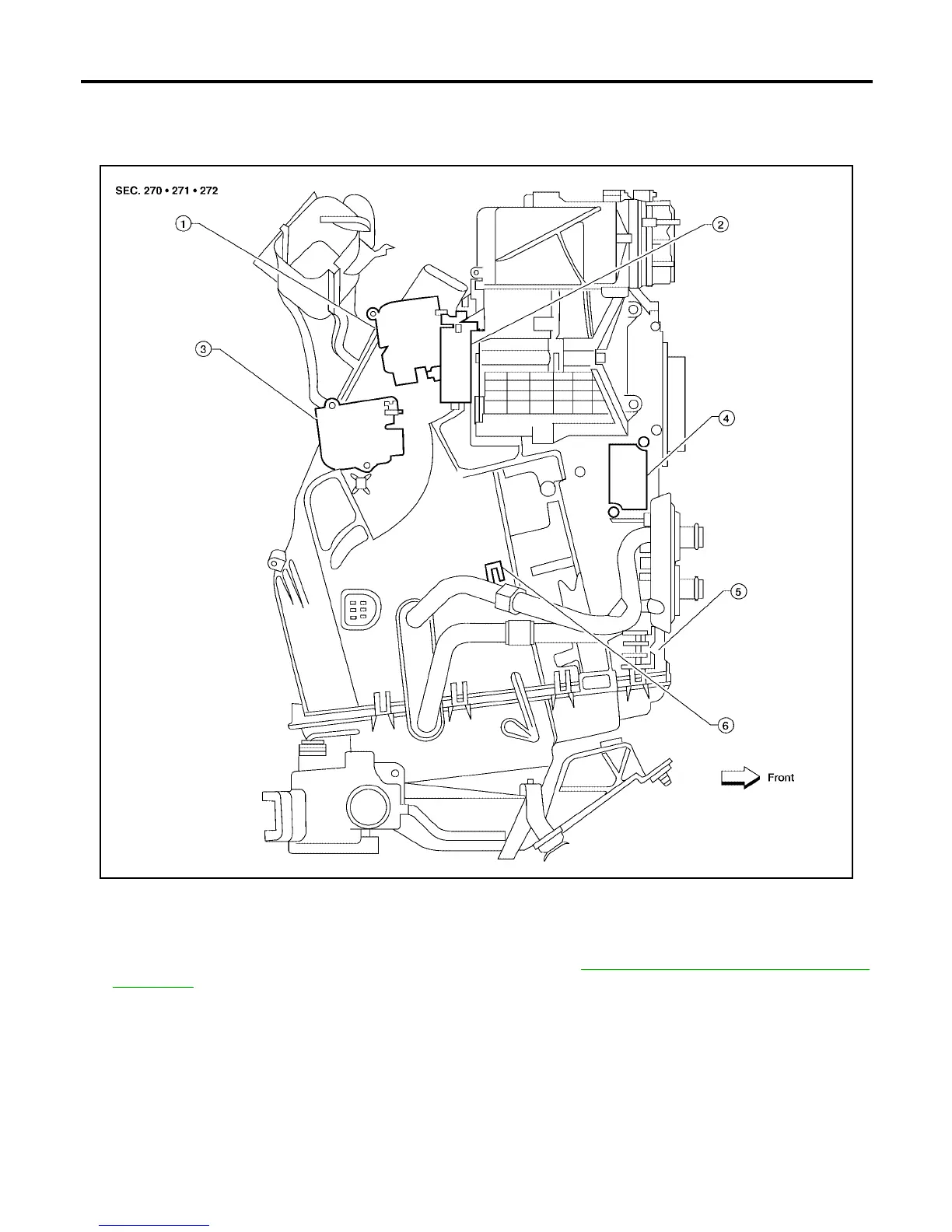

WJIA0513E

1. Defroster door motor 2. Intake door motor (passenger) 3. Mode door motor

4. Front blower motor resistor 5. Front heater and cooling unit assembly 6. Intake sensor
