HEATER CORE
MTC-127
C
D
E
F
G
H
I
K
L
M
A
B
MTC
Revision: January 2005 2004 Quest
4. Remove heater core and evaporator case bottom cover.
5. Remove the blower motor case.
6. Remove the front heater core.
NOTE:
If the in-cabin microfilters are contaminated from coolant leaking
from the heater core, replace the in-cabin microfilters with new
ones before installing the new front heater core.
7. Installation is in the reverse order of removal.
REAR HEATER CORE
1. Partially drain the engine cooling system. Refer to MA-14, "DRAINING ENGINE COOLANT" .
2. Remove the rear RH interior trim panel. Refer to EI-30, "
Removal and Installation" .
3. Disconnect the rear heater core hoses from the rear heater core.
4. Remove the rear heater core bracket.
5. Remove the rear heater core.
6. Installation is in the reverse order of removal.

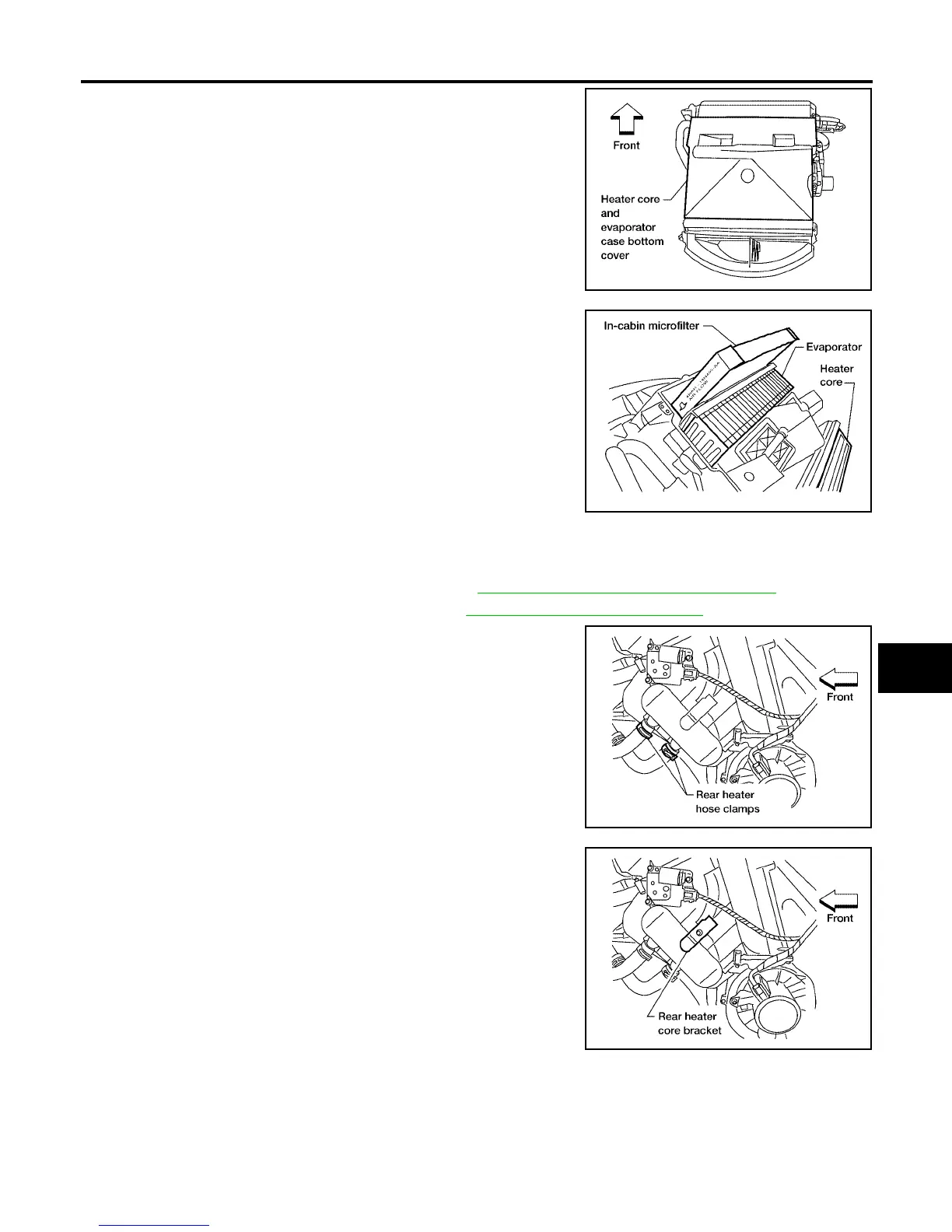

LJIA0018E
