Removal and Installation for Front Evaporator EJS001TQ
Front Heater and Cooling Unit Assembly
REMOVAL
1. Remove the front heater and cooling unit assembly. Refer to MTC-123, "FRONT HEATER AND COOL-
ING UNIT ASSEMBLY" .
2. Remove the blower motor side cover.
3. Remove the front blower motor.
4. Remove the heater core and evaporator case bottom cover.
5. Remove the blower motor case.

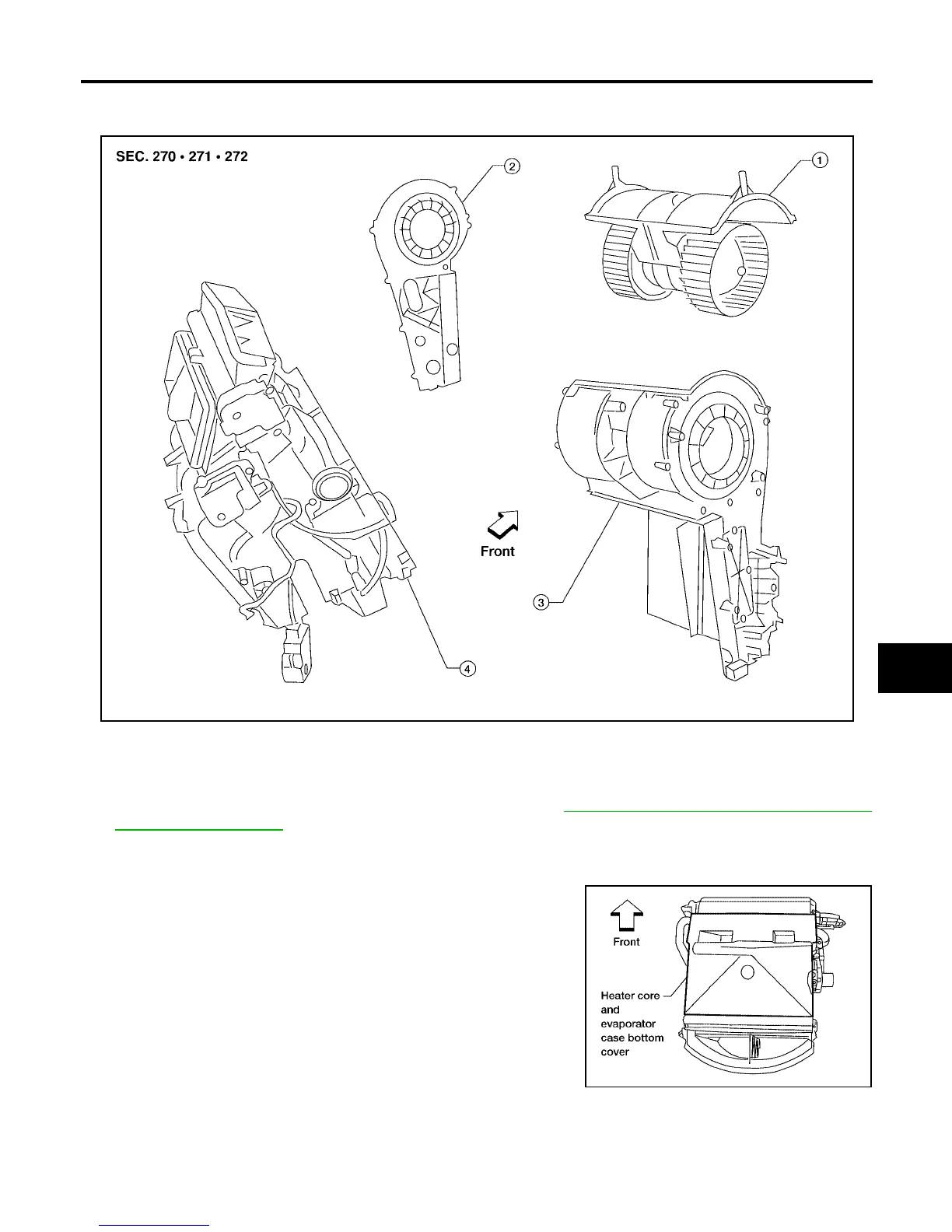

LJIA0017E
1. Front blower motor 2. Blower motor side cover 3. Blower motor case
4. Heater core and evaporator case
LJIA0018E
