MTC Air Conditioner - Removal and Installation; Driver Side

INTAKE DOOR MOTOR
MTC-131
C
D
E
F
G
H
I
K
L
M
A
B
MTC
Revision: January 2005 2004 Quest
Intake Door Motor (Passenger) - Front Heater and Cooling Unit Assembly
Removal and Installation EJS001TA
DRIVER SIDE
1. Remove the lower driver instrument panel. Refer to IP-12, "Instrument Lower Panel LH" .
2. Remove the center console trim panel. Refer to IP-10, "
Removal and Installation" .
3. Disconnect the intake door motor electrical connector.
4. Remove the three screws and remove the intake door motor.
5. Installation is in the reverse order of removal.
WJIA0513E

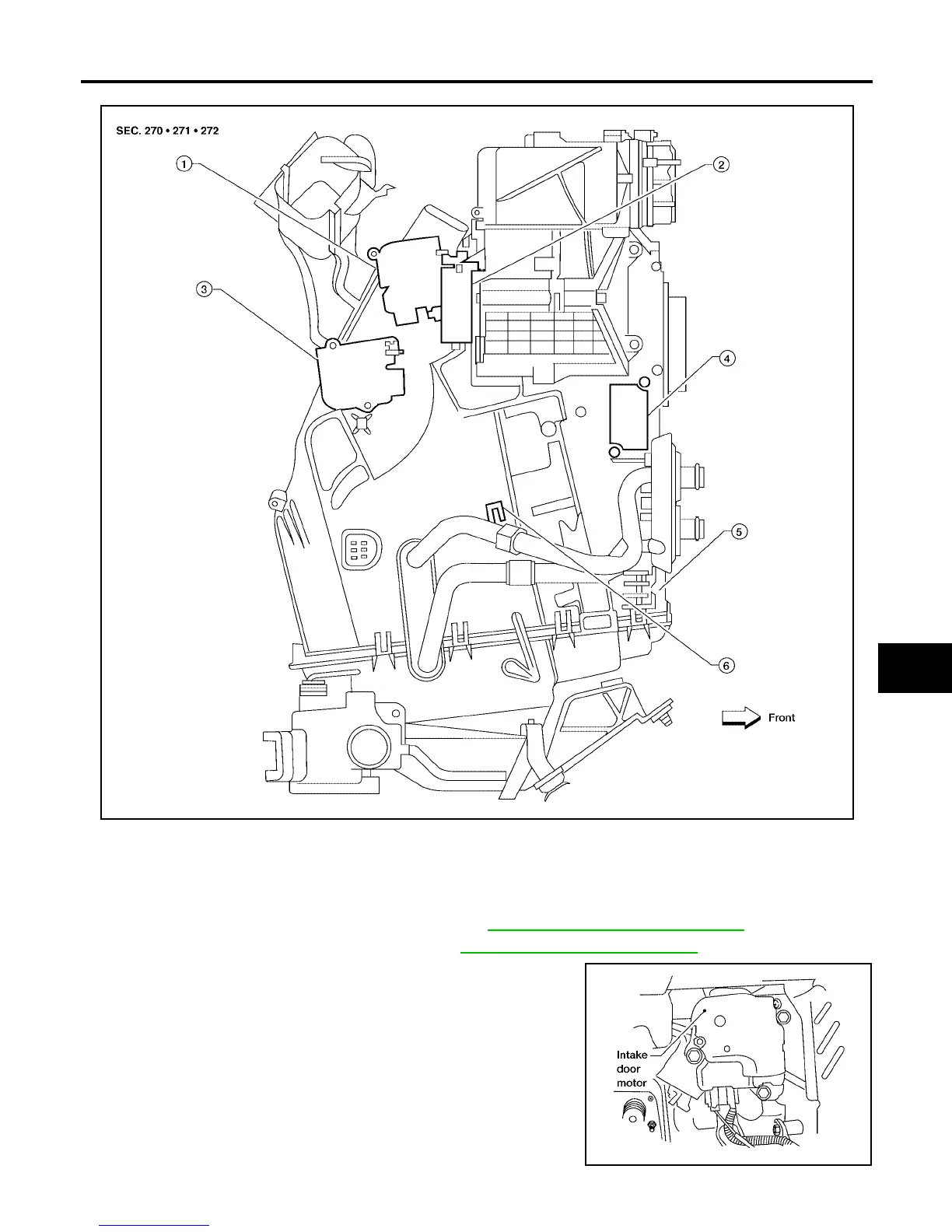

1. Defroster door motor 2. Intake door motor (passenger) 3. Mode door motor
4. Front blower motor resistor 5. Front heater and cooling unit assembly 6. Intake sensor
LJIA0082E
