HEATER PUMP PFP:92264
Removal and Installation EJS001T8
Heater Pump
REMOVAL
1. Remove the cowl top. Refer to EI-18, "COWL TOP" .
2. Partially drain the engine cooling system. Refer to MA-14, "
DRAINING ENGINE COOLANT" .
3. Remove the two heater pump clips securing the heater pump to
the cowl top extension.
4. Disconnect the heater pump electrical connector and the two
heater hoses, then remove the heater pump.
CAUTION:
Do not disassemble the heater pump, replace the heater
pump as an assembly.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
Do not disassemble the heater pump, replace the heater pump as an assembly.
LJIA0035E

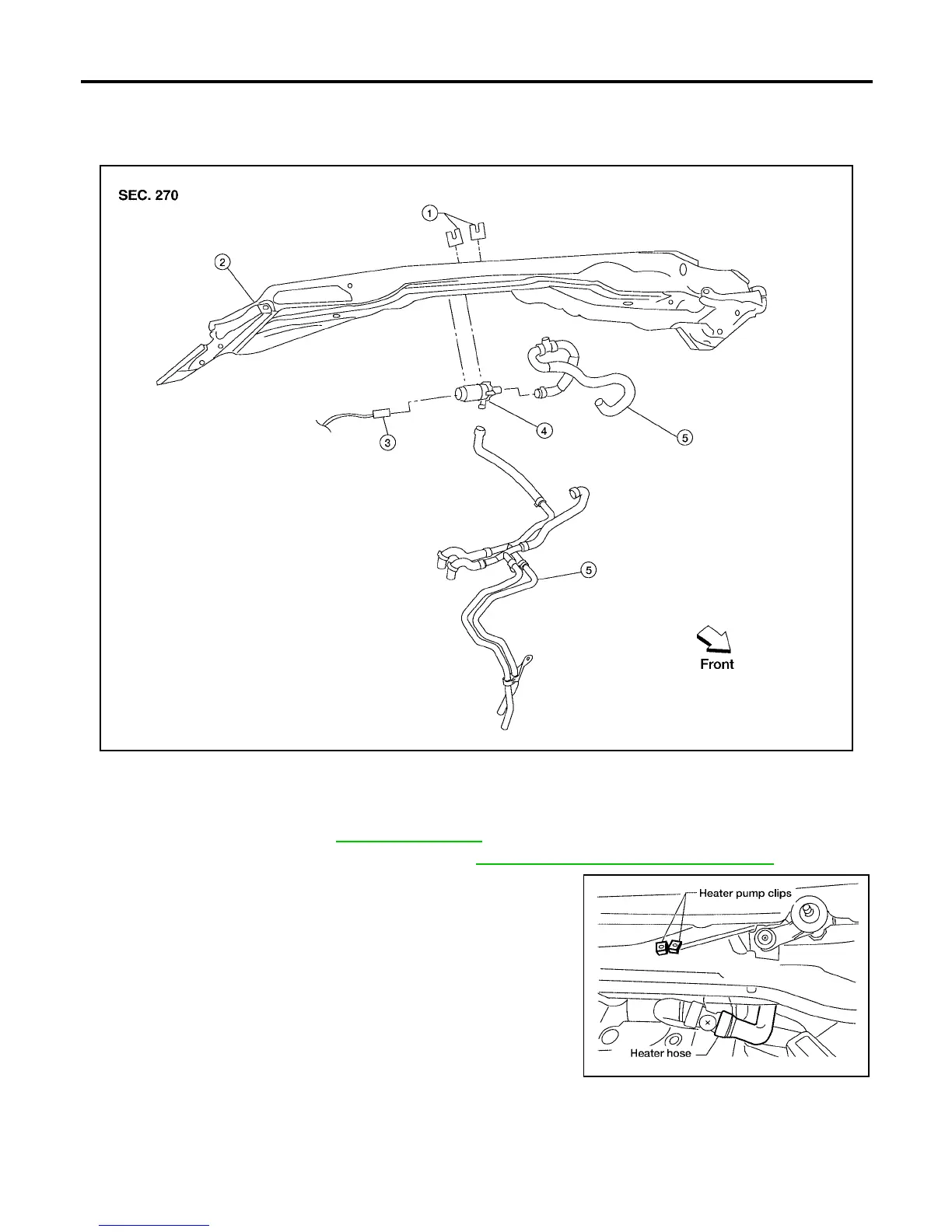

1. Heater pump clips 2. Cowl top extension 3. Heater pump electrical connector
4. Heater pump 5. Heater hoses
LJIA0036E
