MTC Air Conditioner - Air MIX Door Motor (Rear)

To Next Page

To Previous Page

MTC-136

AIR MIX DOOR MOTOR

Revision: January 2005 2004 Quest

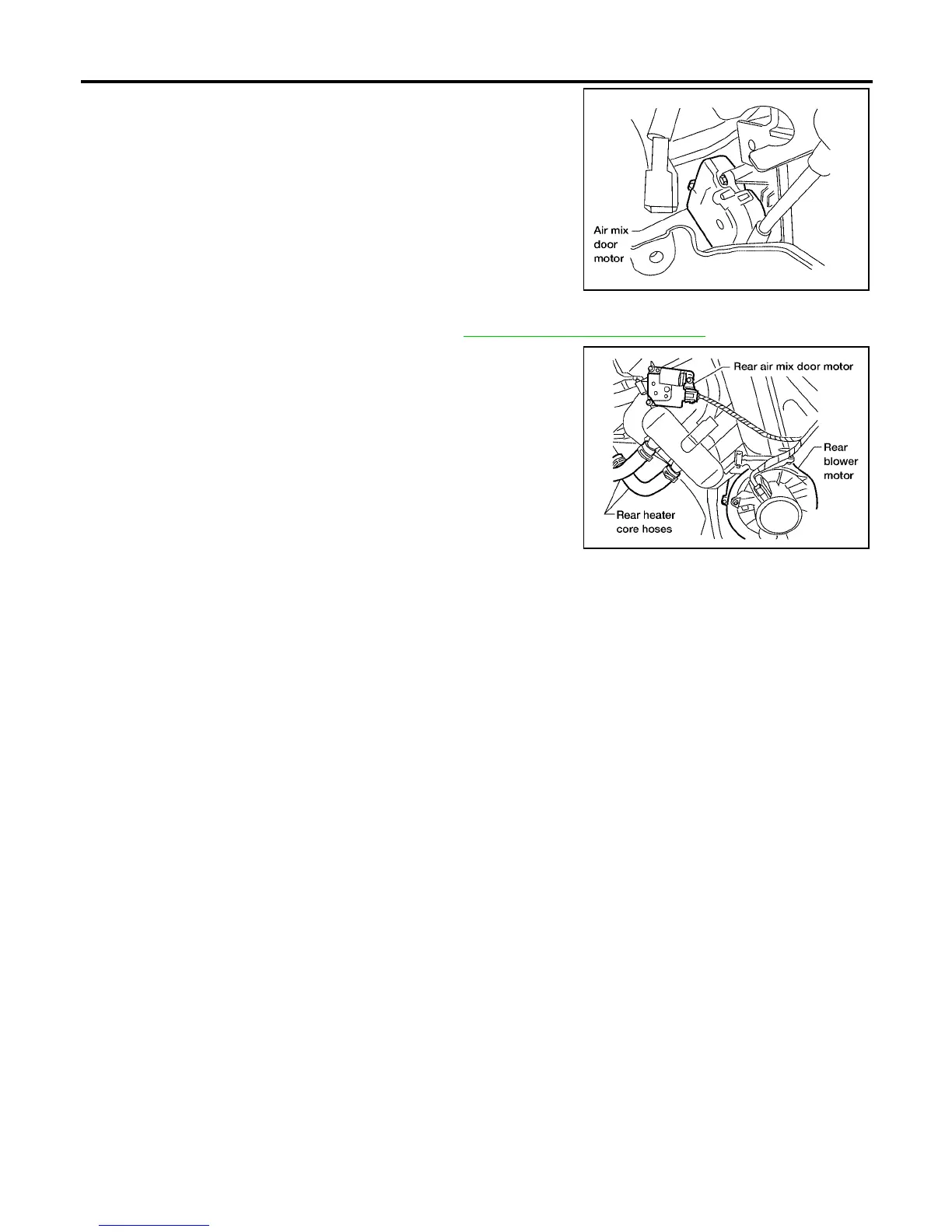

3. Disconnect the air mix door motor electrical connector.

4. Remove the three screws and remove the air mix door motor.

5. Installation is in the reverse order of removal.

AIR MIX DOOR MOTOR (REAR)

1. Remove the RH rear interior trim panel. Refer to EI-32, "RIGHT SIDE AND REAR" .

2. Disconnect the rear air mix door motor electrical connector.

3. Remove the three screws and remove the rear air mix door

motor.

4. Installation is in the reverse order of removal.

LJIA0084E

LJIA0021E
