COMPONENT INSPECTION

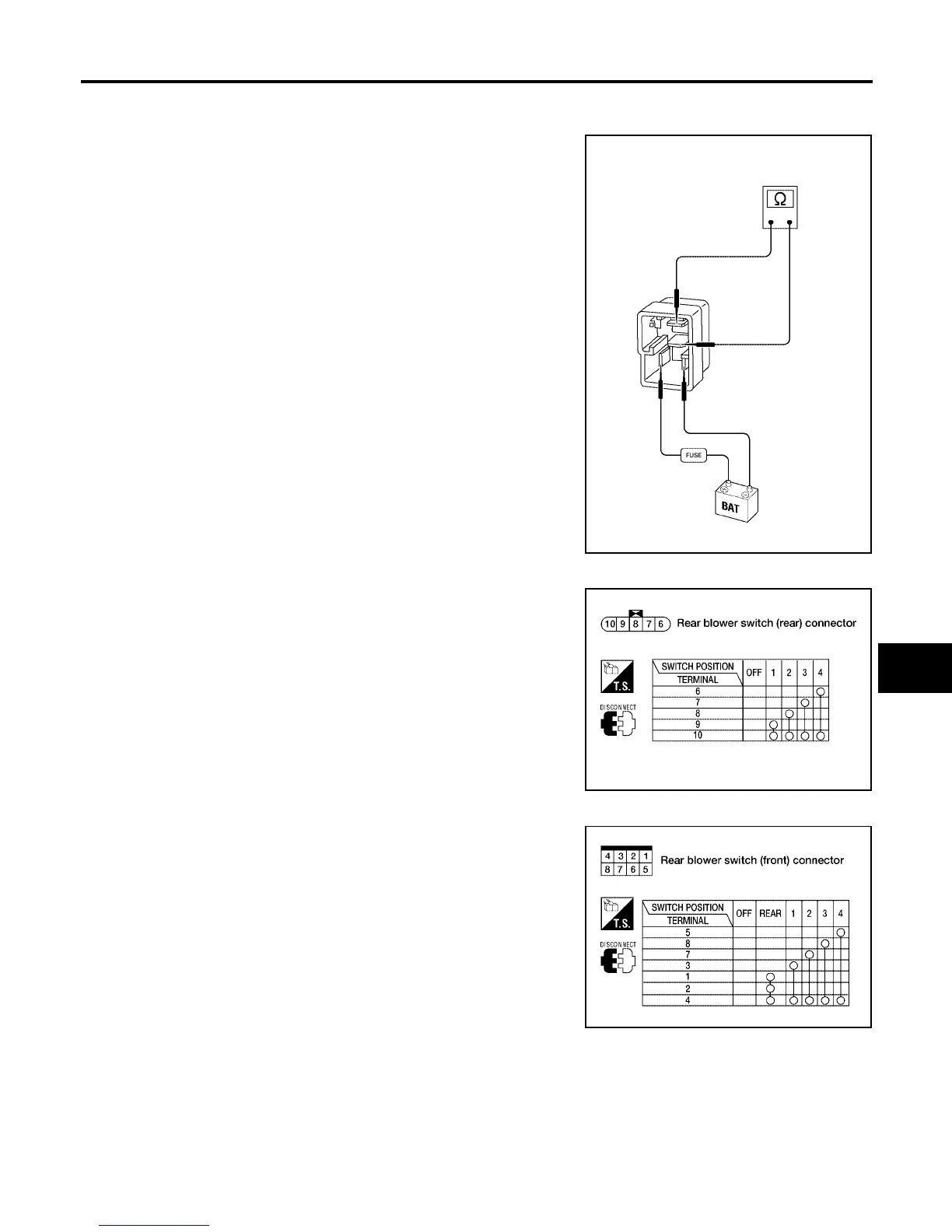

Rear Blower Motor Relay
Check circuit continuity between terminals by supplying 12 volts and
ground to coil side terminals of relays.
Rear Blower Switch (Rear)
Check continuity between terminals at each switch position.
Rear Blower Switch (Front)
Check continuity between terminals at each switch position.
WJIA0973E
LJIA0113E
LJIA0114E
