BLOWER MOTOR

MTC-119

MTC

Revision: January 2005 2004 Quest

BLOWER MOTOR PFP:27226

Removal and Installation EJS004E2

FRONT BLOWER MOTOR

Front Blower Motor

Removal

1. Remove the combination meter. Refer to IP-12, "Combination Meter" .

2. Remove the defroster duct. Refer to MTC-142, "

DEFROSTER DUCT" .

3. Remove the front blower motor.

Installation

Installation is in the reverse order of removal.

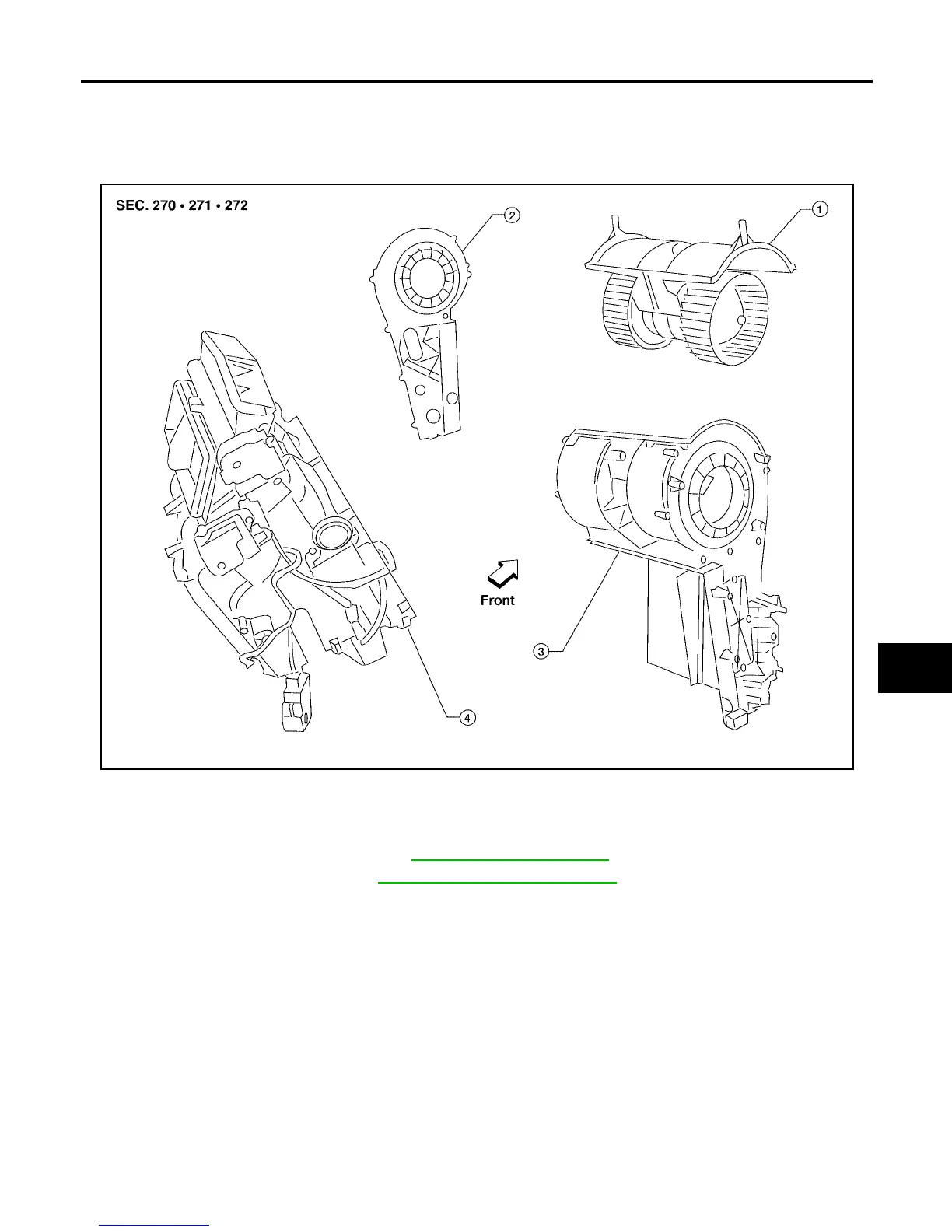

LJIA0017E

1. Front blower motor 2. Blower motor side cover 3. Blower motor case

4. Heater core and evaporator case
